8-62 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly
Replacement Note

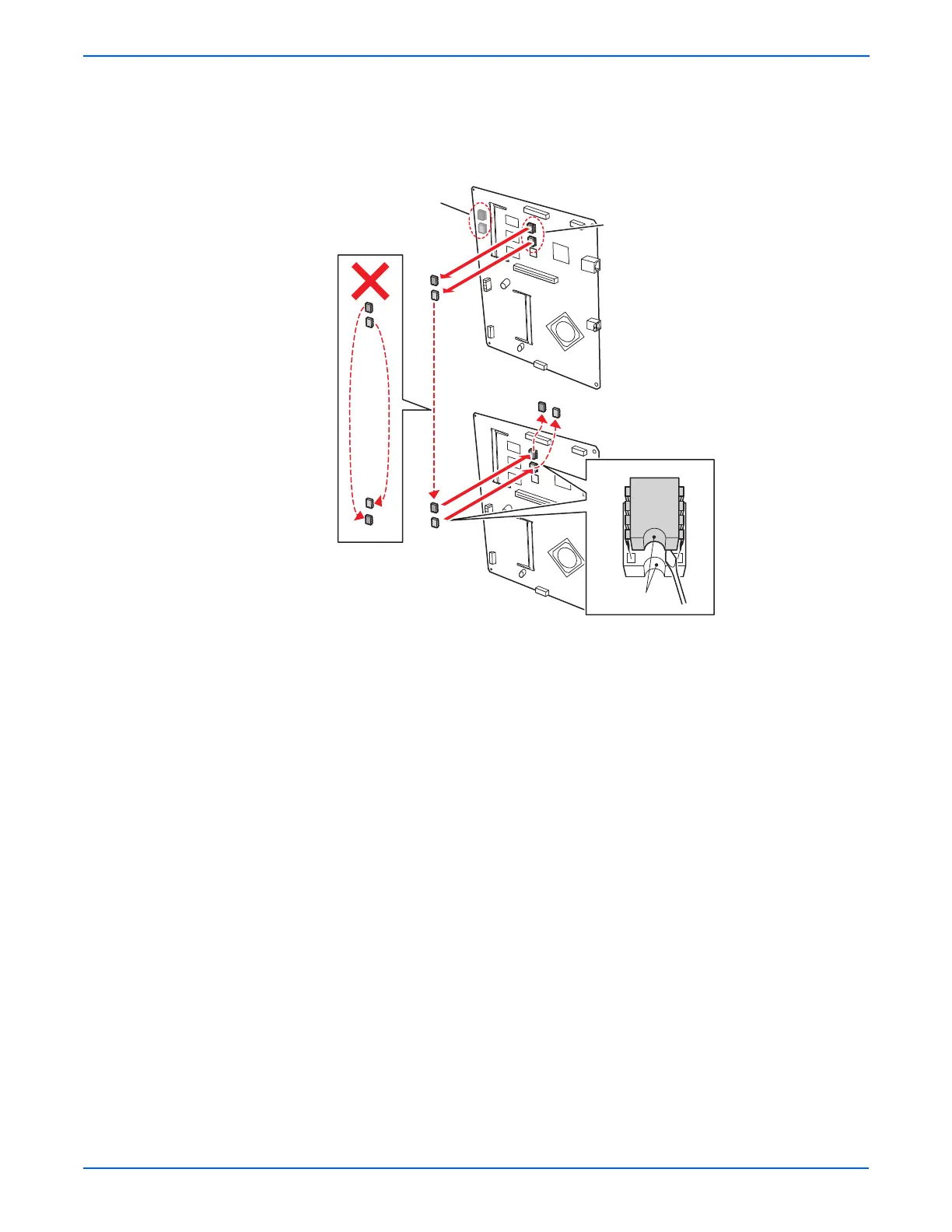

When installing a new I/P Board, move the NVRAM chips from the old
I/P Board to the new I/P Board. Carefully check the correct location
and orientation of each NVRAM chip when installing.
6125 NVRAM Location
6130 NVRAM Location
Notch
s6130-169
