Phaser 6125/6130 Color Laser Printer Service Manual 8-19
Service Parts Disassembly
Front Cover
(PL1.1.7)
1. Remove the Right Side Cover (page 8-16).
2. Remove the Left Side Cover (page 8-17).
3. Remove the Paper Tray.

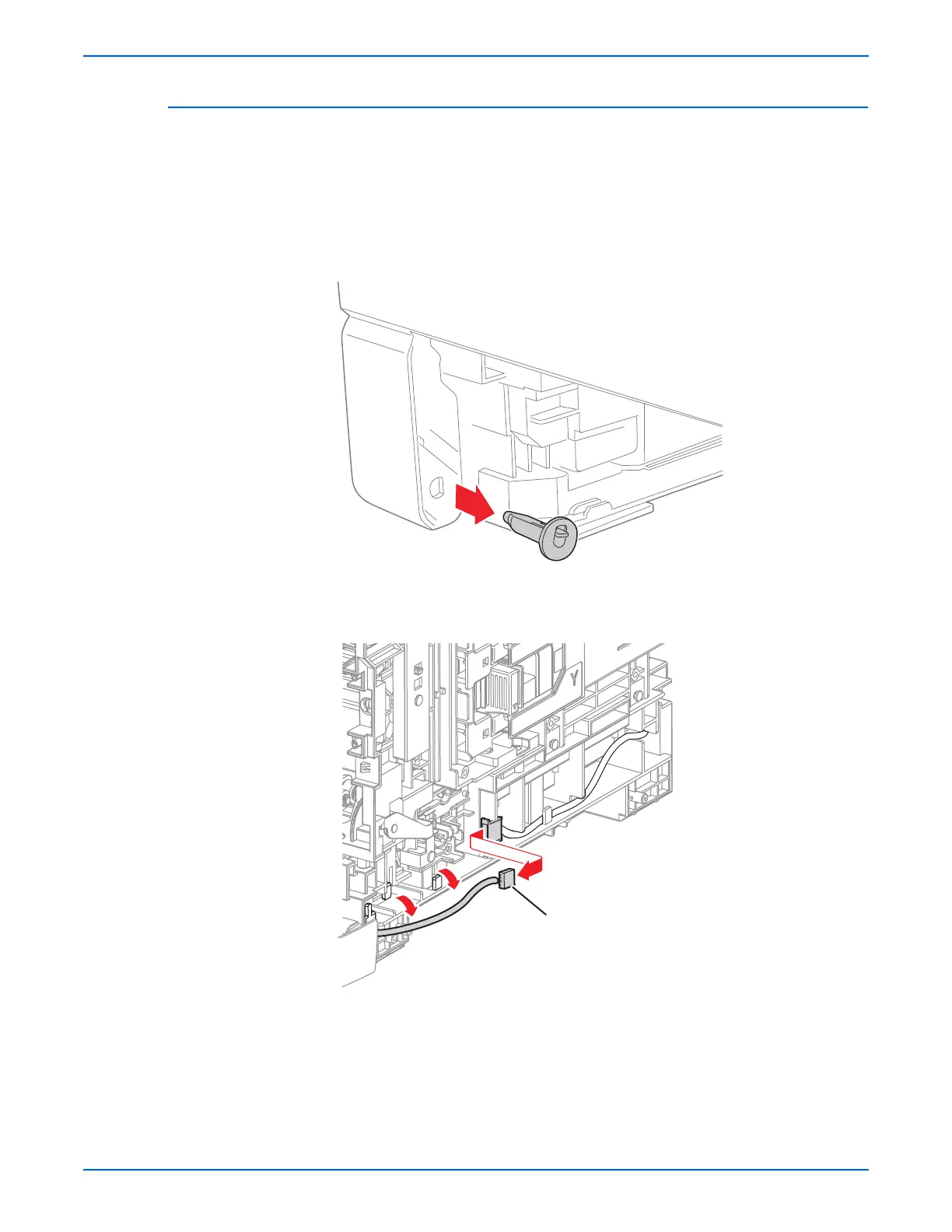

4. Remove the Left and Right Pivot Shafts. Release the latch in the shaft
and pull it out of the printer.
5. Release the Control Panel Harness from the cable restraints in the frame.
6. Release the Control Panel Harness connector from the rib of the printer,
and disconnect connector P/J2900 of the B Harness.
s6130-147
To Next Page
