Xerox Phaser 6125 Service Manual

Phaser 6125/6130 Color Laser Printer Service Manual 8-47
Service Parts Disassembly
Separate Upper and Lower Assemblies
While this major procedure is not connected to a specific part or parts list, it is
a necessary pre-requisite for removing the HVPS or the Feeder Assembly. As
few parts as possible are removed from the upper assembly that will allow the
assemblies to separate.
1. Remove the I/P Board Cage (page 8-44).
2. Remove the Drive Clutch Kit (page 8-21).

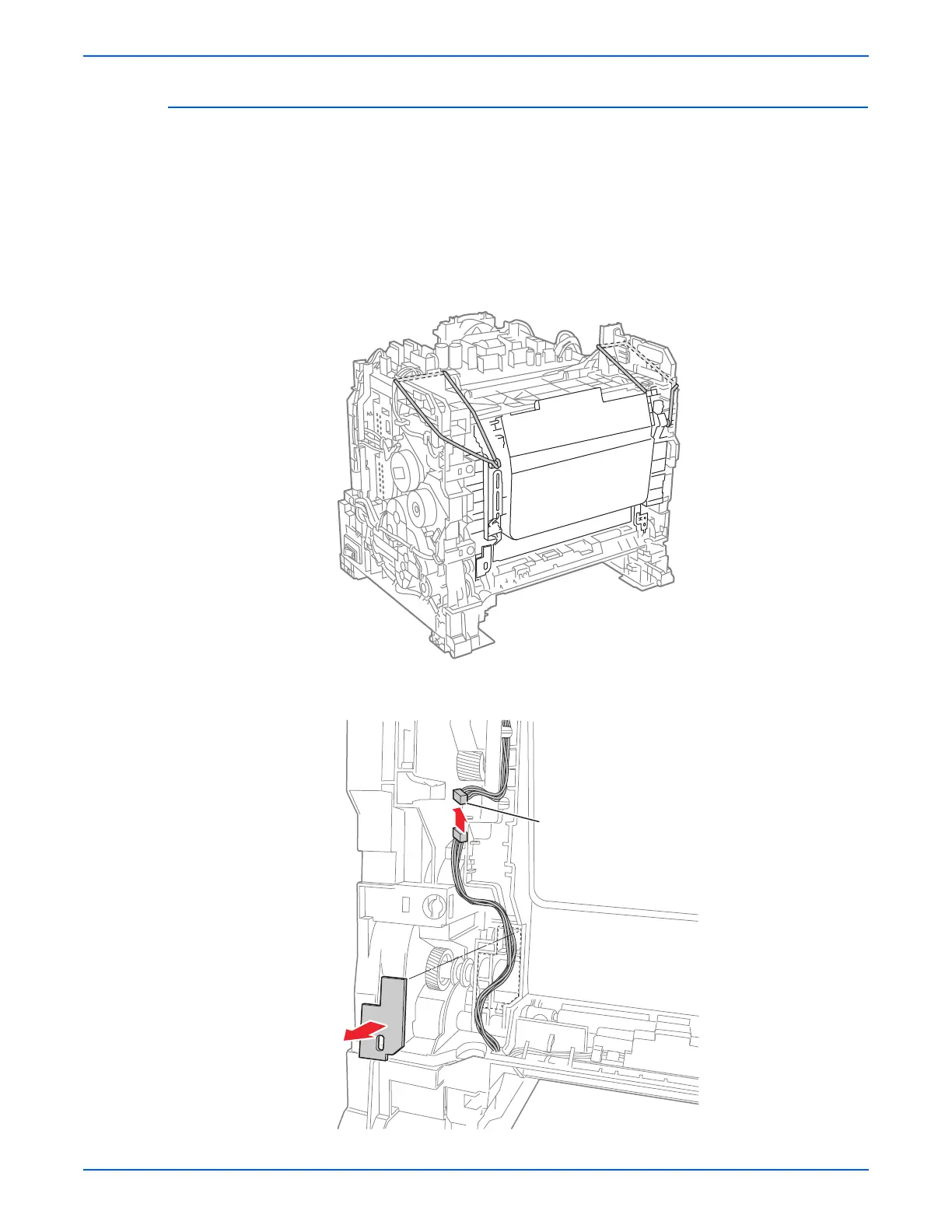

3. Remove the Front Cover (page 8-19). Use rubber bands to secure the
Transfer Unit in the upright position, as shown.
4. Disconnect the plug (P/J281) on the Transfer Unit, then remove the cover
from the harness guide, and release the harness wires from the guide.
s6130-111
s6130-112
P/J281
