2-14 Phaser 6125/6130 Color Laser Printer Service Manual
Theory of Operation
Paper Path Components

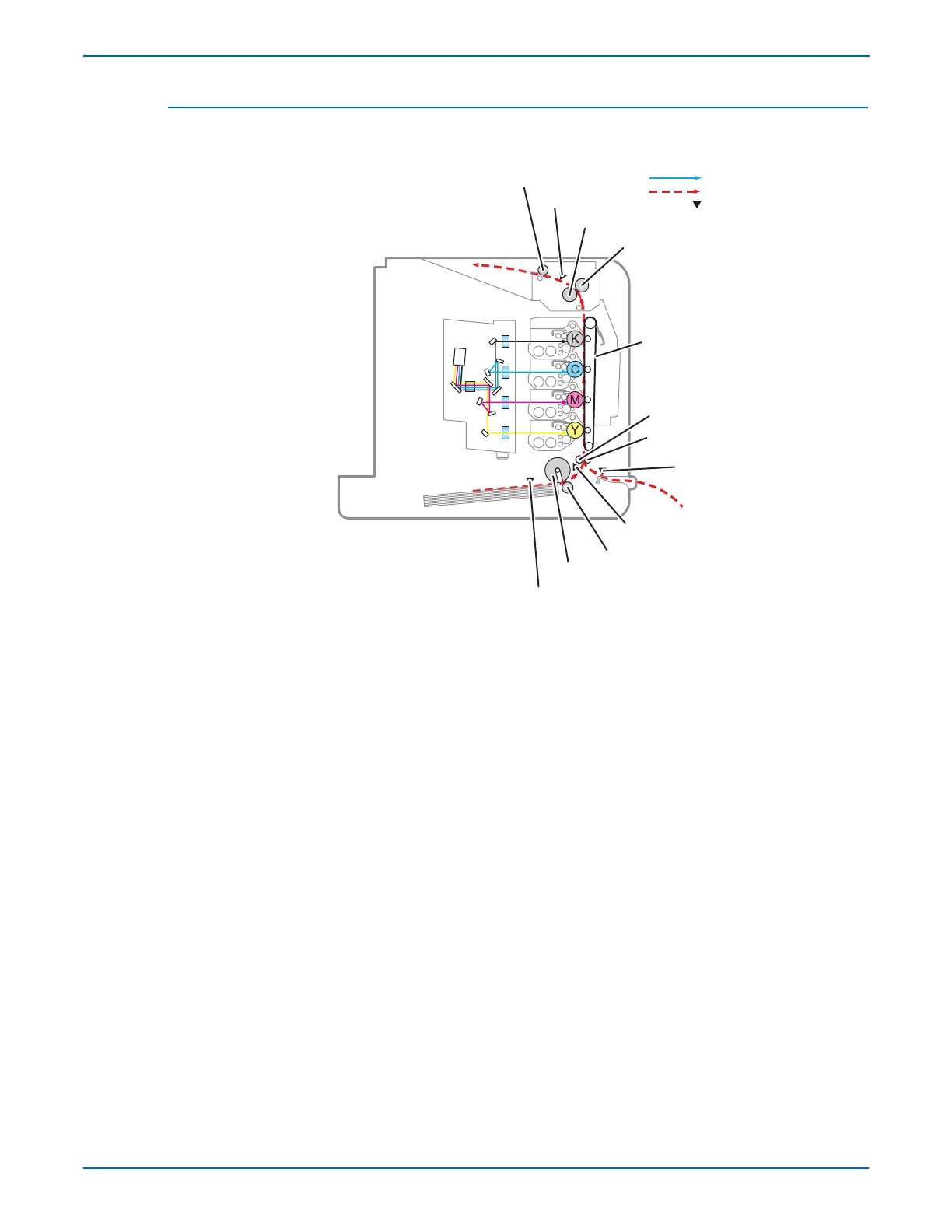

Paper path components for the printer are shown in the following figure.
s6130-009
: Laser Beam
: Paper Transfer
: Paper Sensors
Exit Roller
Heat Roller
Pressure Belt
Belt
Rubber Registration Roller
Metal Registration Roller
Exit Sensor
Manual Feed
No Paper Sensor
Registration Sensor
Separator Roller
Feed Roller
Tray No Paper Sensor
