8-18 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly

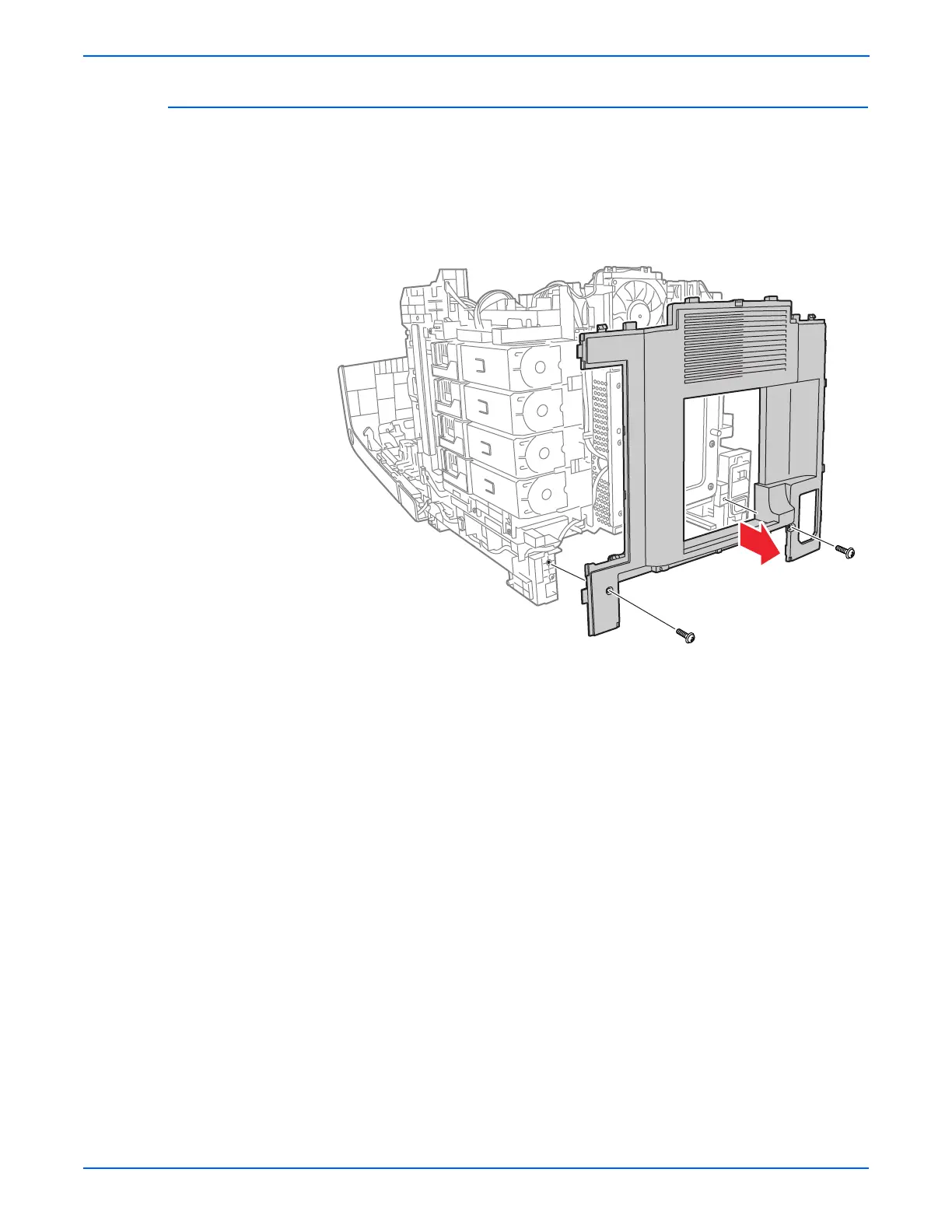

Rear Cover
(PL1.1.3)
1. Remove the Right Side Cover (page 8-16).
2. Remove the Left Side Cover (page 8-17).
3. Remove 2 screws (8 mm) securing the Rear Cover.
4. Remove the Rear Cover from the printer.
s6130-145
To Next Page
