Phaser 6125/6130 Color Laser Printer Service Manual 2-3
Theory of Operation

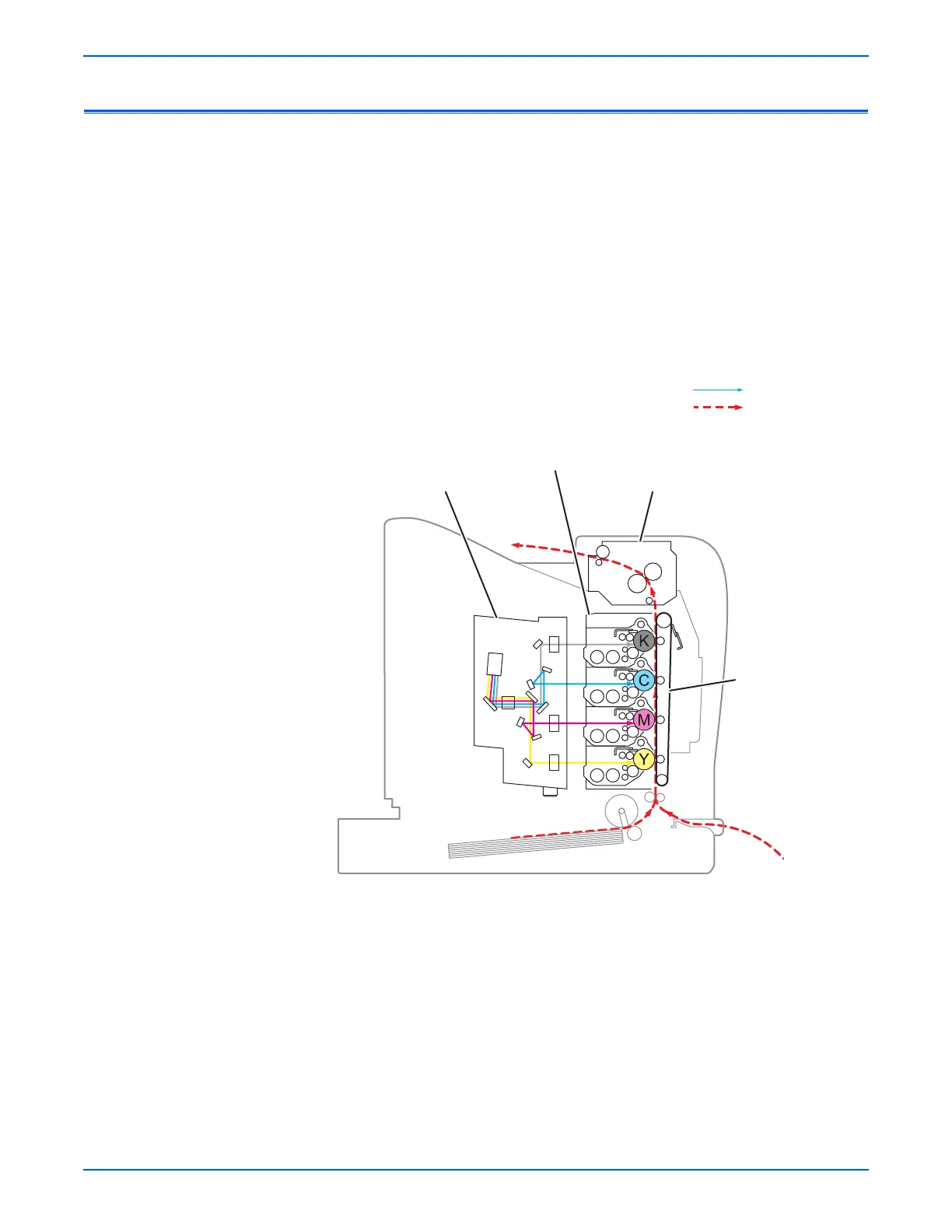

Printing Process
The print process consists of the following steps:
1. Charging – The Drum surfaces are charged with electricity.
2. Exposure – The Drums are exposed to laser beams.
3. Development – Image is developed with toner.
4. Transfer (Drum ---> Paper) – Four color finished toner image on the
Drums is transferred onto the paper.
5. Cleaning (Imaging Unit) – Excess toner is removed from the Drum and
BCR.
6. Excess Toner Collection – Excess toner is moved to the collection box.
7. Fusing – The Fuser applies toner on to paper using heat and pressure.
s6130-002
Transfer Belt
[(4) Transfer]
[(7) Cleaning]
Imaging Unit
[(1) Charge]
[(3) Development]
[(4) Transfer]
[(5) Cleaning]
Fuser
[(6) Fusing]
: Laser Beam
: Paper Transfer
Laser Unit
[(2) Exposure]

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
