Phaser 6125/6130 Color Laser Printer Service Manual 8-7
Service Parts Disassembly
Maintenance Items and Consumables
Maintenance items include the Separator Roller in the Paper Tray, Imaging
Unit, and Fuser. Consumables consist of the four Toner Cartridges.
Separator Roller
(PL2.1.5)

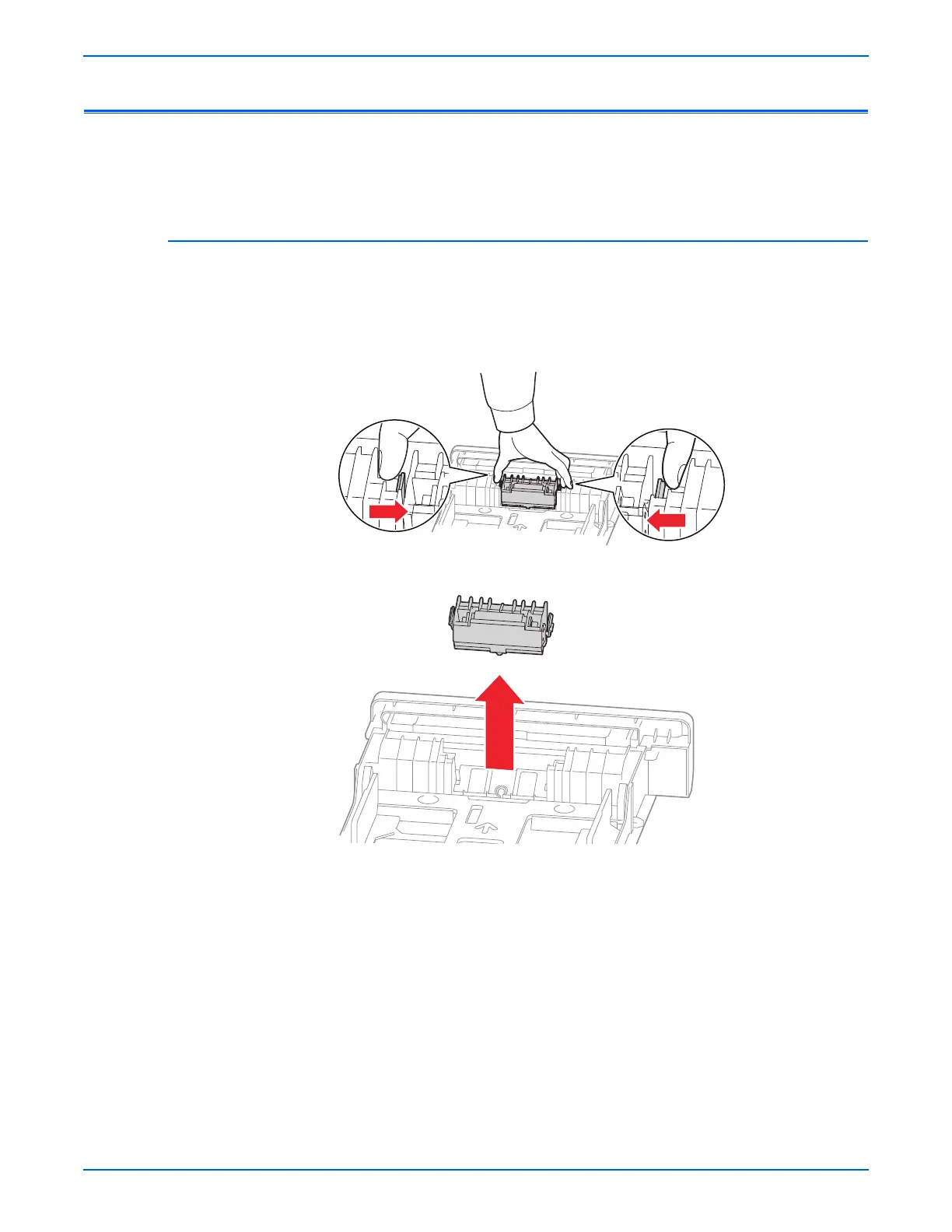

1. Remove the Paper Tray completely from the printer.
2. Hold the tray and pinch the left and right hooks of the Separator Roller.
Swing the Separator Roller to release the two hooks.
3. Pull the Separator Roller up to remove it from the Tray.
