Xerox Phaser 6125 Service Manual

8-22 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly

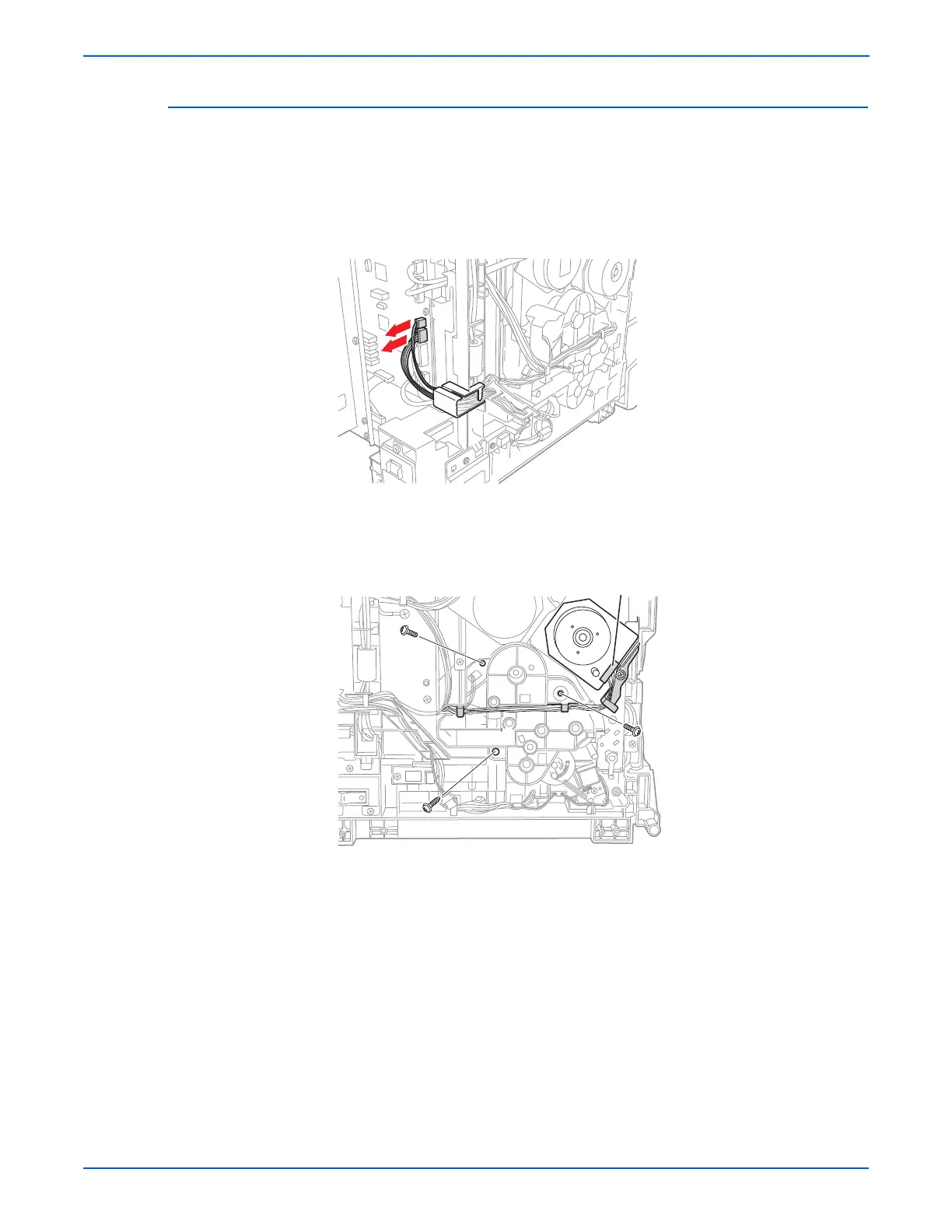

Feed Drive Assembly
(PL7.1.4)
1. Remove all covers except the Front Cover.
2. Remove the Drive Clutch Kit (page 8-21).
3. Unplug two connectors, P/J24 and 26, from the MCU Board; release the
harness from the AC Harness Guide.
4. Unplug the Main Drive Assembly connector (on the motor circuit board)
and release the harness from the hooks on the Feed Drive Assembly.
5. Remove the three screws (one silver, M4, 6mm; one silver, M3, 6mm; one
silver, tap, 8mm) that attach the Feed Drive Assembly to the printer.
Note
When performing the next step, make sure the coupling gear remains
on the shaft of the Feed Drive Assembly. Take care not to drop the
gear to inside.
6. Remove the Feed Drive Assembly from the printer.
s6130-085
s6130-086
6mm
M4
Tap, 8mm
6mm
M3
P/J211

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
