Phaser 6125/6130 Color Laser Printer Service Manual 8-23
Service Parts Disassembly

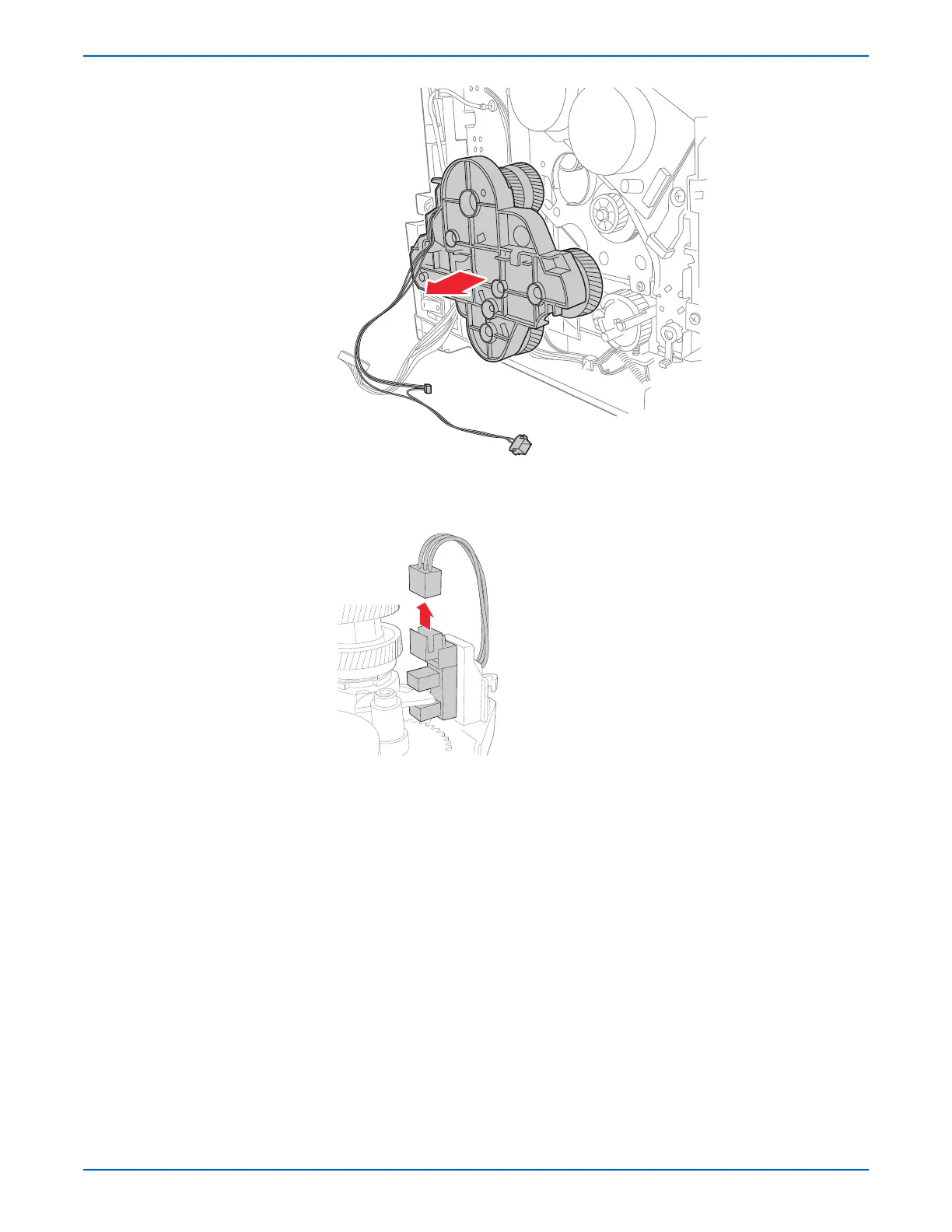

7. Unplug the color mode sensor connector
(P/J261) from the Feed Drive Assembly and release the Color Mode
Sensor Harness from the hook on the Feed Drive Assembly.
The screw holes in the assembly are marked with “M” and “T” to
indicate where machine (M) or tapping (T) screws are used.
s6130-148
To Next Page
