5-16 Phaser 6125/6130 Color Laser Printer Service Manual
Print-Quality Troubleshooting
Specifications
The following charts provide specifications for Skew, Parallelism, Linearity,
Perpendicularity, Magnification Error, Registration, and Guaranteed and
Maximum Print Areas.
Skew
■ 180 mm ± 1.1 mm

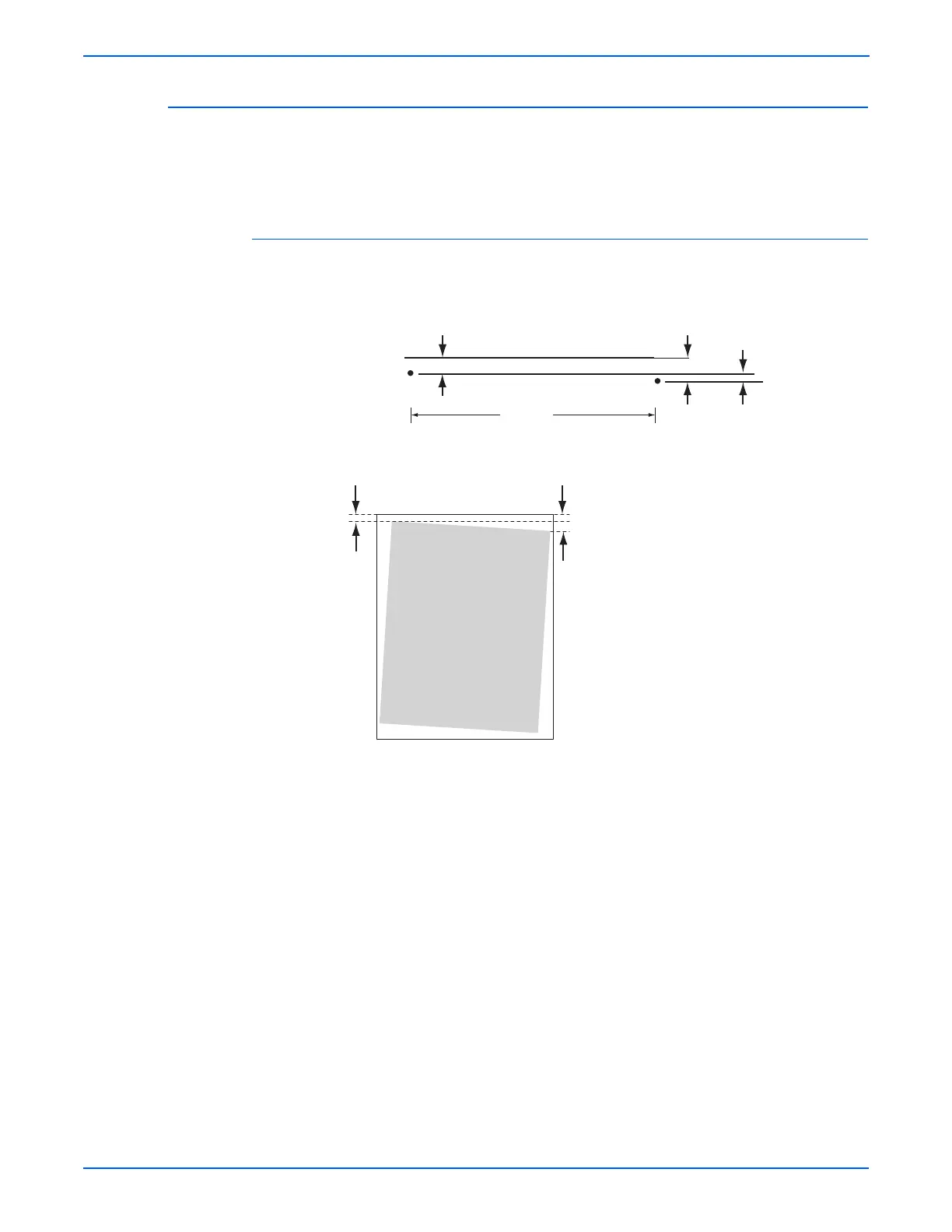

To measure Skew: Measure the margin of the paper at the leading edge of
each corner, and then take the difference between them.
Lead Edge
A
a = | T/E - C |
C
b = | T/E - D |
Skew = a - b
(within ±1.1 mm)
180 mm
s6130-204
Skew 3
B
A
Image Area
