8-38 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly
Right Imaging Unit Restraint Block
(PL4.1.97)
1. Remove the Right Side Cover (page 8-16).
The following procedure applies to both the upper and lower Imaging
Unit Restraint Blocks.

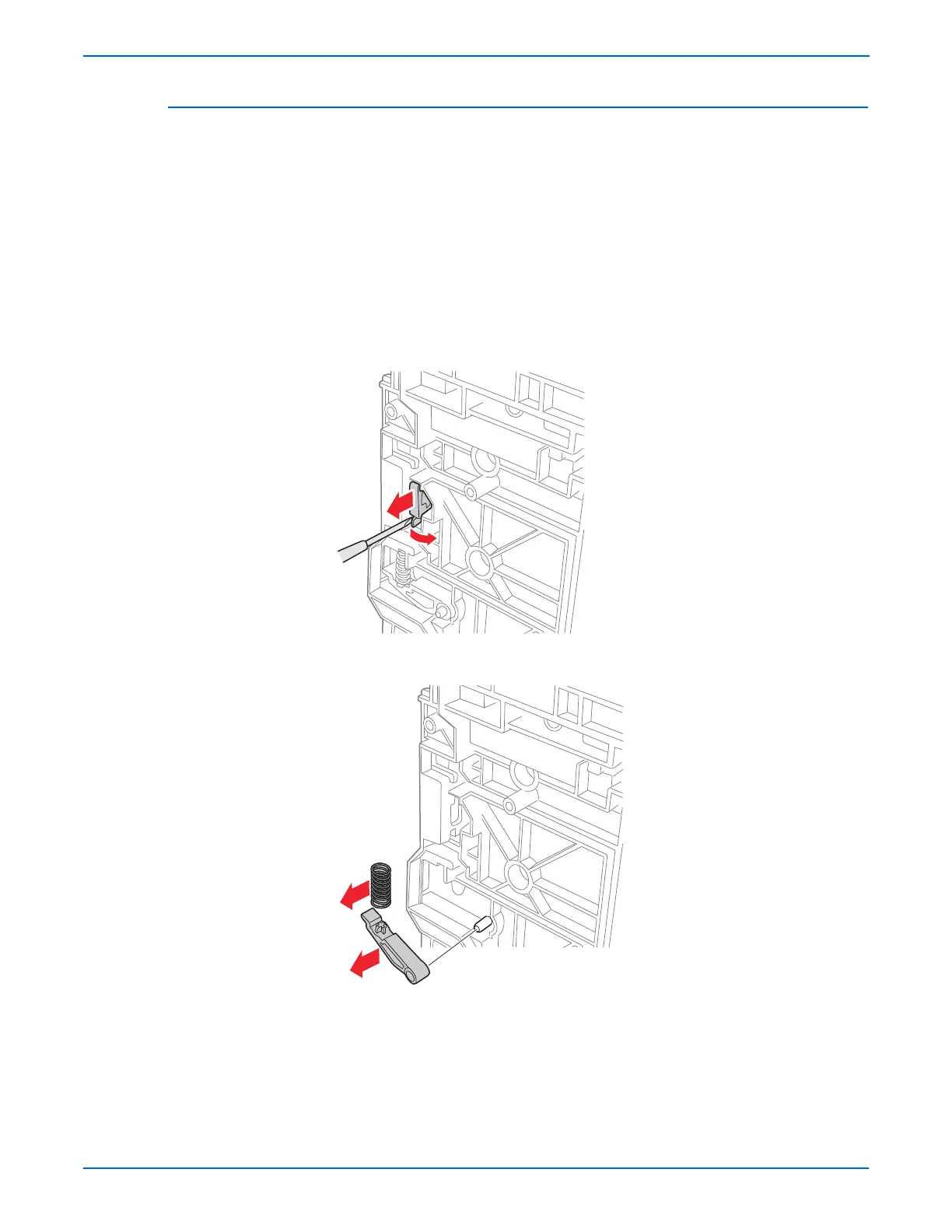

2. Use a miniature screwdriver to release the hook on the Imaging Unit
Restraint Block.
3. Remove the Imaging Unit Restraint Block from the printer.
4. Remove the Imaging Unit Spring from the printer.
5. Rotate the Imaging Unit Lever slightly and remove it from the printer.
