8-60 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly
Image Processor Board
(PL8.1.7)

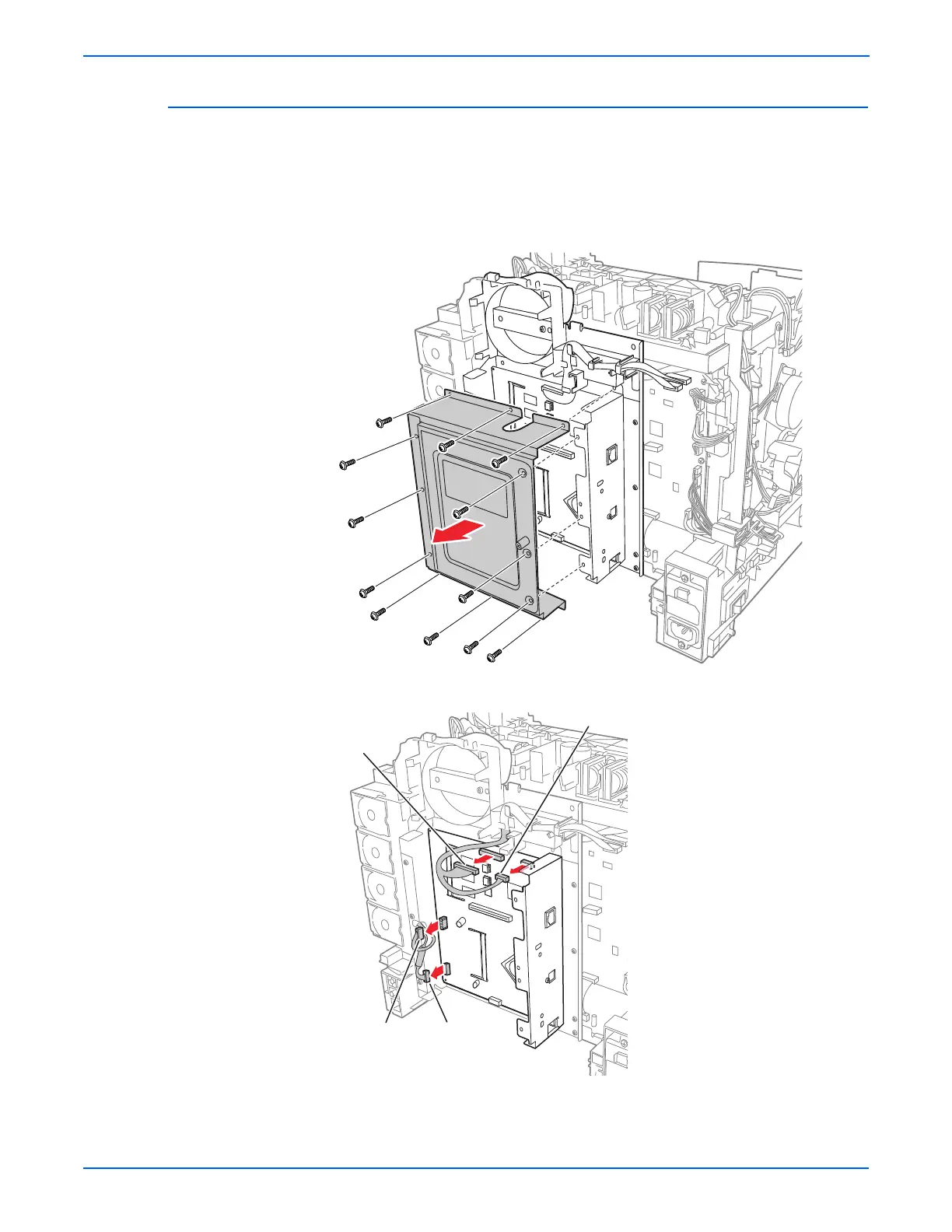

1. Remove the Fan (page 8-56).
2. Remove 12 screws for the 6130 or 8 screws for the 6125 (silver, 6mm)
that attach the Image Processor Board Shield and remove it from the
printer.
3. Unplug all connectors from the Image Processor Board.
s6130-168
P/J101
P/J111
P/J401
P/J29
To Next Page
