8-50 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly

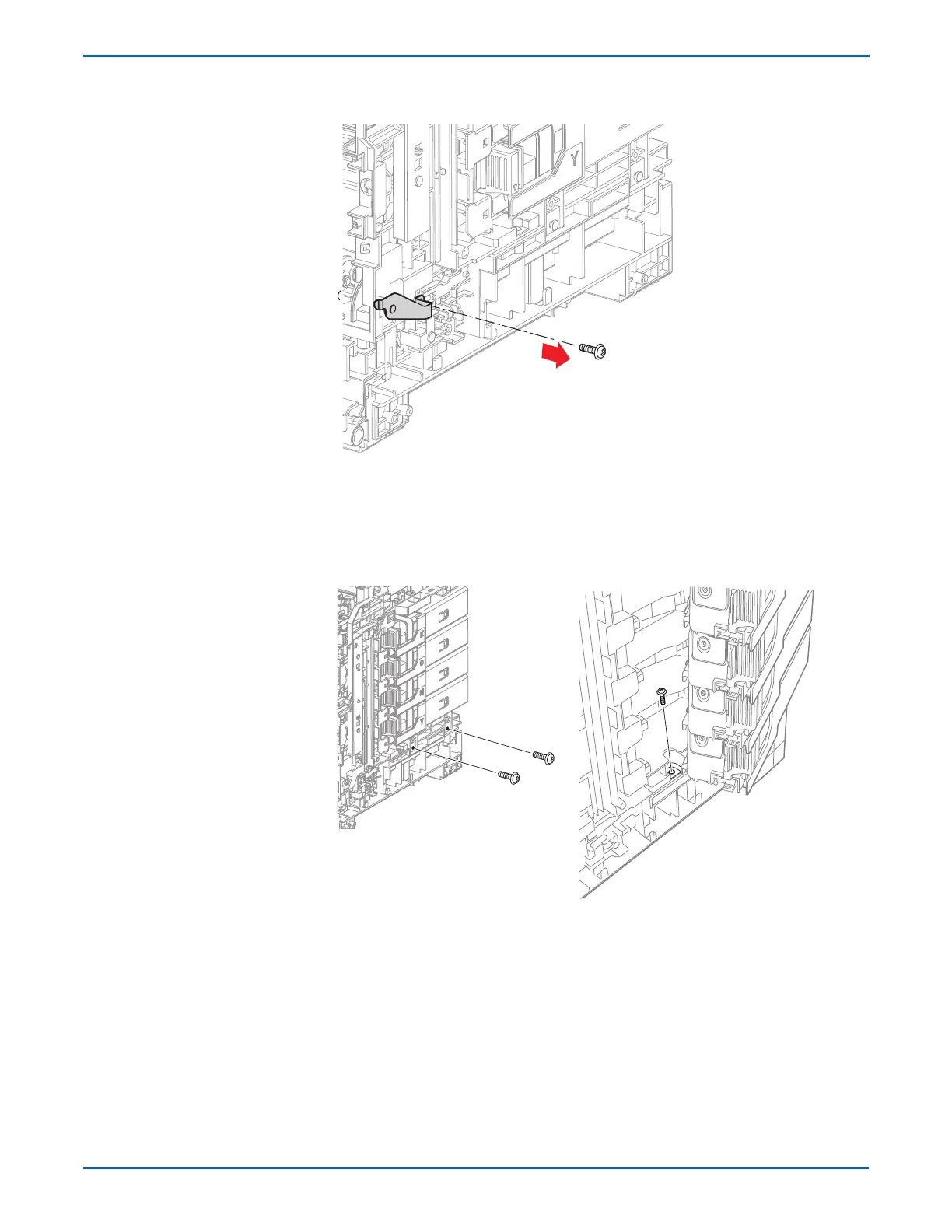

13. Remove the screw (silver, tap, 8mm) that attaches the right Transfer Unit
Pivot Shaft to the Lower Assembly, but do not remove the Pivot Shaft.
14. Remove the two screws that attach the bottom part of the Dispenser
Assembly to the Lower Assembly.
15. Unlock the Toner Cartridges and open the Toner Cartridge Holders (K),
(C), (M), and (Y); remove the screw (silver, tap, 8mm) that attaches the
right side of the printer frame. Close and lock the Toner Cartridges after
removing the screw.
To Next Page
