Xerox Phaser 6125 Service Manual

Phaser 6125/6130 Color Laser Printer Service Manual 10-7

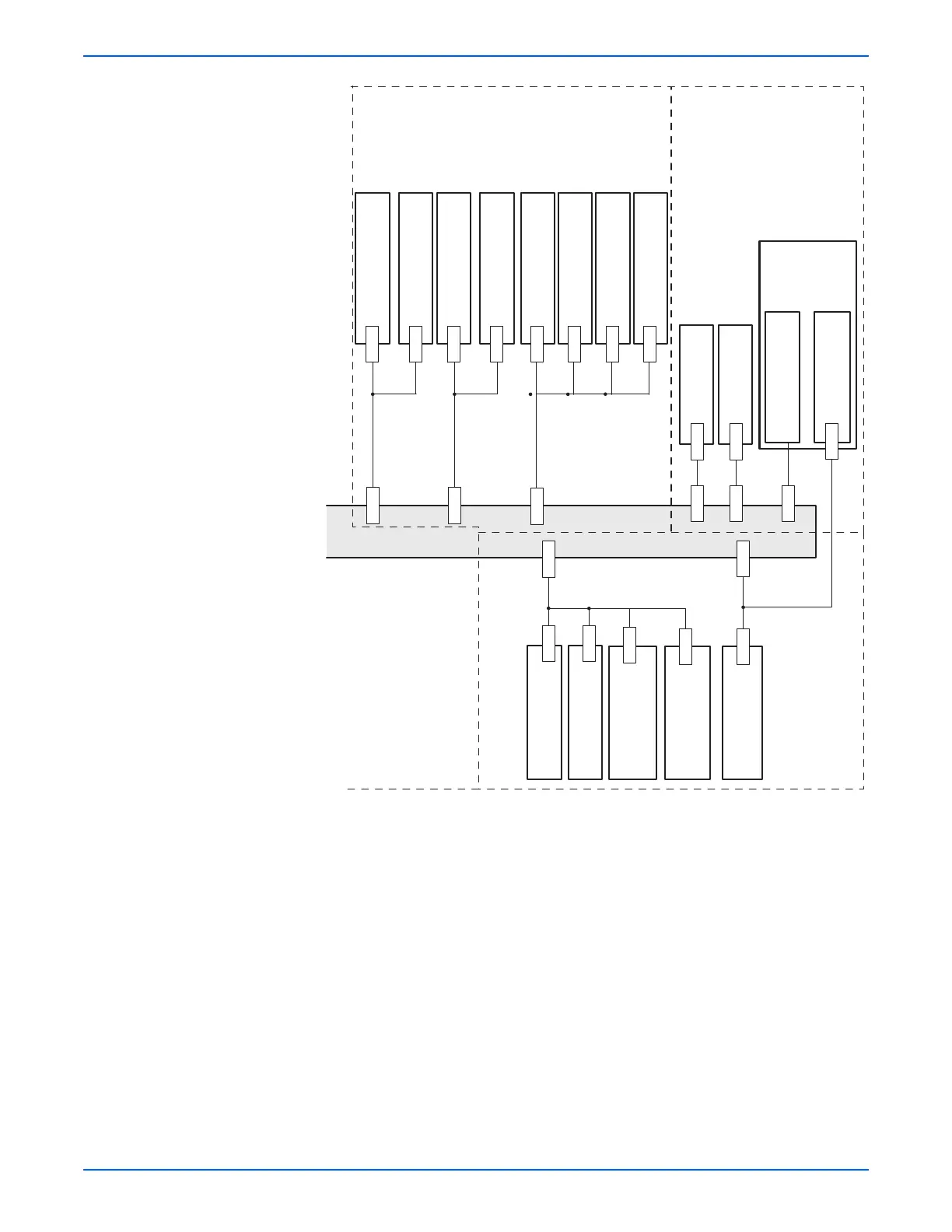

Plug/Jack and Wiring Diagrams
MCU Board PL8.2.13
Feed Drive Assembly PL7.1.4
Drive Assy Main PL7.1.2 Drive Assy Sub PL7.1.1
P/J211
P/J21
P/J221
P/J22
K Mode Solenoid K Mode Sensor
P/J24
P/J261
P/J26
Drive Clutch PL3.1.1
P/J262
Manual Feed No Paper Sensor PL3.2.13
P/J233
Tray No Paper Sensor PL3.2.13
P/J234
CRUM Connector (K) PL5.1.14
P/J314
CRUM Connector (C) PL5.1.14
P/J313
CRUM Connector (M) PL5.1.14
P/J312
CRUM Connector (Y) PL5.1.14
P/J311
P/J31
Dispense Motor (Y) PL5.1.3
P/J181
P/J18
Dispense Motor (M) PL5.1.3
P/J182
Dispense Motor (C) PL5.1.3
P/J191
Dispense Motor (K) PL5.1.3
P/J192
P/J19
Feed Solenoid PL3.1.11
P/J23P/J231
Registration Sensor PL3.2.13
P/J232
s6130-058
2 Feeder, Manual Feed, & Registration
3 Drive
7 Developer

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
