Xerox Phaser 6125 Service Manual

Phaser 6125/6130 Color Laser Printer Service Manual 2-41
Theory of Operation

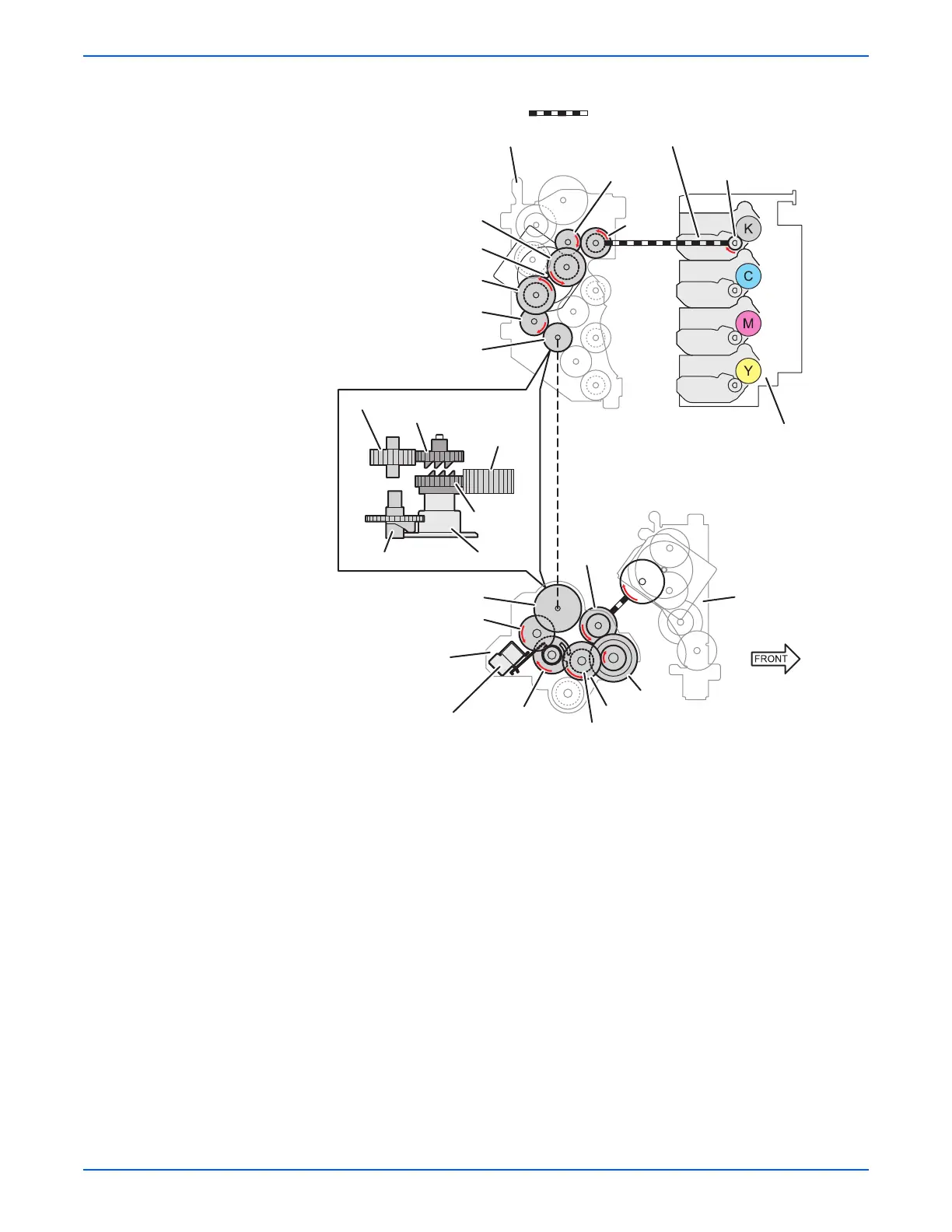

s6130-143
Gear DK
Gear D1
Sub Motor
Gear D1
Gear D2
Gear D5
Magnet Gear (K)
[ Magnet Roll (K) ]
Sub Drive
Print Cartridge
Drive
HSG Developer (K)
Gear D3 In
Gear D3 Out
Gear P2
Gear P3
Color Mode
Switching Solenoid
Gear P4
Gear C
Cam C
Flange D3
Gear P4-2
Imaging Unit
Main Drive
Cam C
Flange D3
Gear D2
Gear D4
Gear D3 In
Gear D3 Out
: Indicates The Engagement Of Gears.
[ Name Of Moving Parts ]
[ Black And White Mode ]

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
