2-48 Phaser 6125/6130 Color Laser Printer Service Manual

Theory of Operation

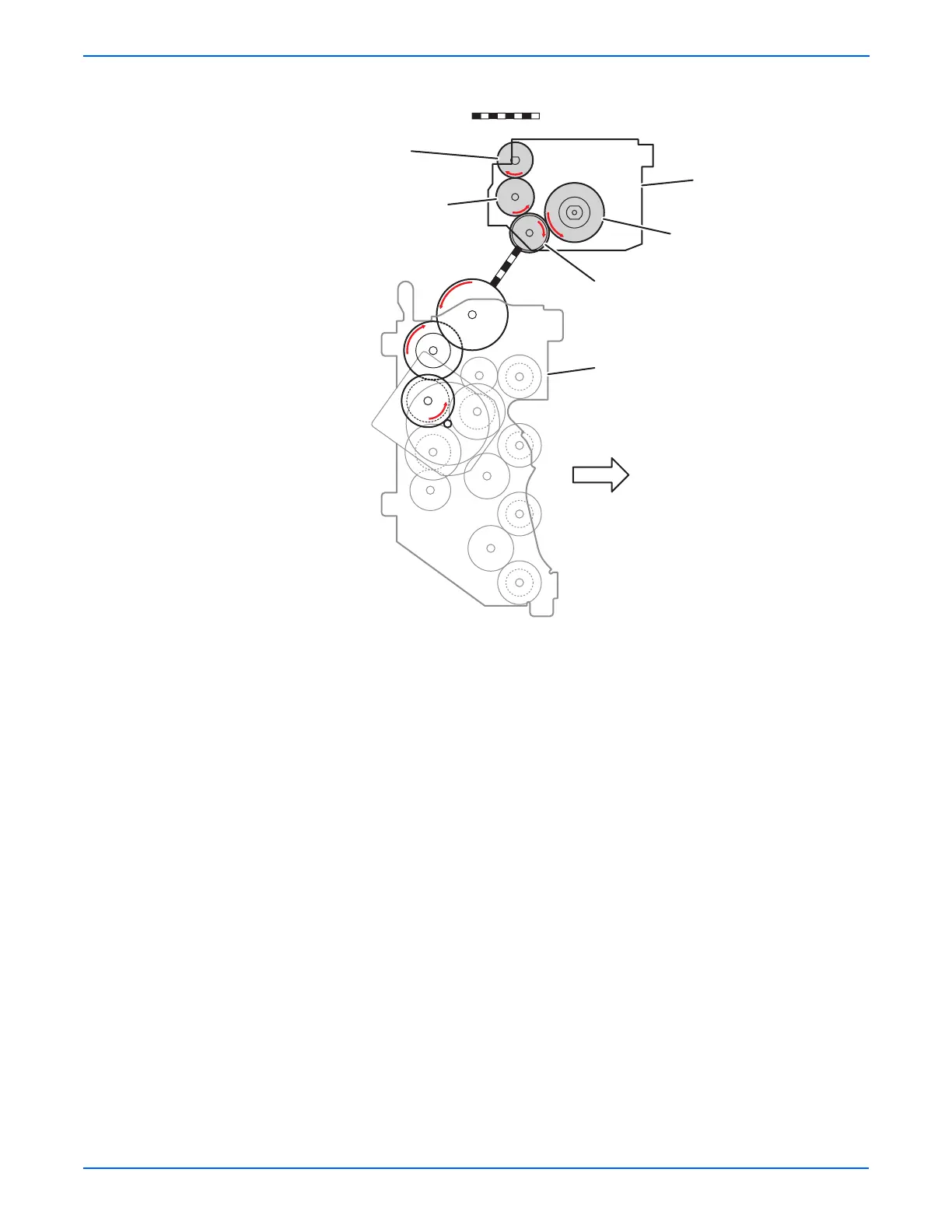

s6130-037

Front

Sub Drive

Fuser

Heat Roller Idler Gear

Heat Roller Gear

[ Heat Roller ]

Exit Idler Gear

Exit Gear

[ Exit Roller ]

Fuser Drive

: Indicates The Engagement Of Gears

[ Name Of Moving Parts ]
