Xerox Phaser 8400

Service Parts Disassembly 8-39

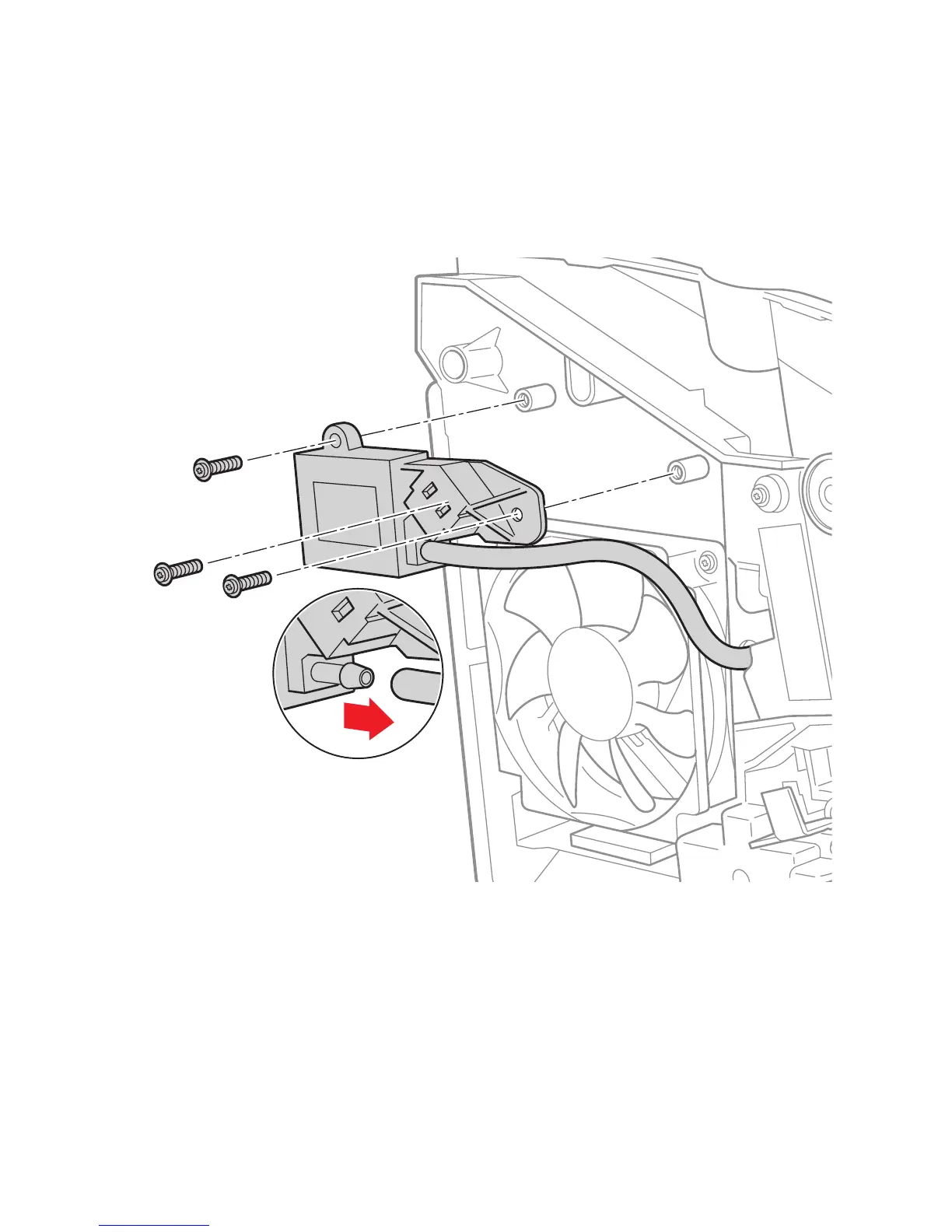

Purge Pressure Pump
(PL 2.7)
1. Remove the left side cover (see "Left Side Cover" on page 8-7).
2. Disconnect the air hose from the Purge Pressure Pump.
3. Disconnect the wiring harness from the Purge Pressure Pump.
4. Remove three screws and remove the Purge Pressure Pump.
s8500-097
