Xerox Phaser 8400

Service Parts Disassembly 8-25
Duplex Roller
(PL 3.10)
1. Open the Front Door.
2. Remove the upper and lower duplex guides (see page 8-41).

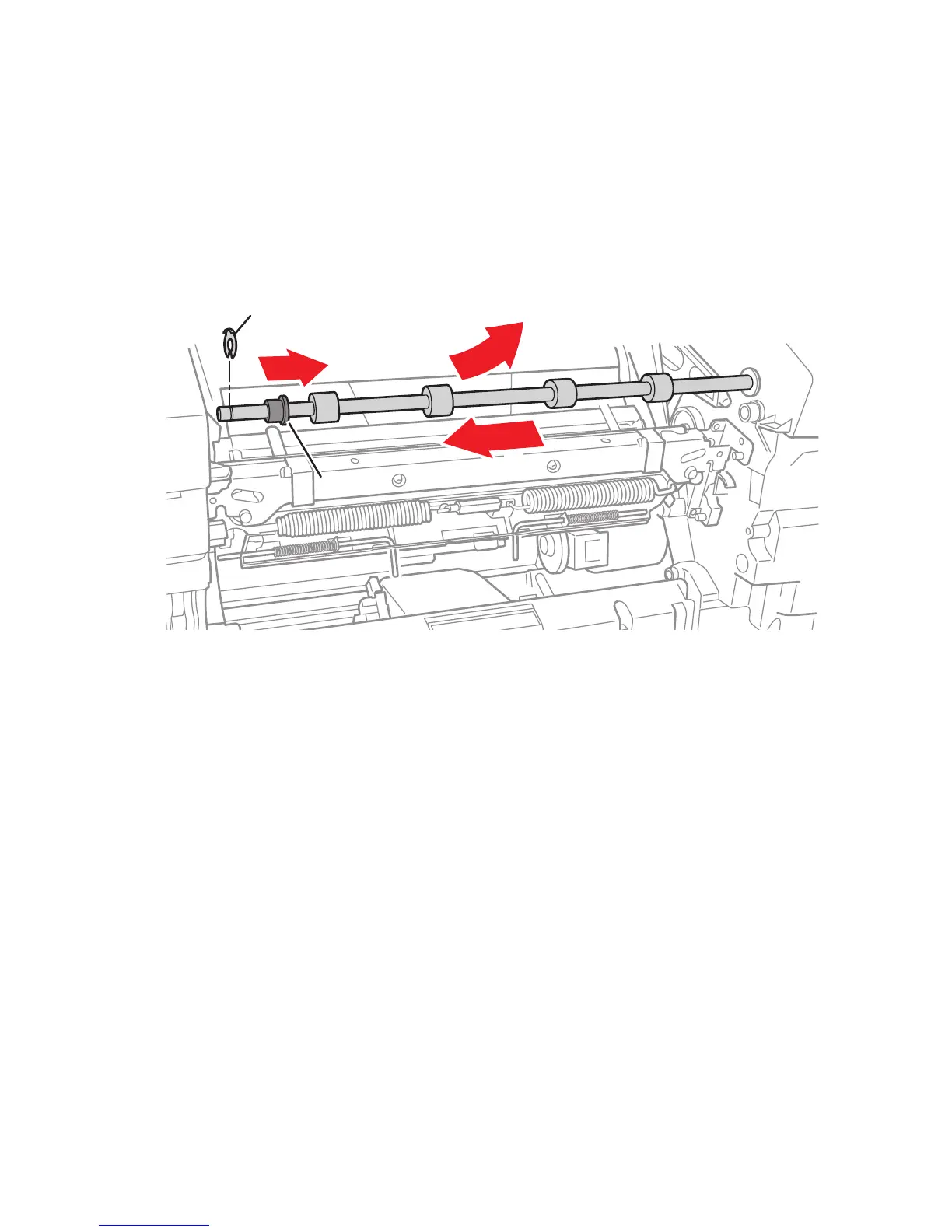

3. Remove the Duplex Roller by removing the left KL-clip on the shaft and sliding
the left side bearing down the shaft toward the right (1). Then slide the shaft
toward the left (2) to free the right end of the shaft. Finally, pull the shaft out
towards the right side of the printer (3).
s8500-086
1
3
2
KL-Clip
Bearing
