Xerox Phaser 8400 Service Manual

4-60 Phaser 8400/8500/8550 Color Printer

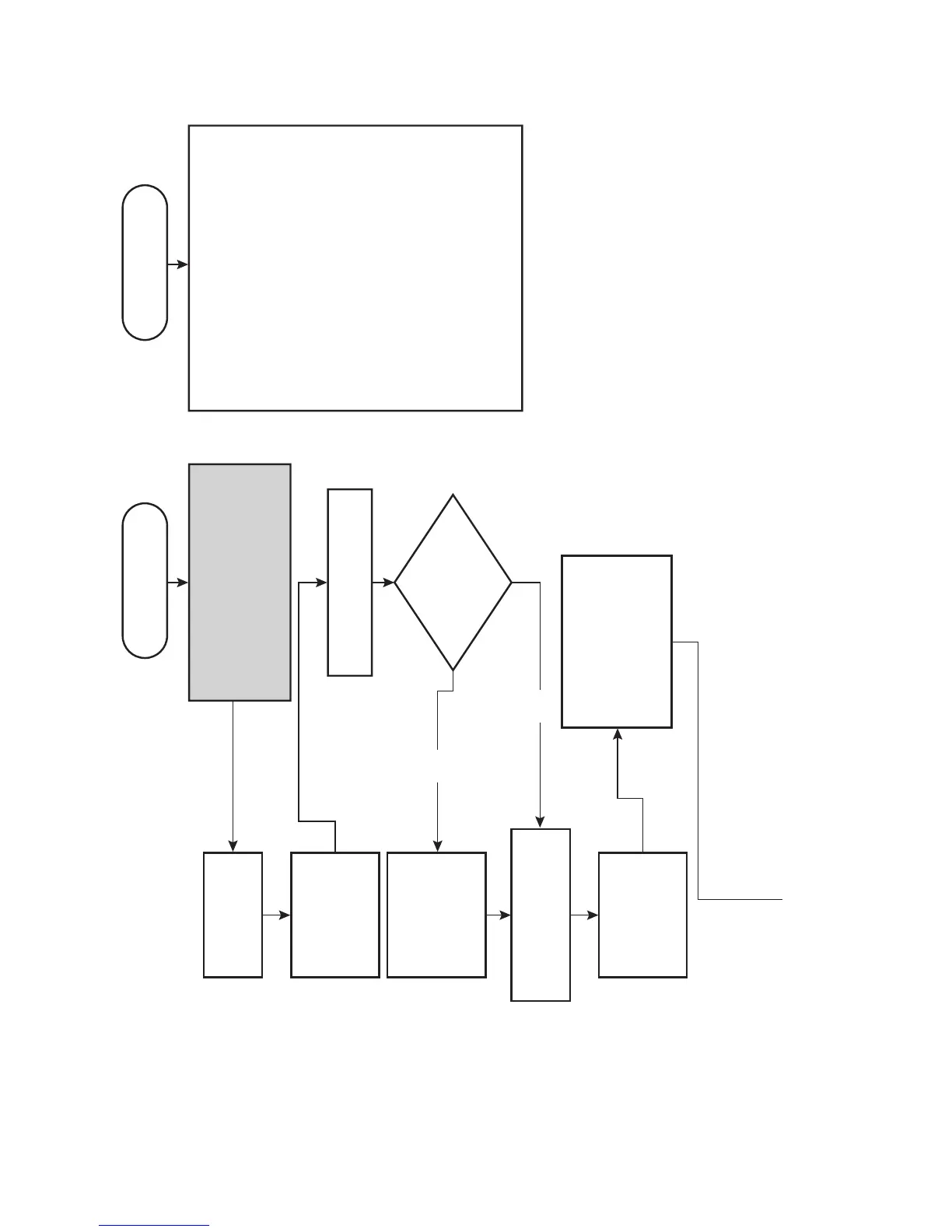

Mechanical Initialization (8400)
Start the Thermals
13,xxx
Unbind Media
Path Motor and
Home the MPT
31,000
Home the Y-Axis
5001, 5004
Wait for the Head
to read
OK_TO_WIPE
Temperatures
13.xxx
Home XA
6000
Move XA to
HEAD TILT
POSITION
6000
Start Mechanical
Recovery
Set FIRMWARE states: CapState = UNKNOWN Head Tilt State = UNKNOWN DmfixState = UNKNOWN YaState = HOMELESS Xa State = HOMELESS
Is the head tilt
Cam engaged
(head tilted?)
Home the CAP/wiper
without disengaging the
Head Tilt Cam
8005, 8007, 8008, 8009
YES
NO
Values in the NVRAM are used to determine if printhead and wiper have contact or if the head was parked on last power down. If printhead and wiper are in contact, the printhead warms first before moving. If the printhead was parked, the printhead is warm before moving to the print position. The dashed line traces what happens if the printhead was parked on last power down. The RED numbers indicate errors that may be displayed at that point in the mech init process.
Mechanical Recovery
POWER ON
s8500-029
