8-54 Phaser 8400/8500/8550 Color Printer
Head Tilt Compound Gear
(PL 4.7)
1. Remove the printhead Assembly (see page 8-12).
2. At the left side of the Printer, remove the KL-clip as shown in the figure below.
3. Remove the waste tray frame, without disconnecting the sensor wiring harness.
4. Reach in to the waste tray cavity and remove the Head Tilt Compound Gear.
Replacement Notes:
Note
On reassembly, the leaf spring on the back side of the chassis must be behind
the gear to engage.
Note
On reassembly, lubricate the curved (cam) surfaces of the gear using a small
quantity of Rheolube 768 grease (P/N 00679900).

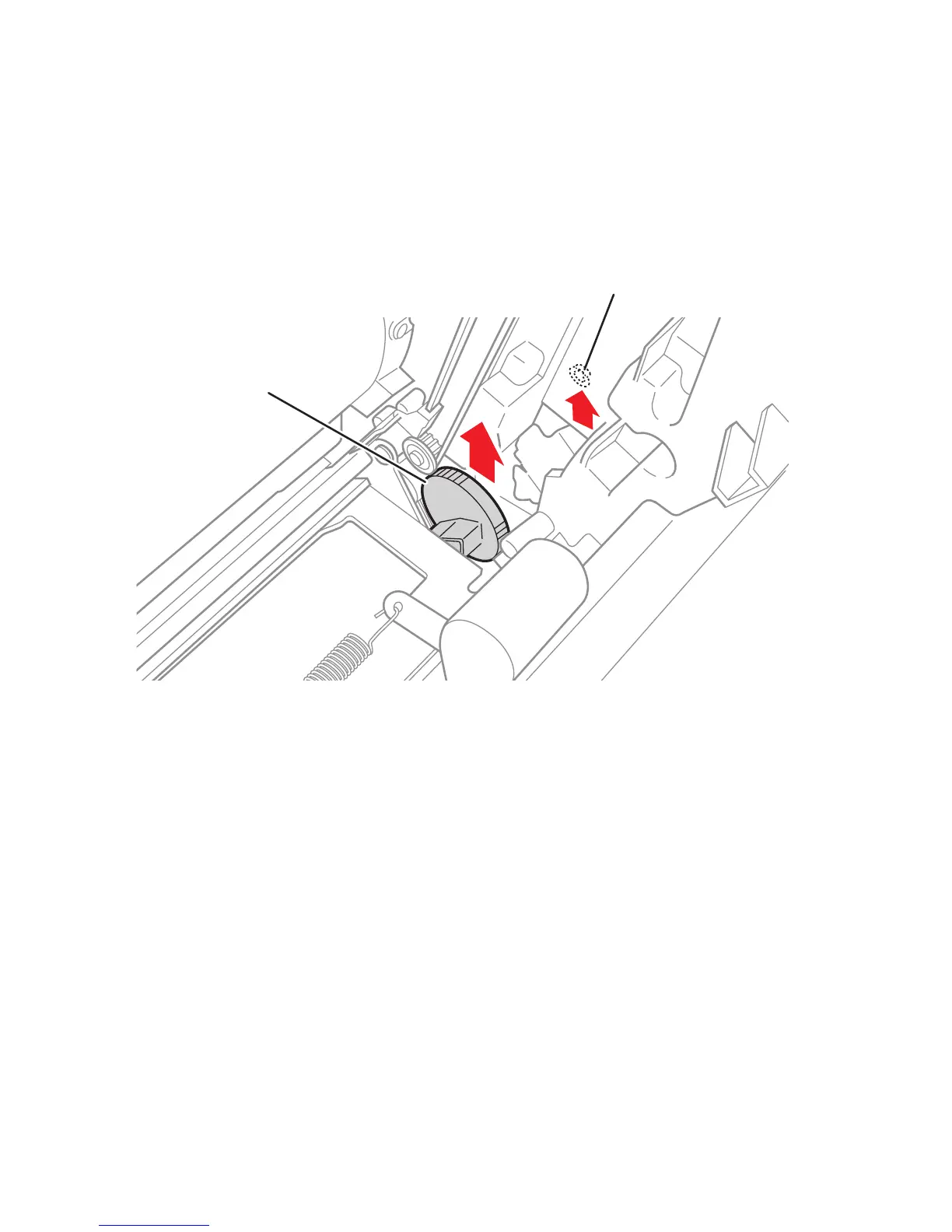

s8500-109
Remove KL-Clip
Head Tilt Compound Gear
