8-20 Phaser 8400/8500/8550 Color Printer
Printhead Wiper
(PL 2.7)
Videos are available with instructions for replacing the printhead
assembly. Videos are located on the Phaser 8400/8500/8550 Product
Training CD-ROM. Select Service and then select Replacement
Videos).
1. Remove the printhead (see page 8-12).
Caution
Place several sheets of paper between the printhead and the drum to protect
the drum from damage.
2. Using the gears, position the wiper blade all the way up.

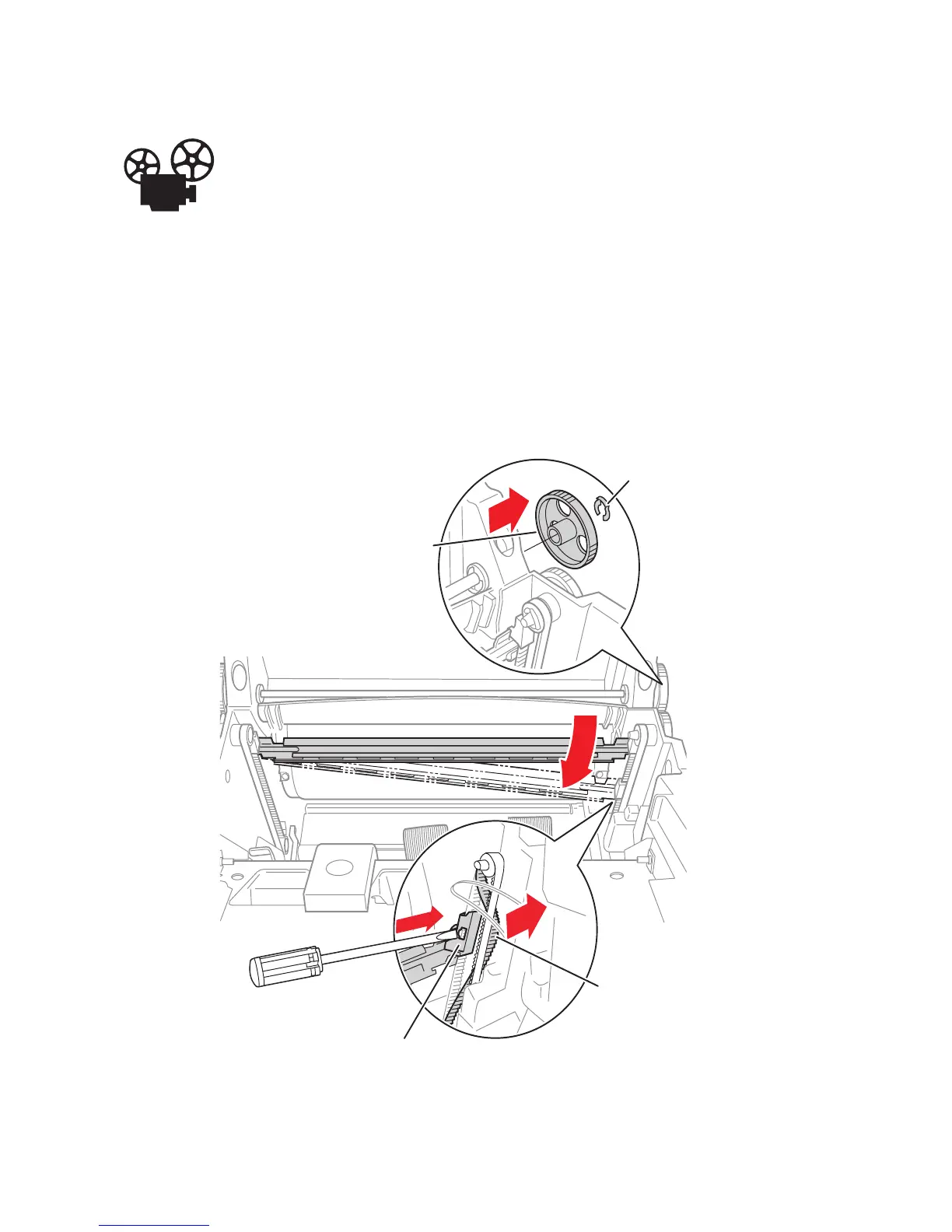

3. On the left side of the printer remove the KL clip and gear as shown below.
s8500-081
KL-Clip
Large Drive Gear
Wiper Clip
Wiper Belt
