Xerox Phaser 8400 Service Manual

Wiring Diagrams 10-7
Left-Side Wiring Diagram (Continued)

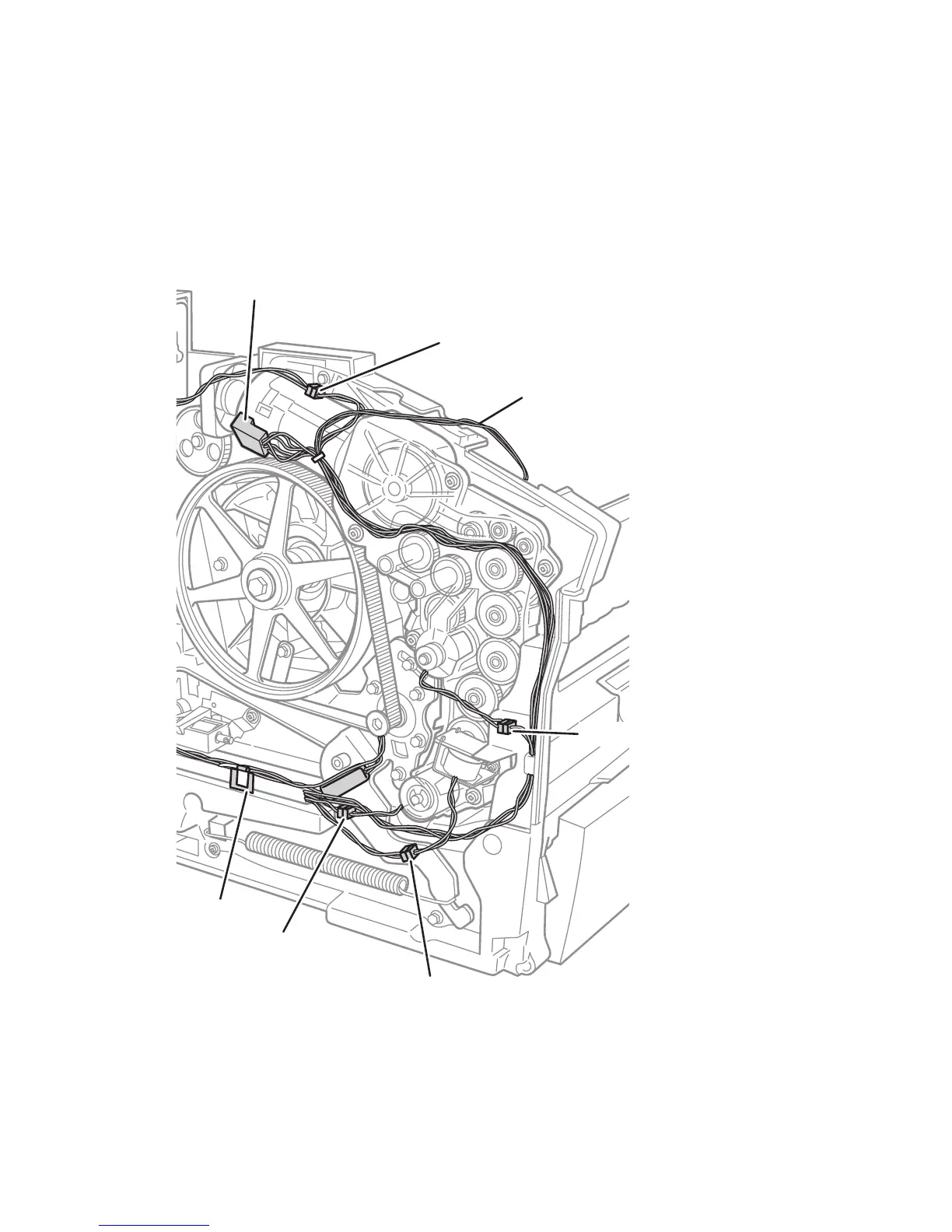

The arrows indicate which connectors you should look at for the Pest codes. The Pest
codes are displayed on the Control Panel.
s8500-128
37015.4x MP Fan (8400 Only)
37034.3x MP Motor
370xx.4x Preheater
Lift Solenoid (8500/8550 Only)
37019.4x Pick Solenoid
37018.4x Pick Clutch
Ground Clip
37017.4x Deskew Clutch
