Service Parts Disassembly 8-23
Paper Preheater and Deskew Assembly
(PL 2.17)
1. Open the Front Door.
2. Remove the Lower Duplex Guide (see page 8-41).
3. Remove the Inner Simplex Guide (see page 8-41).
4. Unplug the AC and sensor flag connectors from the bottom of the Preheater.
Note
Release the lock on the back of the AC connector.

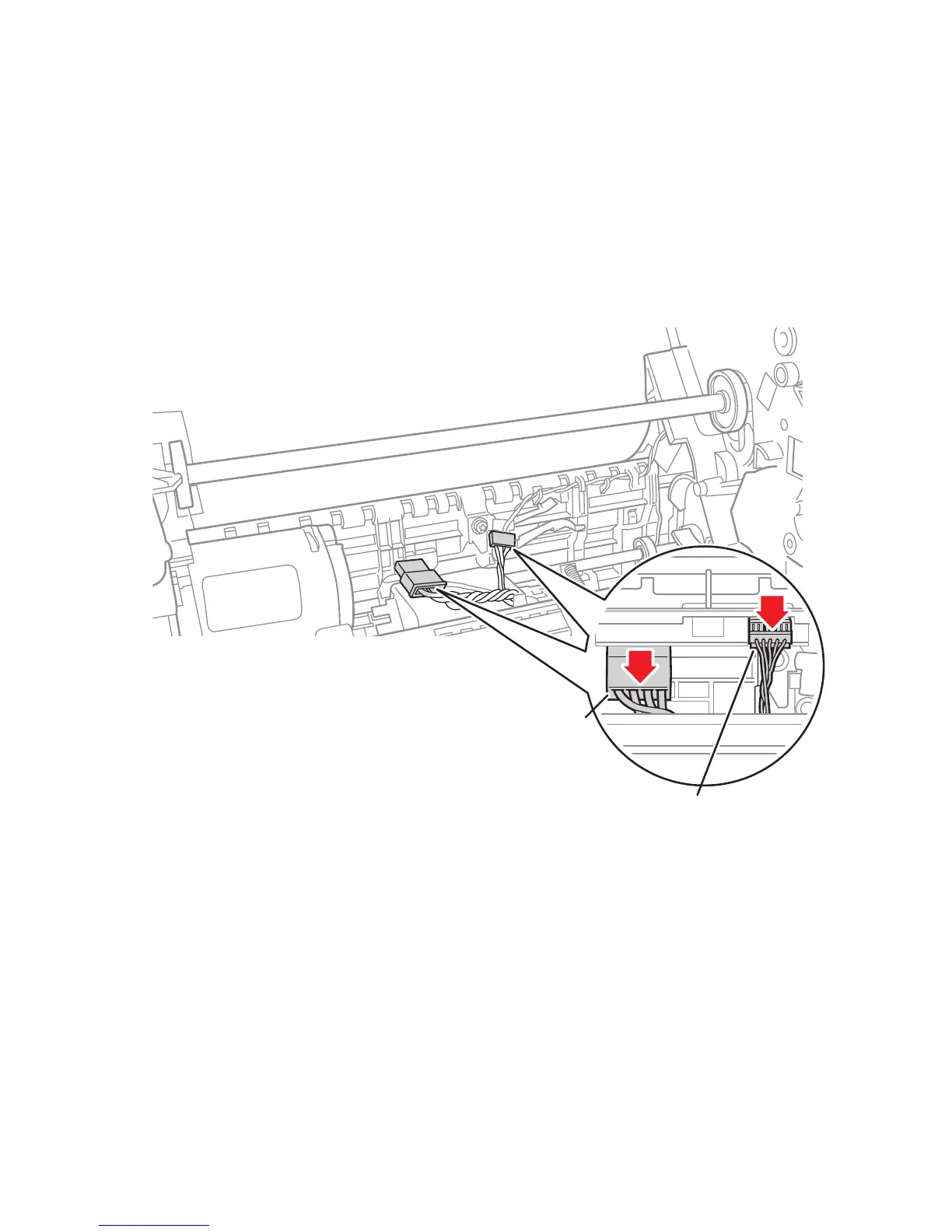

5. Slide the latches in and forward to latch in their slots as shown by (1) and (2) in
the following figure.
AC Connector
Sensor Flag Connector
s8500-084
