Service Parts Disassembly 8-49
Replacement Note:
Note
To replace the Media Drive Gearbox, first remove the paper tray. Rotate the
Pick Roller Shaft until the clutch seats. Then work upwards, rotating the
Take Away rollers and the Duplex Roller until all shafts seat properly.
Ensure that the Media Drive Gearbox is correctly positioned on the side
frame. Also, ensure that all rollers can rotate freely.
Tray 1 Pick Solenoid
(PL 4.10)
1. Remove the left side cover from the printer (see page 8-7).
2. Disconnect the solenoid cable.
3. Remove one screw from the solenoid, and remove the solenoid from the Media
Drive Gearbox.

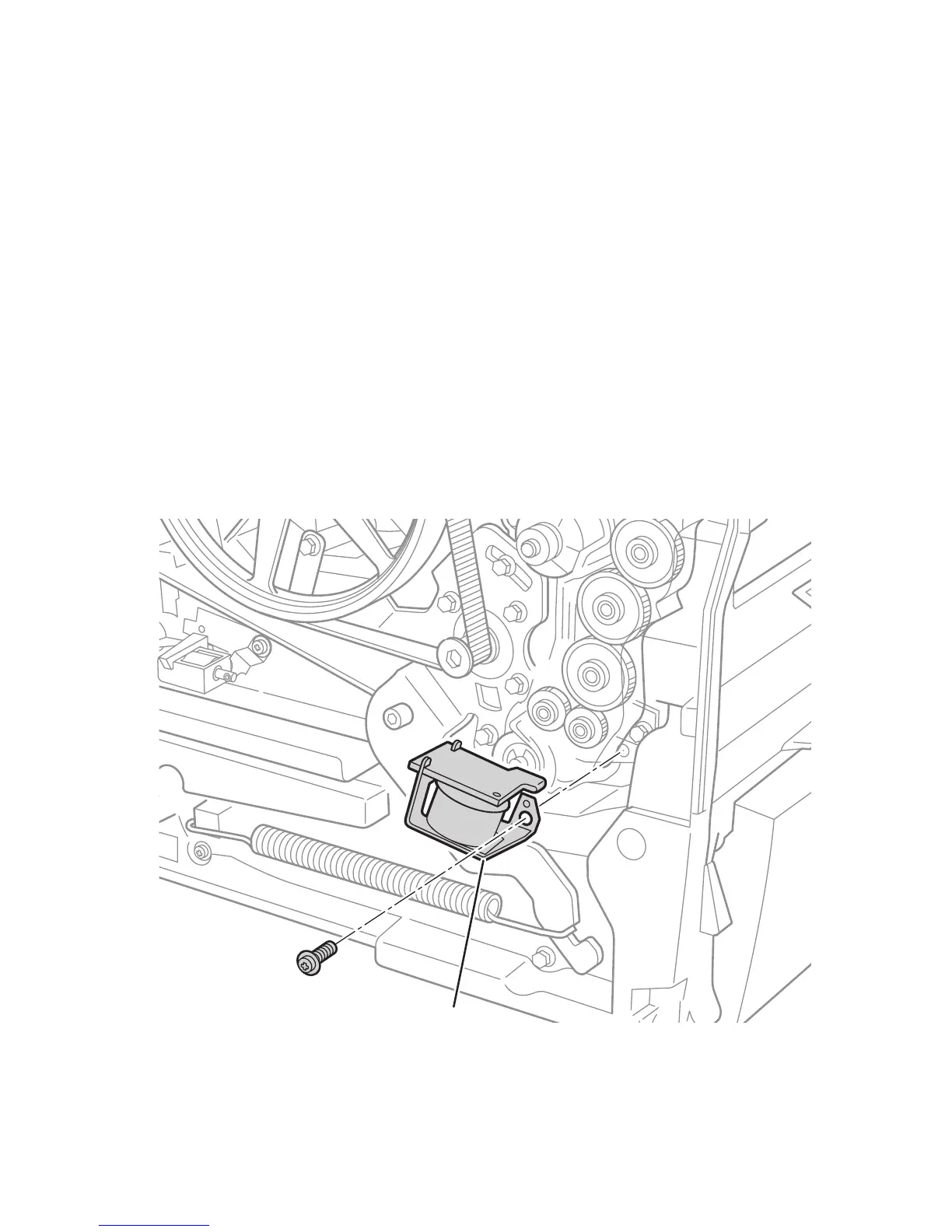

s8500-106
Tray 1 Pick Solenoid
