Service Parts Disassembly 8-47
Media Tray Lift Motor
(PL 4.6)
1. Remove the Electronics Module (see page 8-55).
2. Remove Tray 2.
3. Disconnect the wiring harness from the Media Tray Lift Motor.
4. From the rear of the printer, inside the cavity, remove the push nut (this is a press
fit).
5. Remove the gear from the shaft.
6. Remove the two screws holding the Media Tray Lift Motor to the printer frame.
7. Remove the Media Tray Lift Motor from the outside of the printer.
Replacement Note:
Note
Ensure that the two tabs of the bushing are seated in the chassis. Position the
push nut so the fingers on the inside of the nut are pointed up toward the end
of the shaft. Place a box wrench or socket wrench of the same size as the
outer ring of the push nut over the nut and press firmly to seat the nut on the
shaft.

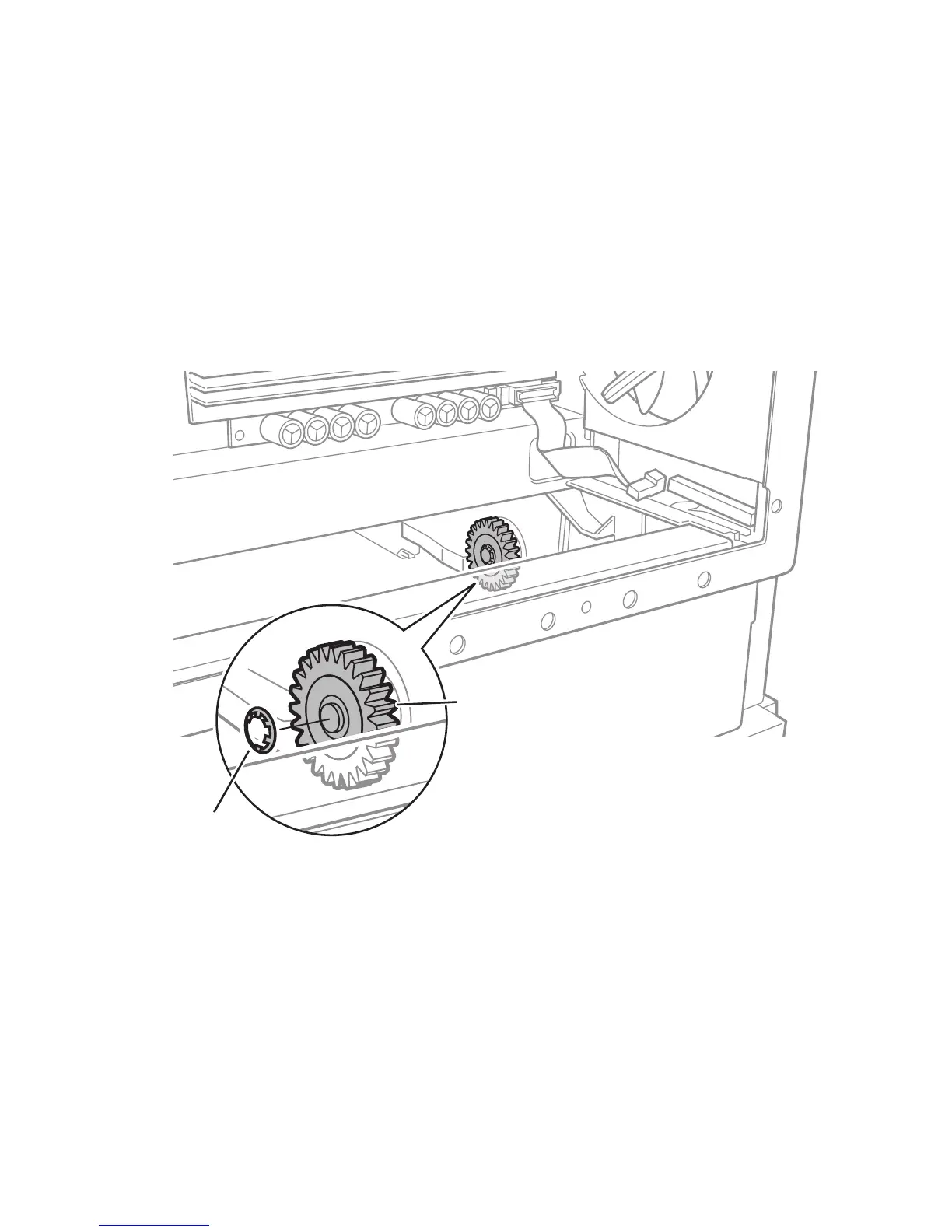

s8500-104
Push Nut
Lift Motor Gear
To Next Page
