Xerox Phaser 8400 Service Manual

Service Parts Disassembly 8-57
I/O Board
(PL 5.4)
1. Remove the right side cover (see page 8-6).
2. Disconnect the wires to the I/O Board.
3. Remove the two screws attaching the I/O Board to the printer.
4. Remove the I/O Board.
Replacement Note:
Note
Ensure the corner of the board is behind the ground tab on reassembly.

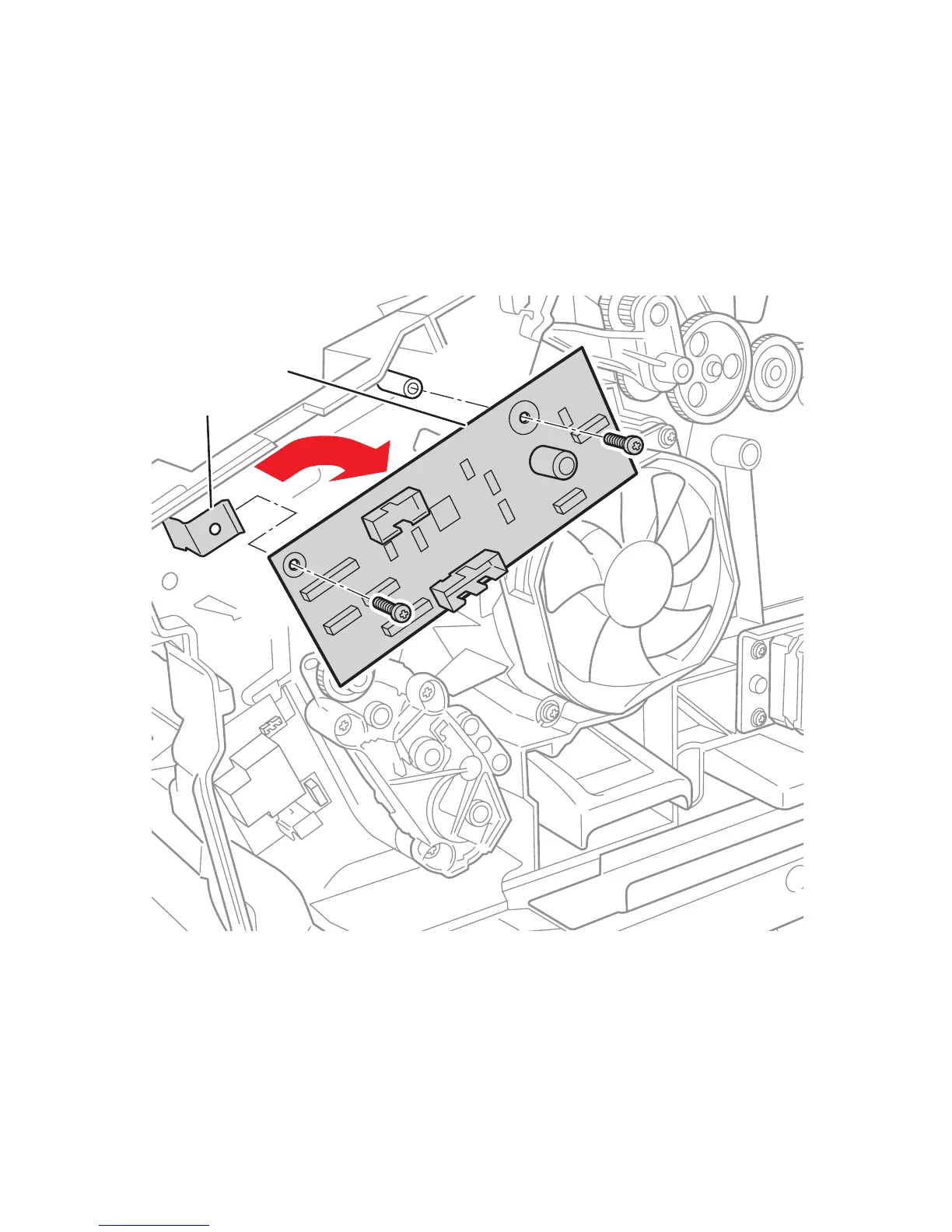

s8500-112
Ground Tab
I/O Board
