8-44 Phaser 8400/8500/8550 Color Printer
Take Away Roller
(PL 3.7)
1. Remove the left and right side covers from the printer (see page 8-7).
2. Remove the Media Drive Gearbox (see page 8-48).
3. Remove the Lower Simplex Guide (see page 8-41).
4. Remove the KL-clip from the right end of the shaft.
5. Remove the KL-clip and bushing from the left end of the shaft.
6. Move the Take Away Roller shaft to the left side of the printer to release it from
the right side frame, rotate the shaft forward, and remove it to the right.
Note
Pressure from the idler rollers makes it difficult to move the Take Away
Roller shaft to the right during removal.

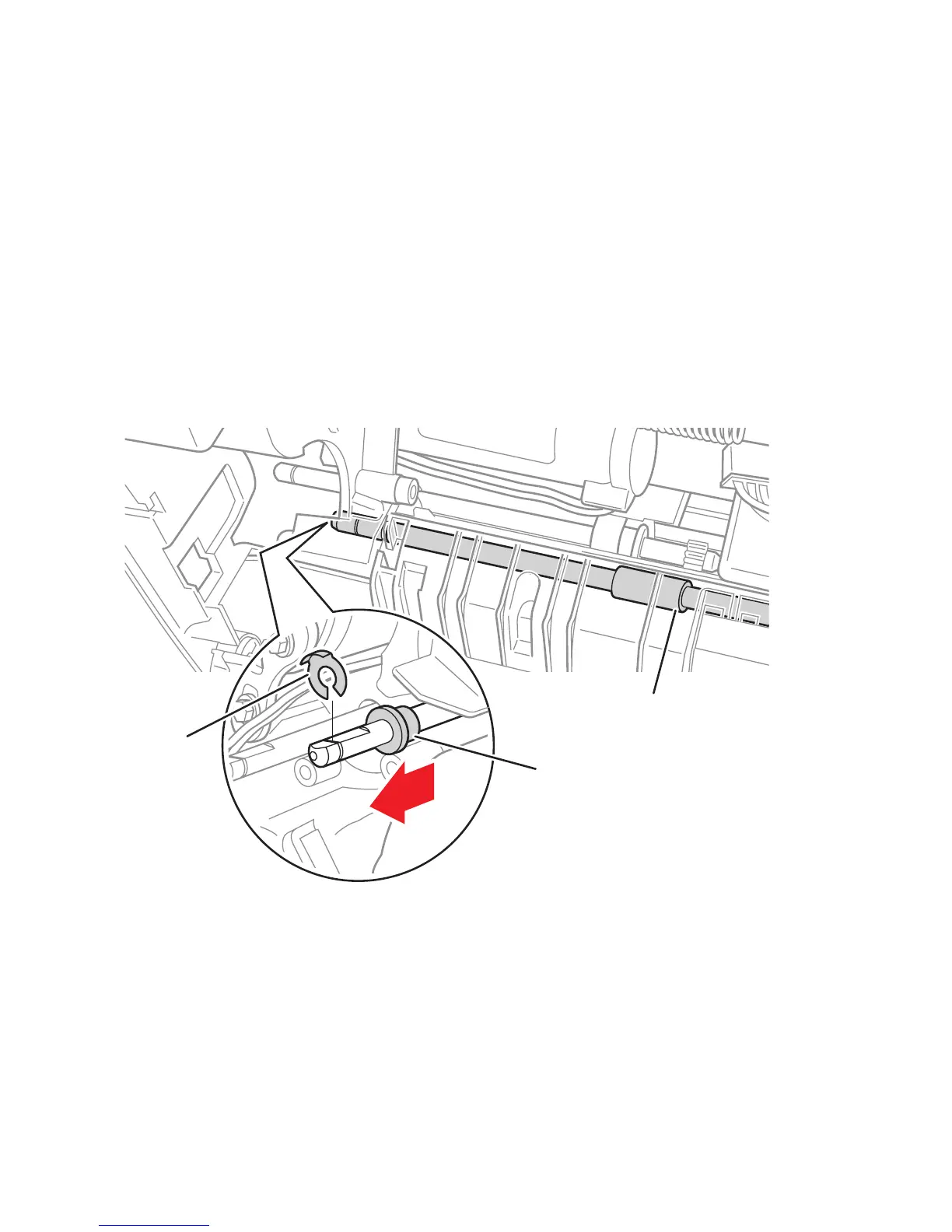

s8500-100
Take Away Roller
Bushing
KL-Clip
To Next Page
