Service Parts Disassembly 8-45
Pick Assembly
(PL 3.10)

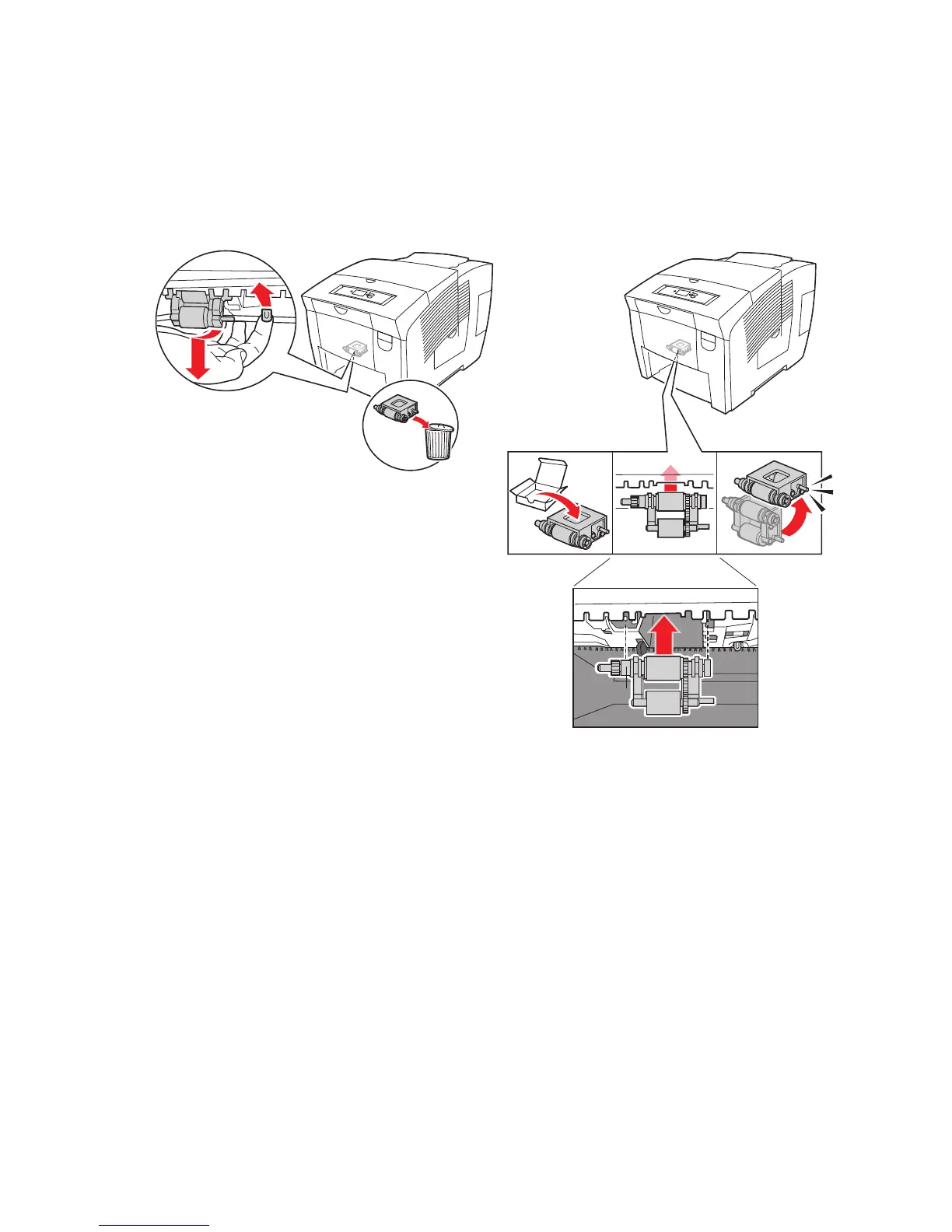

1. Remove Tray 2 from the printer.
2. Reach into the tray cavity and release the orange colored catch holding the Pick
Roller in place. The catch is located on the ceiling of the tray cavity about 1/4 of
the way across the unit from the right side and about 12.5 cm (5 inches) back.
When you pull forward on the catch, the roller will swing down.
3. Pull down to remove the roller.
Note
Replace the Retard Roller (see following figure) at the same time you
replace the Pick Assembly.
Replacement Note:
Note
Insert the replacement with the metal shaft at the top and toward the left, the
grey rollers should be facing you. Position the roller back about5 cm (2
inches) in the tray cavity. Push the pick assembly up into the chassis and
snap it into place. Then, rotate the Pick Assembly up and back to latch.
2
1
s8500-101
s8500-102
