8-4 Phaser 8400/8500/8550 Color Printer
Covers

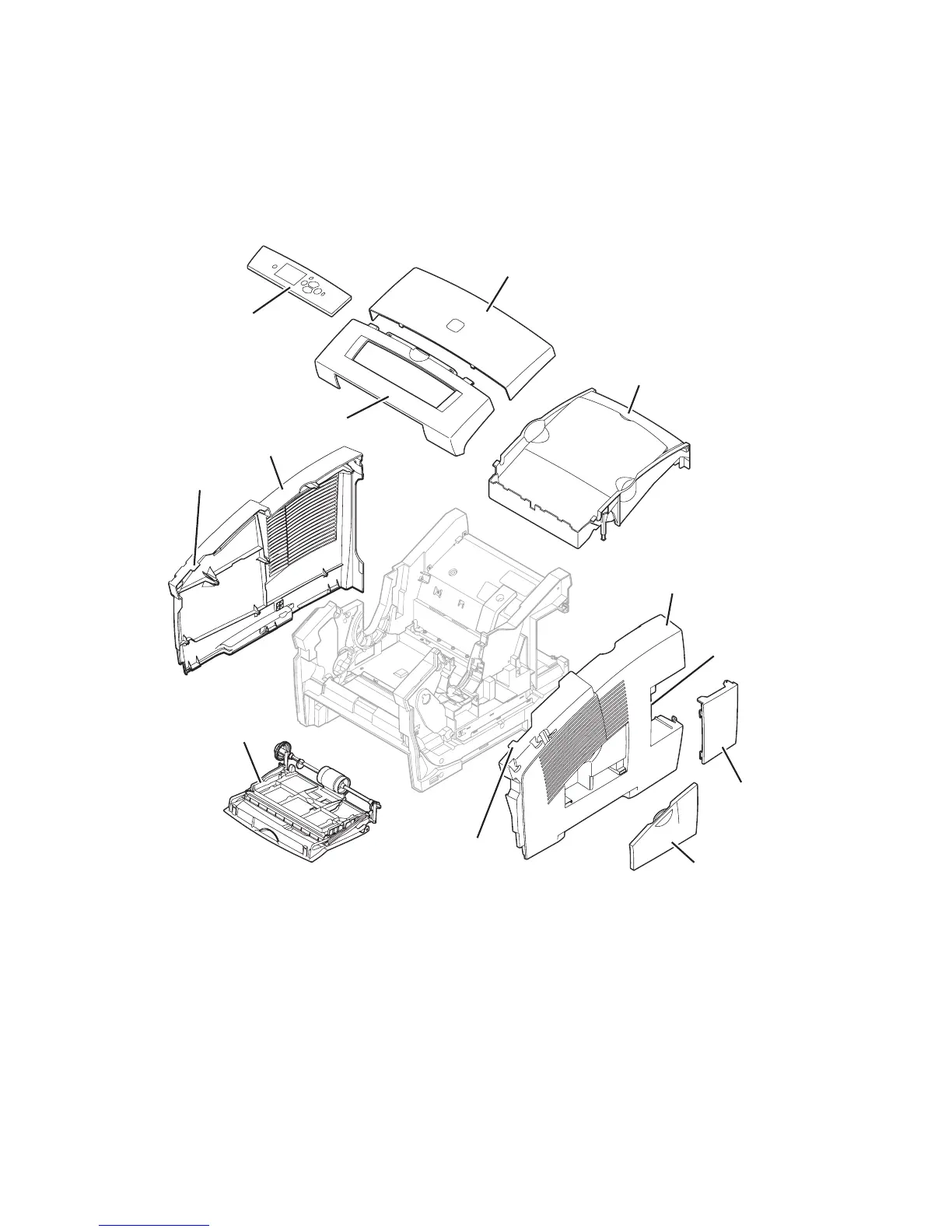

1. Front Door, Tray 1 (MPT) 6. Exit Cover
2. Control Panel Cover 7. Ink Loader Assembly and Door
3. Control Panel 8. Interface Cover
4. Right Side Cover 9. Side Door
5. Left Side Cover
1
5
Tab
2
3
6
7
s8500-068
4
8
Tab
9
Tab
