8-22 Phaser 8400/8500/8550 Color Printer
Media Release Blade Carriage Assembly and Transfix
Roller
(PL 2.13)
Videos are available with instructions for replacing the Transfix
Roller. Videos are located on the Phaser 8400/8500/8550 Product
Training CD-ROM. Select Service and then select Transfix Load
Module Procedures).
1. Remove the Right Side Cover (see page 8-6).
2. Disconnect J250 from the I/O Board.
3. Remove the Control Panel cover.
4. Remove two screws securing the I/O Board to the chassis, slide the board towards
the rear, and move the board out of the way.
5. Loosen the screw securing the Transfix Roller Shaft Restraint and remove the
restraint.
Caution
Hold the Transfix Roller and the Media Release Blade with one hand during
removal to prevent the Transfix Roller from falling and damaging the printer.
Also, do not use the transfix roller shaft restraint as a lever to pry the shaft.
Doing so can bend the restraint.

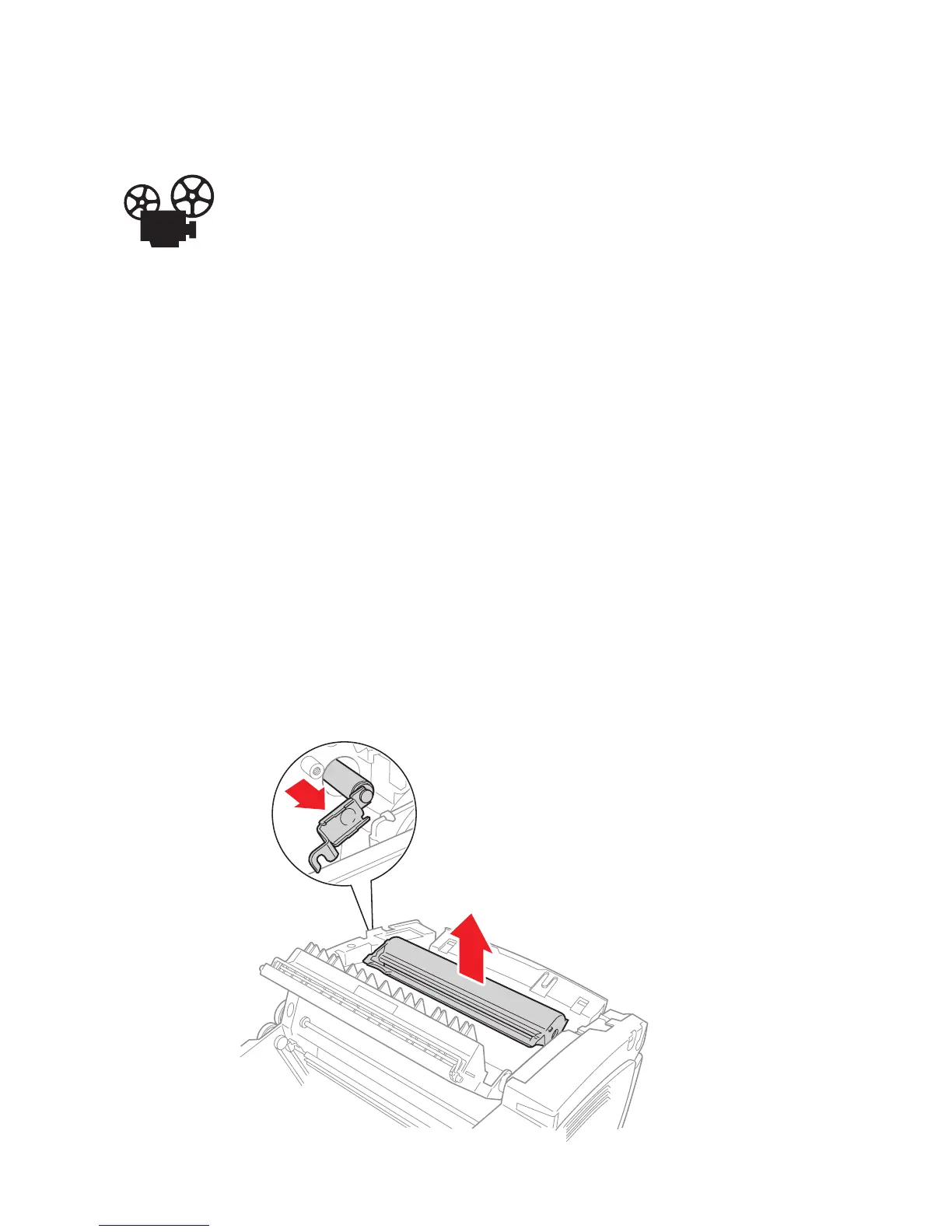

6. Use the end of the Transfix Roller Shaft Restraint to pull the shaft out and remove
the shaft from the printer (see figure on the next page).
7. Remove the Media Release Blade and Transfix Roller.
s8500-083
To Next Page
