10-10 Phaser 8400/8500/8550 Color Printer

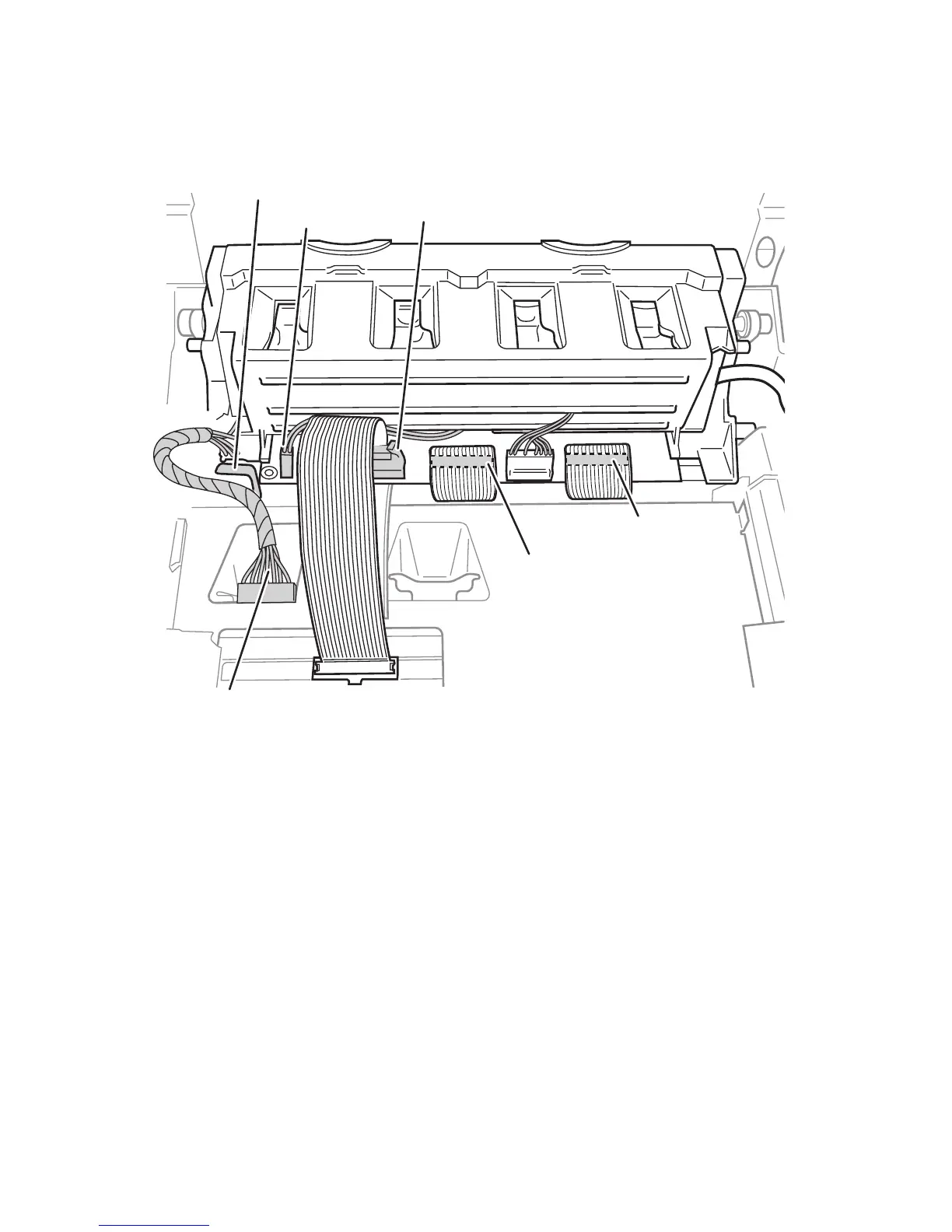

Inside Top - Printhead Wiring Diagram
The arrows indicate which connectors you should look at for the Pest codes. The Pest
codes are displayed on the Control Panel.
(8400 Only)
s8500-131
Heater Cable
Cable Restraint
Out of Ink
J180 32064.4x
J140 37063.4x Head VPP
