Xerox Phaser 8400 Service Manual

1-8 Phaser 8400/8500/8550 Color Printer

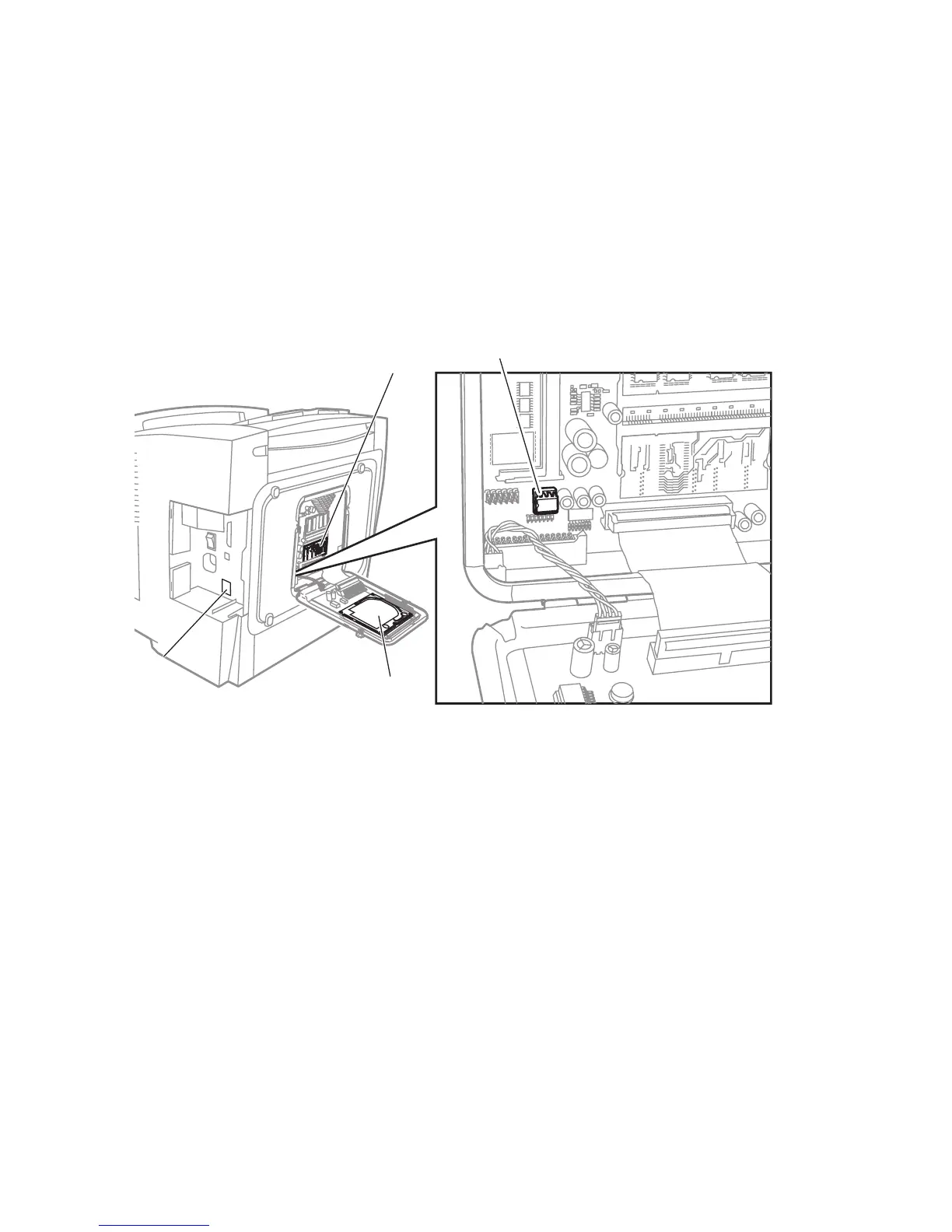

Rear View
The rear view consists of the printer’s main electronics and power supply, which are
enclosed in a metal case called the Electronics Module. The rear panel allows access
to the Electronics module, RAM, and NVRAM chips. The printer’s hard drive is also
mounted on the rear panel.
When installing a new electronic module in the printer, the following components
need to be transferred from the old board.
1. Hard drive (optional) 3. Configuration card (Installed from the
side under the interface cover.)
2. Memory (RAM) DIMM 1 and DIMM 2 4. NVRAM (configuration card handles
NVRAM differences between 8400 and
8500 series).
1
1
2
3
4
s8500-006
