5-36 Phaser 8400/8500/8550 Color Printer

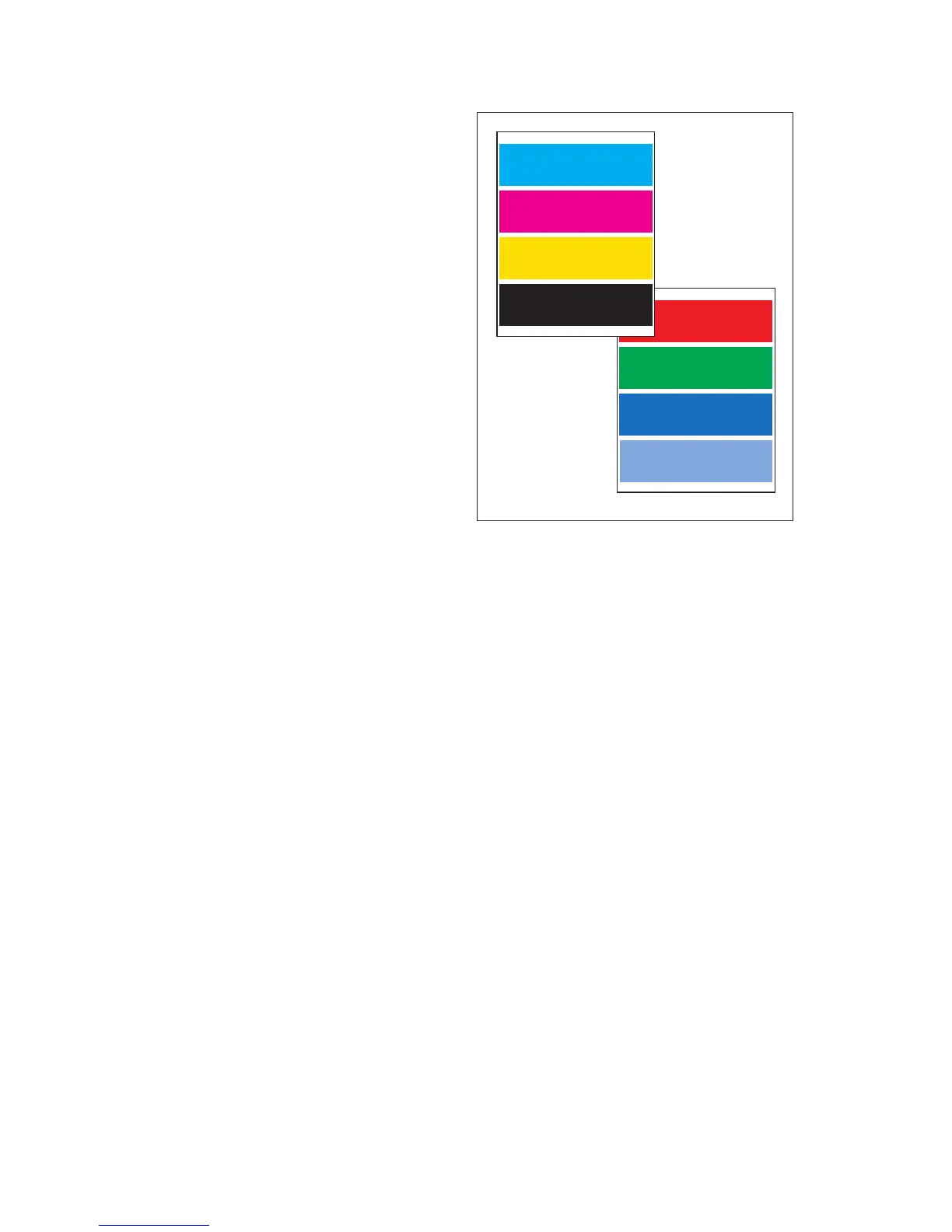

Big Bands OHP
This print allows you to evaluate transparency
printing. It prints two transparencies from
Tray 1, one with primary color fills and one with
secondary color fills and a band of 50% blue, as
this is a popular background color for overhead
transparencies.
Look for: Scratching on the print. Uniformity of
fill with no scratching.
Evaluate the print on an overhead projector.
Some print artifacts visible on the print do not
show when projected. Likewise, some defects
do not show until projected.
Causes: Confirm that you are using the
transparency that is supported for this printer.
Clean or replace the paper release blade. For
more information about scratches, see
"Scratches or Marks Parallel to the Long Axis of
Printing, Particularly with Film" on page 5-13.
Test Print Examples (Continued)
s8500-052
