Xerox Phaser 8400 Service Manual

8-12 Phaser 8400/8500/8550 Color Printer
Printhead Assembly, Right and Left Printhead
Restraints
(PL 2.4) (PL 2.5 and 2.6)
Videos are available with instructions for replacing the printhead
assembly. Videos are located on the Phaser 8400/8500/8550 Product
Training CD-ROM. Select Service and then select Printhead
Procedures.
W
arn
i
ng
The printhead is hot when the printer is operating. Turn off power to the
printer and allow the printhead to cool for 30 minutes before starting
removal procedure.
Caution
Perform the steps in this procedure in the order given to prevent damage to
the printer.
1. Remove the ink loader assembly and door (see page 8-8).
Caution
Place several sheets of paper between the faceplate of the printhead and the
drum to protect the drum from damage.

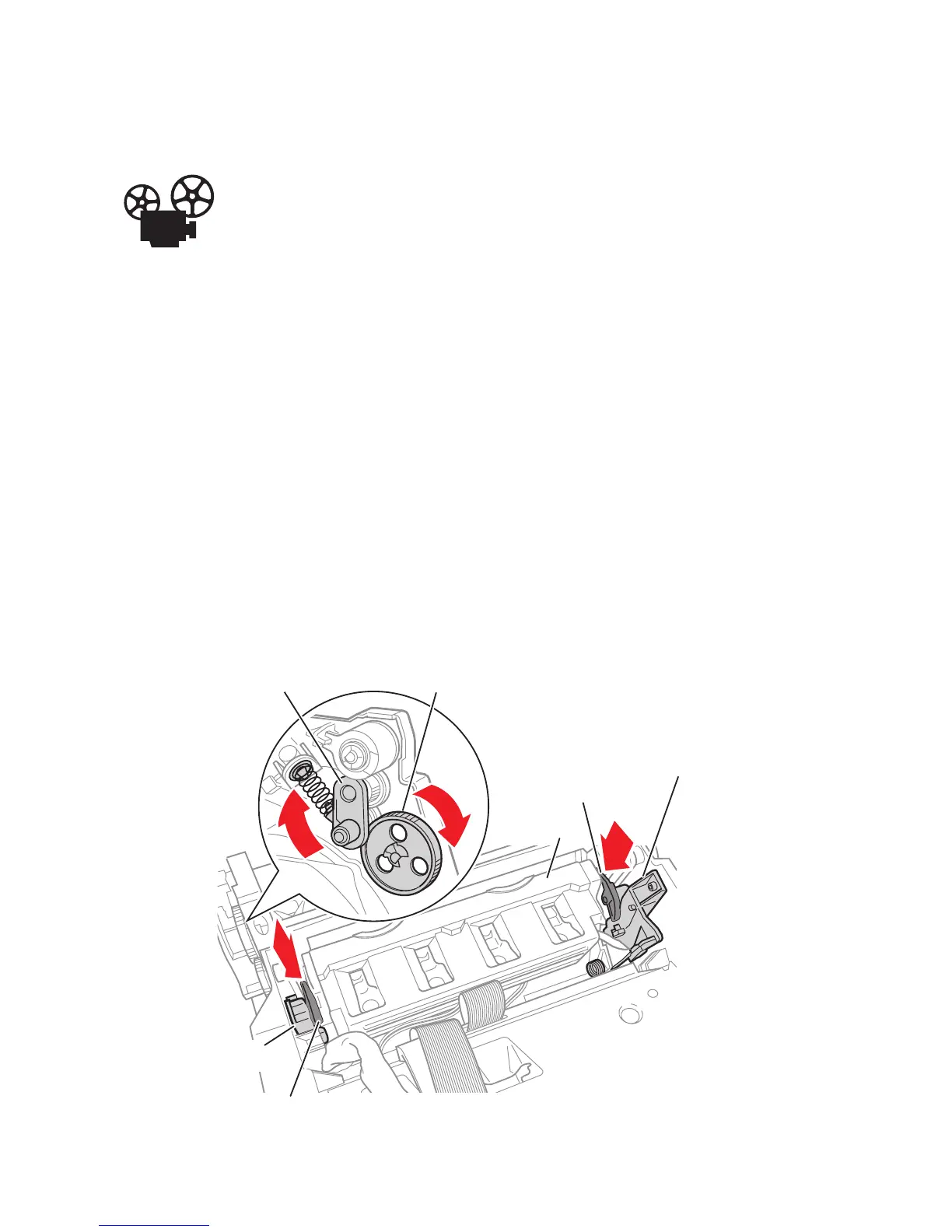

2. On the right side of the printer, lift up on the Wiper Assembly Lock (#1 on the
figure below) to unlock the Wiper Assembly gear train.
s8500-073
Wiper Assembly Lock
Gear
Printhead
Printhead Restraint
Printhead Restraint Arm
Printhead
Restraint
Printhead Restraint Arm
