4-62 Phaser 8400/8500/8550 Color Printer

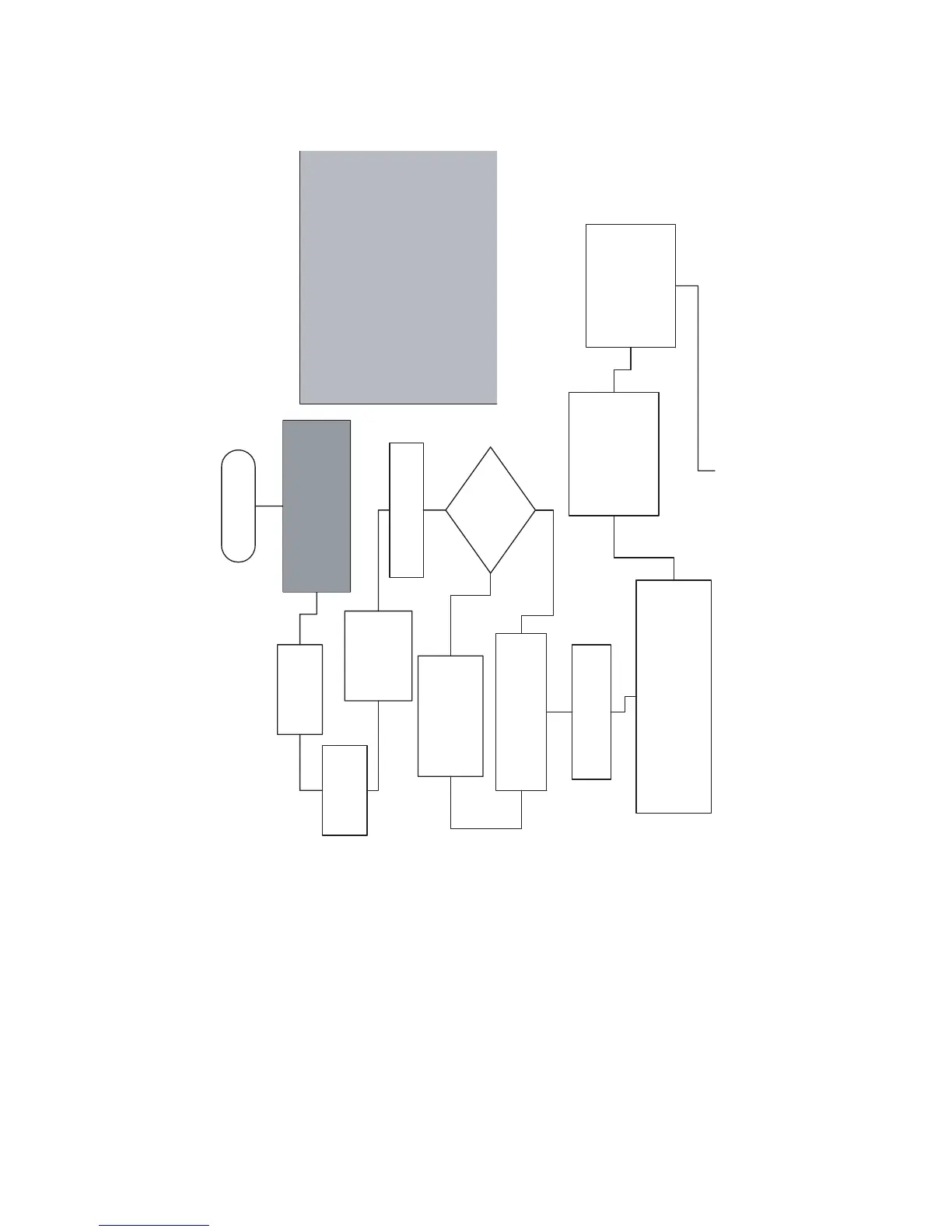

Mechanical Initialization (8500/8550)
Home XA and move XA to the
HEADTILT position
6000
Use the Headtilt
Solenoid and tilt the
head to Standby
7007, 7006, 7008, 8005,
8055, 8007, 8008, 8009
Is the
head tilt CAM
engaged
(head tilted?)
Move the wiper and the head to determine if
the head is fully restrained or not. This will
allow the head to tilt to the standby position so
the wiper can be homed.
7007, 7006
Home the CAP/wiper
without disengaging the
Head Tilt CAM
8005,
8007, 8008, 8009
Engage the Headtilt
Solenoid
MECHANICAL RECOVERY
Start Mechanical
Recovery
Start the
thermals.
13,xxx
Close preheater
Set FIRMWARE states:
CapState = UNKNOWN
HeadTiltState = UNKNOWN
DmfixState = UNKNOWN
YaState = HOMELESS
Mechanical Recovery
POWER ON
Unbind Media
Path Motor and
HOME the MPT
31,001
Home the Y-Axis
5001, 5004
Wait for head to read
OK_TO_WIPE
temperatures
13,xxx
s8500-137
No
Values in NVRAM are used to determine if
printhead and wiper have contact or if the
printhead was parked on last power down. If
printhead and wiper are in contact, the printhead
warms first before moving the wiper.
The BLUE line traces what happens if printhead
was parked on last power down.
NOTE: Headtilt CAM will be engaged when the
printhead is in the PARKED (restrained) position.
The RED numbers indicate errors that may be
displayed at that point in the process.
Yes
To Next Page
