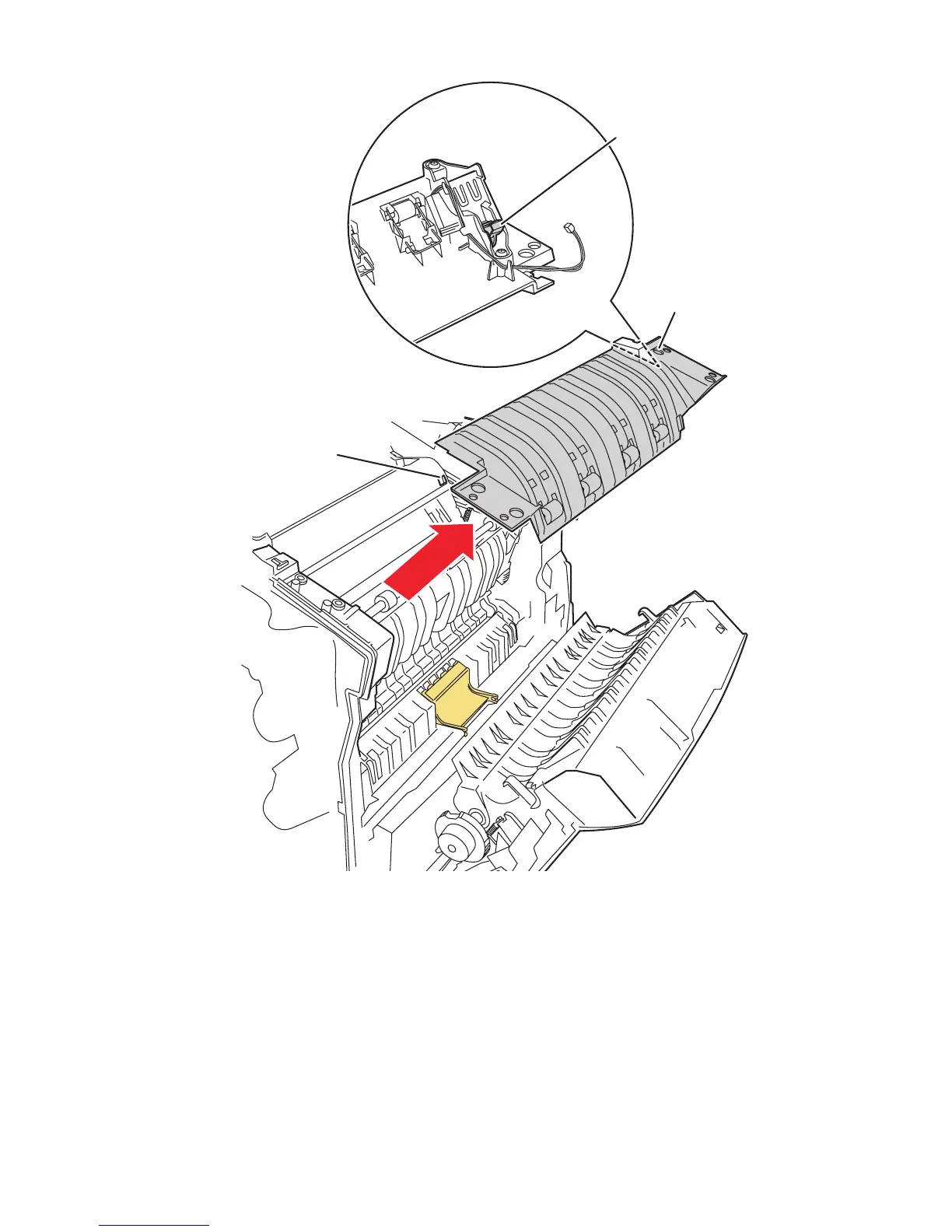

Service Parts Disassembly 8-43
Replacement Notes:
Note
Route the solenoid harness through the right side frame when replacing the
Upper Duplex Guide.
Note
Verify that the solenoid lever engages the hole in the Paper Release Guide.
s8500-099
Hole for
Solenoid Lever
Solenoid Lever
Upper Duplex Guide
