If monitor U1-05 indicates that the forward direction is opposite of what is intended, set F1-05 or F1-32 to 1 or reverse
the two A pulse wires with the two B pulse wires on option terminal TB1 as shown in Figure 7.16.
A+ B+A− B− Z+ SD FEZ− A+ B+A− B− Z+ SD FEZ−

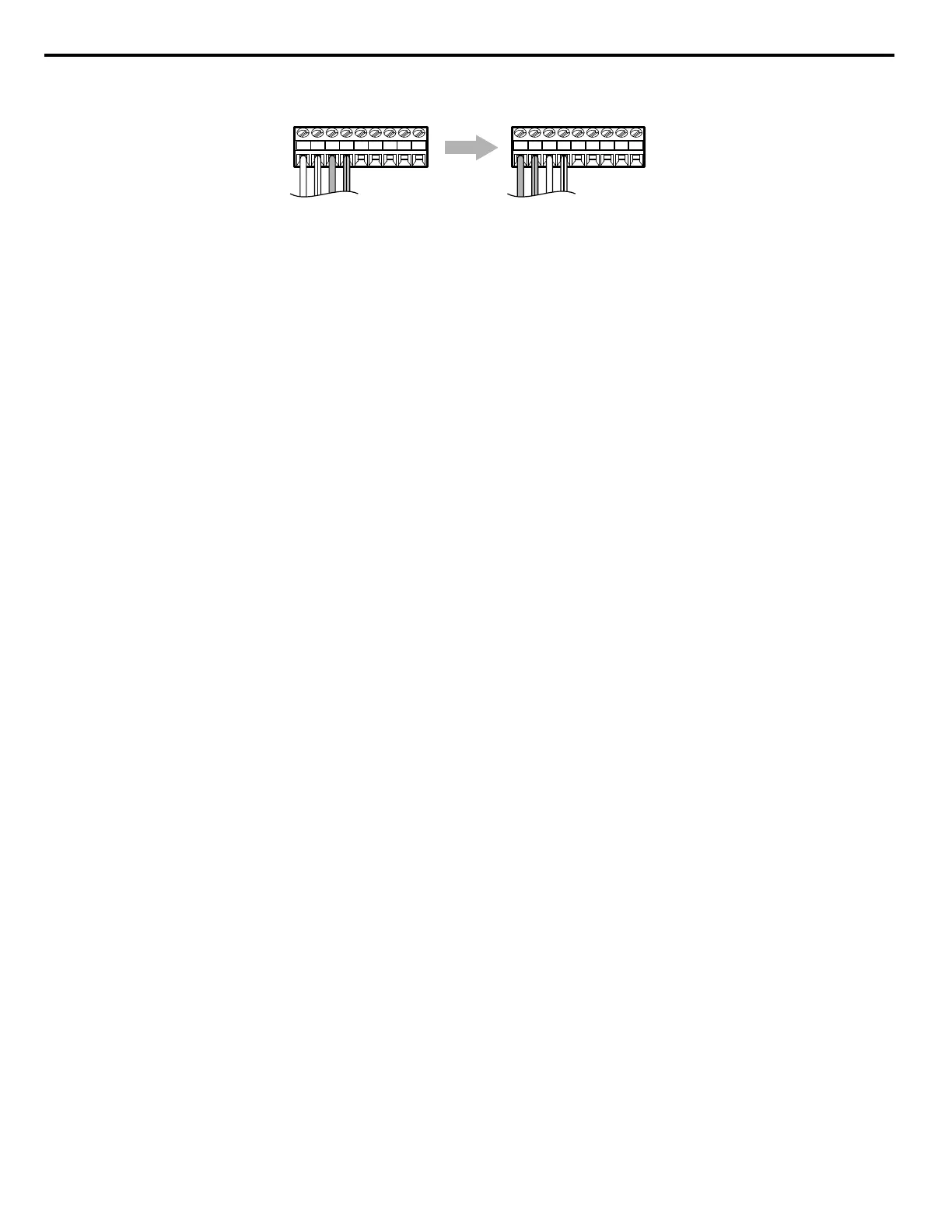

Figure 7.16 A Channel and B Channel Wire Switching
Please note that when the drive is initialized using A1-03 =1110, 2220, 3330, the value for F1-05/F1-32 will reset to
factory default and the parameter will need to be readjusted to switch the direction.
7.1 Option Card Installation
232
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
