YASKAWA A1000 Series User Manual

n
IP20/NEMA 1, UL Type 1 Enclosure Drives
Note: Removing
the top protective cover or bottom conduit bracket from an IP20/NEMA 1, UL Type 1 enclosure drive voids NEMA 1, UL Type
1 protection while maintaining IP20 conformity.
W1
4-d
H1
H
H0
H2
H3
W
Max.W2
D
D1
t2
t1
Figure 2Figure 1
W1
H4
H
H0
H1
H3 H2
D
D1
t1
4-d
W
Max.W2

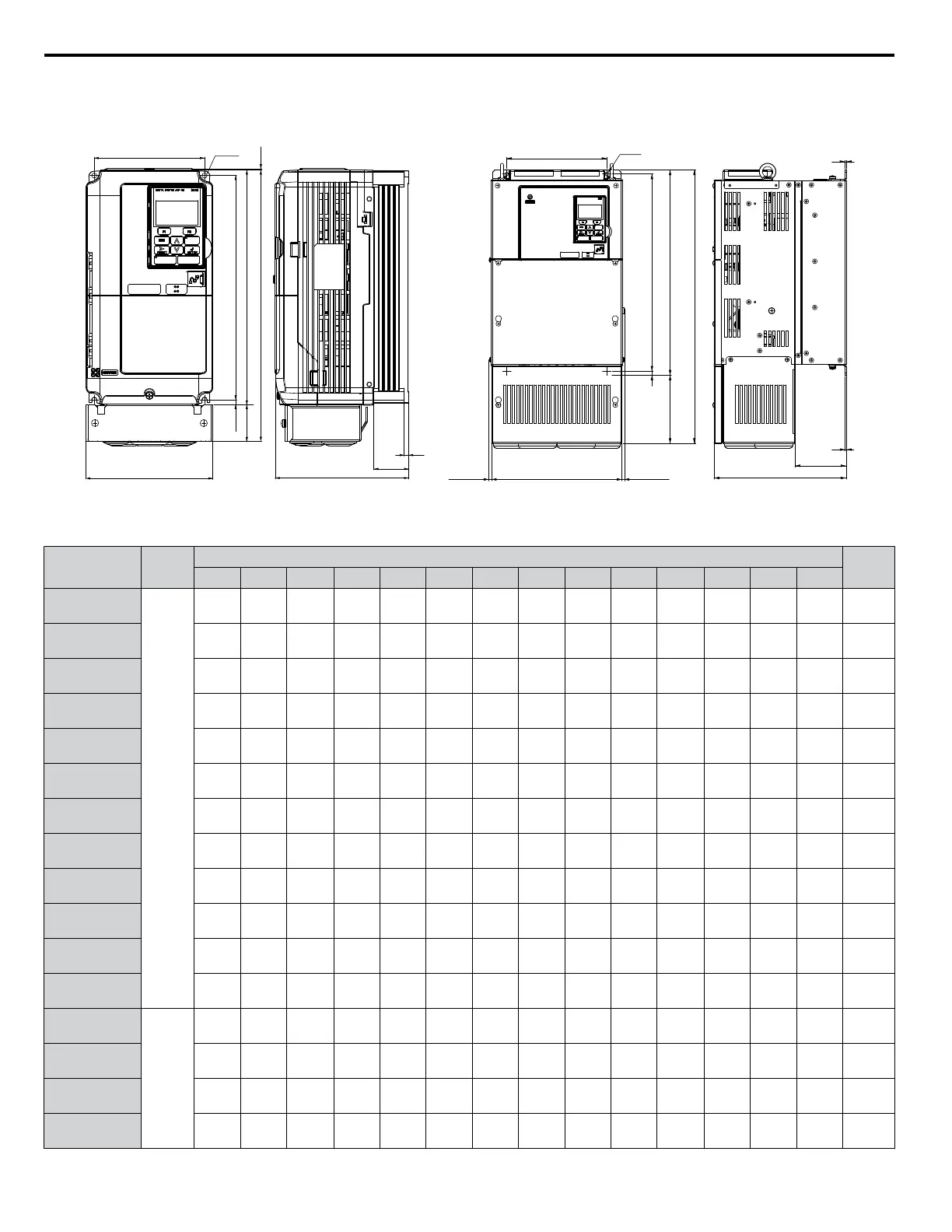

Table 2.2 Dimensions for IP20/NEMA 1, UL Type 1 Enclosure: 200 V Class
Drive Model Figure
Dimensions mm (in)
Wt. kg
(lb)
W H D W1 W2 H0 H1 H2 H3 H4 D1 t1 t2 d
2A0004F
1
<1>
140
(5.51)
300
(11.81)
147
(5.79)
122
(4.80)
–
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
38
(1.50)
5
(0.20)
– M5
3.3
(7.3)
2A0006F
140
(5.51)
300
(11.81)
147
(5.79)
122
(4.80)
–
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
38
(1.50)
5
(0.20)
– M5
3.3
(7.3)
2A0008F
140
(5.51)
300
(11.81)
147
(5.79)
122
(4.80)
–
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
38
(1.50)
5
(0.20)
– M5
3.4
(7.5)
2A0010F
140
(5.51)
300
(11.81)
147
(5.79)
122
(4.80)
–
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
38
(1.50)
5
(0.20)
– M5
3.4
(7.5)
2A0012F
140
(5.51)
300
(11.81)
147
(5.79)
122
(4.80)
–
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
38
(1.50)
5
(0.20)
– M5
3.4
(7.5)
2A0018F
140
(5.51)
300
(11.81)
164
(6.46)
122
(4.80)
–
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
55
(2.17)
5
(0.20)
– M5
3.8
(8.2)
2A0021F
140
(5.51)
300
(11.81)
164
(6.46)
122
(4.80)
–
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
55
(2.17)
5
(0.20)
– M5
3.8
(8.2)
2A0030F
140
(5.51)
300
(11.81)
167
(6.57)
122
(4.80)
–
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
55
(2.17)
5
(0.20)
– M5
4.2
(9.3)
2A0040F
140
(5.51)
300
(11.81)
167
(6.57)
122
(4.80)
–
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
55
(2.17)
5
(0.20)
– M5
4.2
(9.3)
2A0056F
180
(7.09)
340
(13.39)
187
(7.36)
160
(6.30)
–
300
(11.81)
284
(11.18)
7.9
(0.31)
40
(1.57)
1.5
(0.06)
75
(2.95)
5
(0.20)
– M5
5.9
(13.0)
2A0069F
220
(8.66)
400
(15.75)
197
(7.76)
192
(7.56)
–
350
(13.78)
335
(13.19)
7.9
(0.31)
50
(1.97)
1.5
(0.06)
78
(3.07)
5
(0.20)
– M6
9
(20.1)
2A0081F
220
(8.66)
400
(15.75)
197
(7.76)
192
(7.56)
–
350
(13.78)
335
(13.19)
7.9
(0.31)
50
(1.97)
1.5
(0.06)
78
(3.07)
5
(0.20)
– M6
10
(22.0)
2A0110F
2
<1>
254
(10.00)
534
(21.02)
258
(10.16)
195
(7.68)
7.9
(0.31)
400
(15.75)
385
(15.16)
7.7
(0.30)
134
(5.28)
1.5
(0.06)
100
(3.94)
2.2
(0.09)
2.286
(0.09)
M6
23
(50.7)
2A0138F
279
(10.98)
614
(24.17)
258
(10.16)
220
(8.66)
7.9
(0.31)
450
(17.72)
435
(17.13)
7.7
(0.30)
164
(6.46)
–
100
(3.94)
2.2
(0.09)
2.286
(0.09)
M6
28
(61.7)
2A0169F
329
(12.95)
730
(28.74)
283
(11.14)
260
(10.24)
7.9
(0.31)
550
(21.65)
535
(21.06)
7.7
(0.30)
180
(7.09)
–
110
(4.33)
2.2
(0.09)
2.286
(0.09)
M6
41
(90.4)
2A0211F
329
(12.95)
730
(28.74)
283
(11.14)
260
(10.24)
7.9
(0.31)
550
(21.65)
535
(21.06)
7.7
(0.30)
180
(7.09)
–
110
(4.33)
2.2
(0.09)
2.286
(0.09)
M6
42
(92.6)
2.1 Mechanical Installation
32
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
