YASKAWA A1000 Series

n

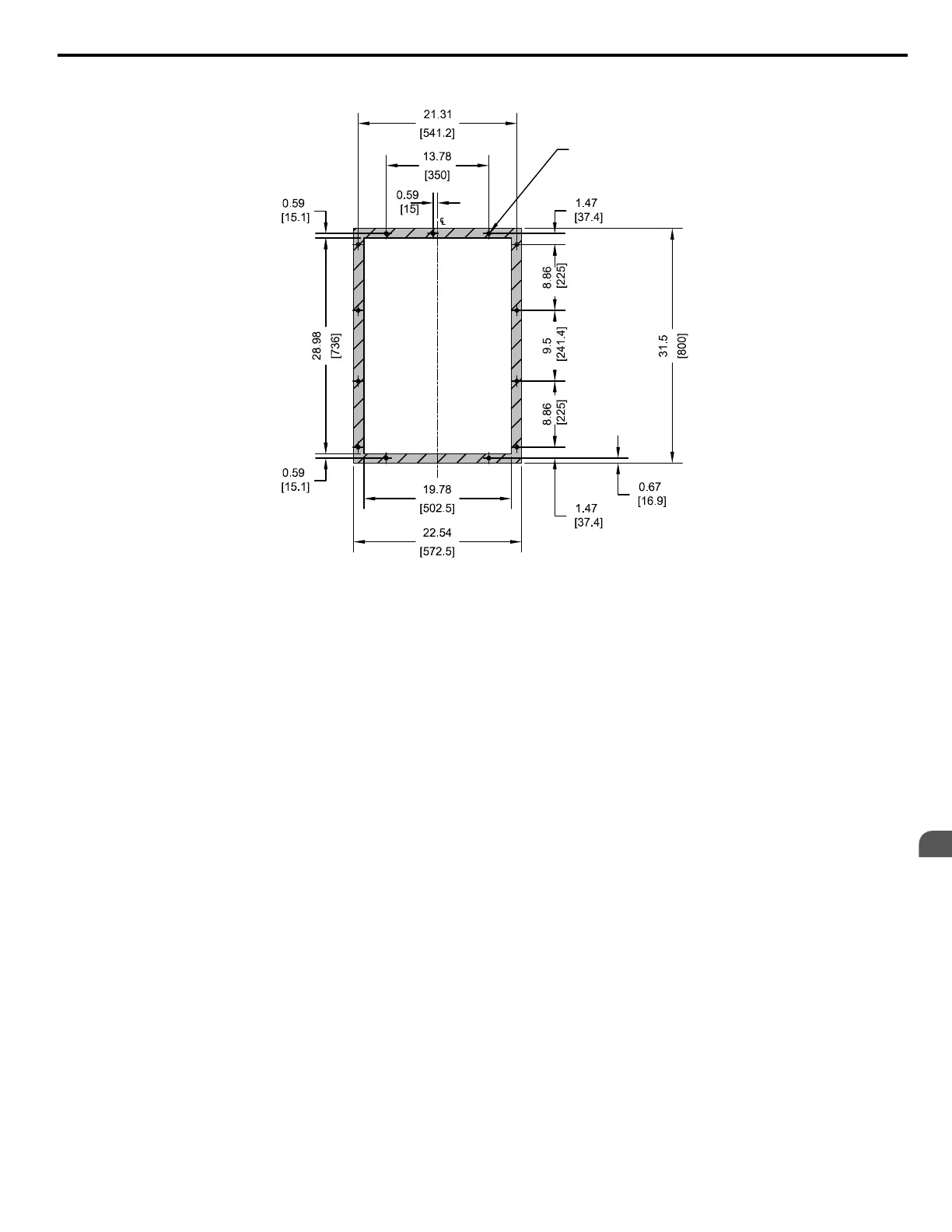

Flange Type Panel Cutout Dimensions for External Heatsink Mounting
Unit: in. [mm]
NOTES:
1. CUTOUT TOLERANCES:
+/- 0.02 in. [0.5 mm]
2. EXPOSED HEATSINK DEPTH
3. MINIMUM RECOMMENDED PANEL
THICKNESS: 10 GA
D=4.99 in. [127 mm] MINUS PANEL THICKNESS
CUTOUT
(13)-3/8 in. [M10]
THREADED HOLES
Figure 2.32 Models 2A0360 and 2A0415, 4A0250 to 4A0362, and 5A0192 and 5A0242
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
