installation screw
Free hooks on both
sides of the cover

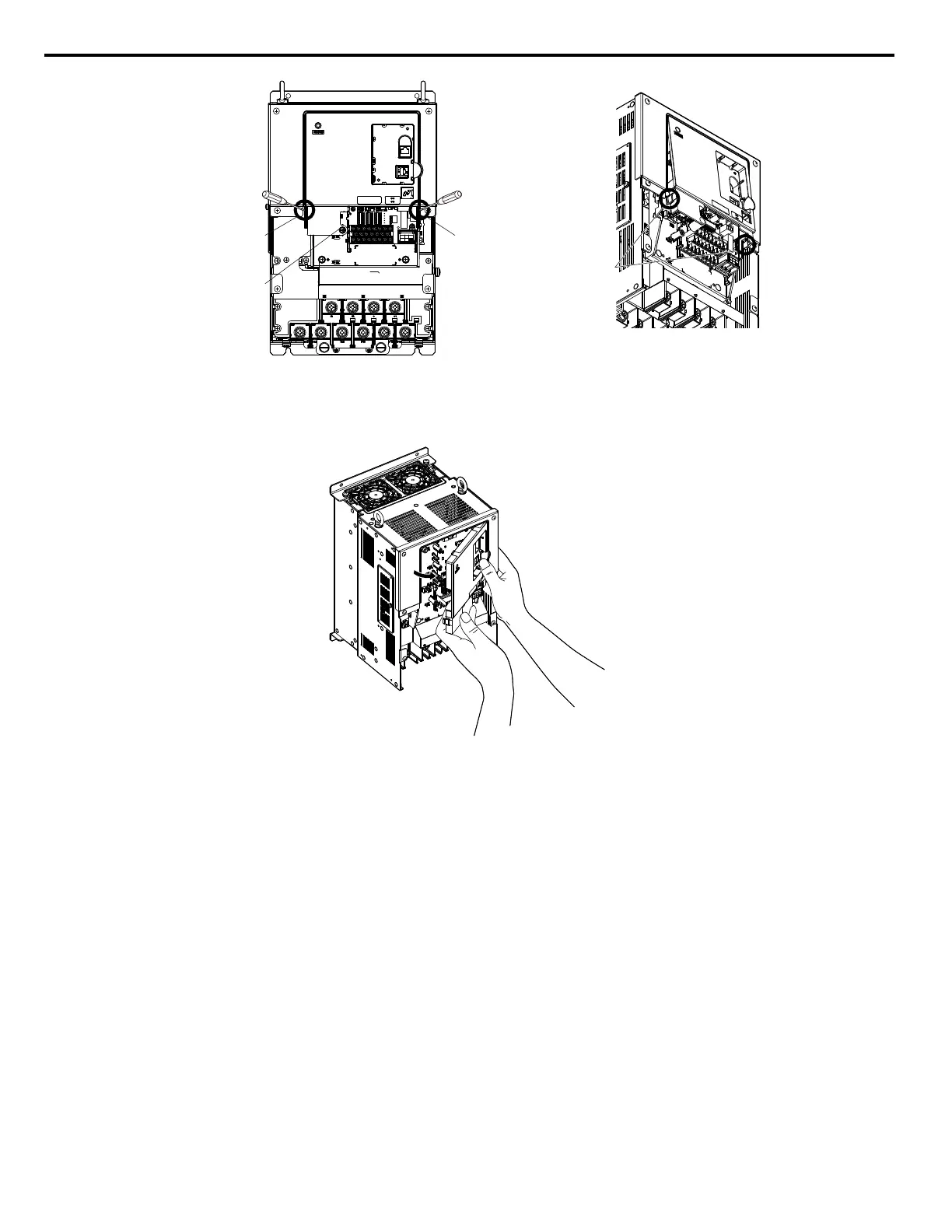

Figure 3.18 Remove the Front Cover (2A0010 to 2A0415 and 4A0058 to 4A1200)
4.
Unhook the left side of the front cover then swing the left side towards you as shown in Figure 3.19 until the cover
comes off.
Figure 3.19 Remove the Front Cover (2A0010 to 2A0415 and 4A0058 to 4A1200)
3.4 Digital Operator and Front Cover
