YASKAWA NX100 Instructions

8.19 Display Setting Function
8-118
8.19.3 Initialization of Screen Layout
The font/button size changed with the font/button size setting function can be collectively
changed back to the regular size.
 Initializing the Screen Layout
To initialize the screen layout, follow the procedure below.

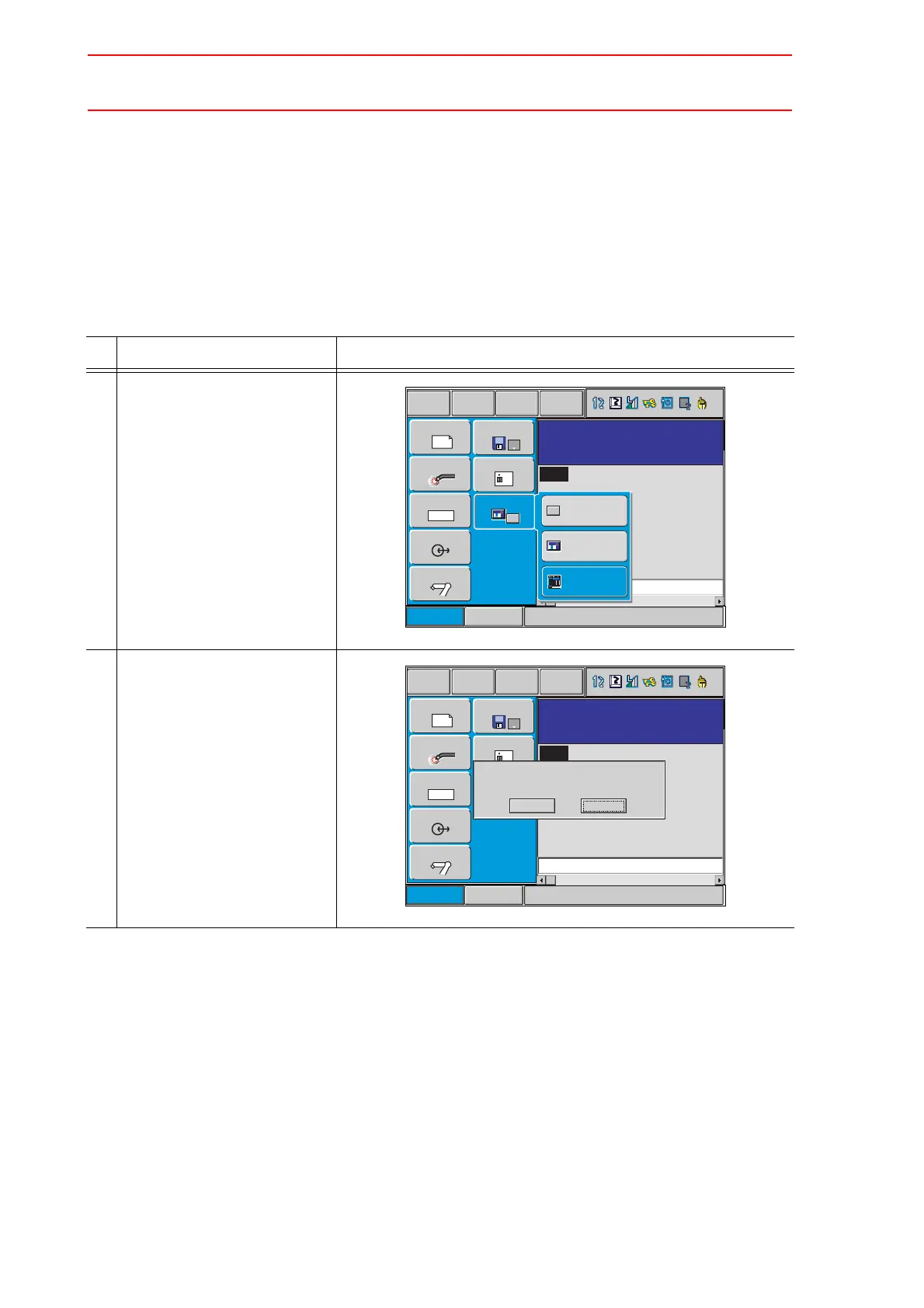

Operation Explanation
1 Select {DISPLAY SETUP}
then {INITIALIZE LAYOUT}
under the main menu.
2 A confirmation dialog box
appears on the center of the
current window.
Short CutMain Menu
JOB CONTENT: MASTER
JOB NAME: 1
CONTROL GROUP: R1
=> MOVJ VJ=0.78
STEP NO: 000
TOOL:
JOB CONTENT: MASTER
JOB NAME: 1
CONTROL GROUP: R1
0000
0001
0002
0003
0004
0005
NOP
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
=> MOVJ VJ=0.78
JOB
EDIT DISPLAY UTILITY
SETUP
CF
FD/CF
DOUT
MOVE
END
JOB
B001
VARIABLE
In Out
IN/OUT
ROBOT
ARC WELDING
DISPLAY SETUP
A
a
CHANGE FONT
A
a
INITIALIZE
LAYOUT
CHANGE BUTTON
Short CutMain Menu
JOB CONTENT: MASTER
JOB NAME: 1
CONTROL GROUP: R1
=> MOVJ VJ=0.78
STEP NO: 000
TOOL:
JOB CONTENT: MASTER
JOB NAME: 1
CONTROL GROUP: R1
0000
0001
0002
0003
0004
0005
NOP
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
MOVJ VJ=0.78
=> MOVJ VJ=0.78
JOB
EDIT DISPLAY UTILITY
SETUP
CF
FD/CF
DOUT
MOVE
END
JOB
B001
VARIABLE
In Out
IN/OUT
ROBOT
ARC WELDING
DISPLAY SETUP
A
a
The screen layout is changed into standard size.
Cancel
OK

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
