YASKAWA NX100 Instructions

12.4 Equipment Configuration
12-7
12.4.2 Cooling System of the Controller Interior
The backside duct fan draws in air from the air intake and expels it from the air outlet to cool the
SERVOPACK. The
fan mounted inside the door circulates the air to keep temperature even through-
out the interior of the NX100.
.

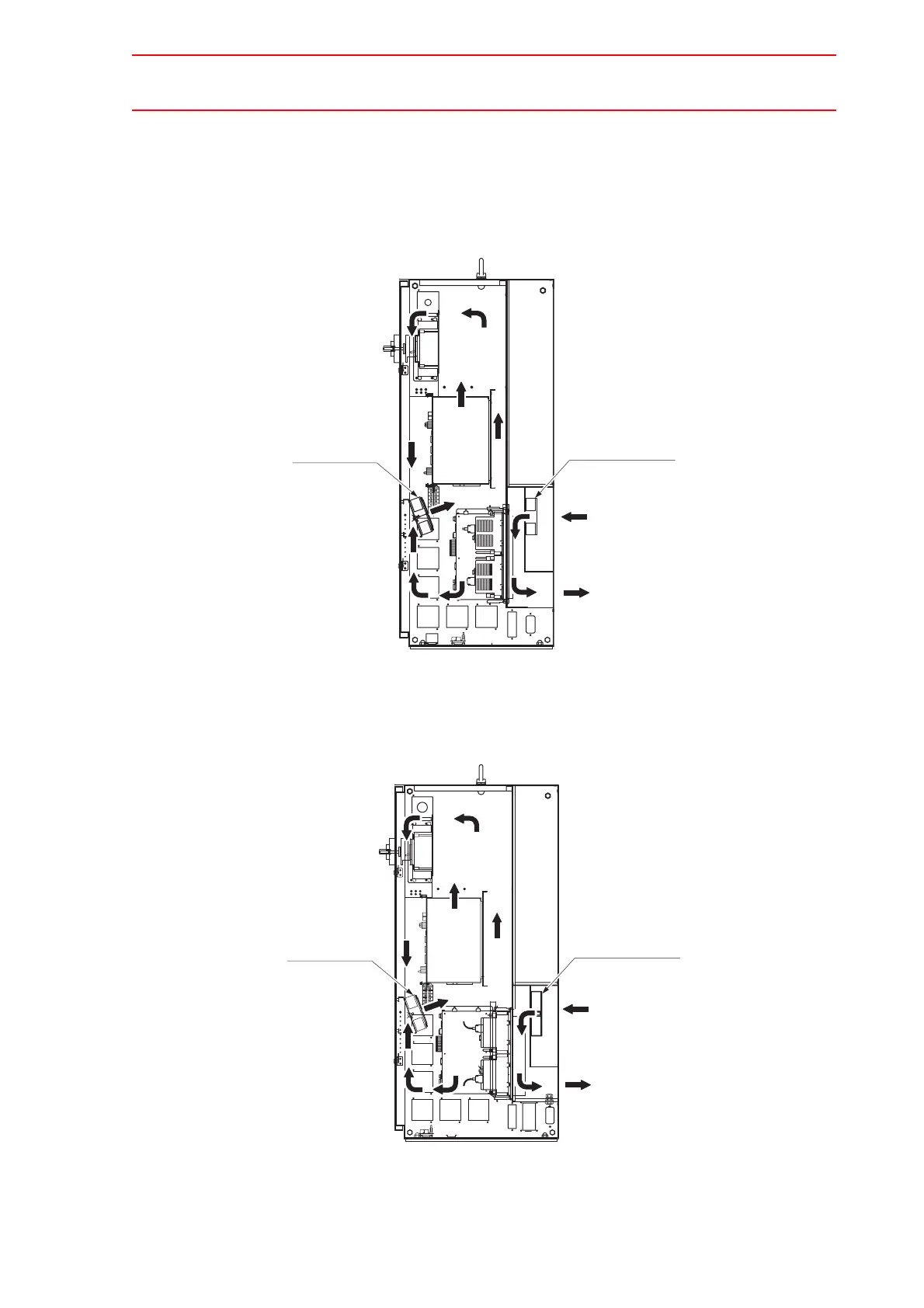

Cooling Configuration (Small capacity)
Cooling Configuration (Medium and Large capacity)
Backside Duct Fan
Air Intake
Air Outlet
Circulation Fan
Backside Duct Fan
Air Intake
Air Outlet
Circulation Fan

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
