6.6.7 SwitchingtoLocalOperation

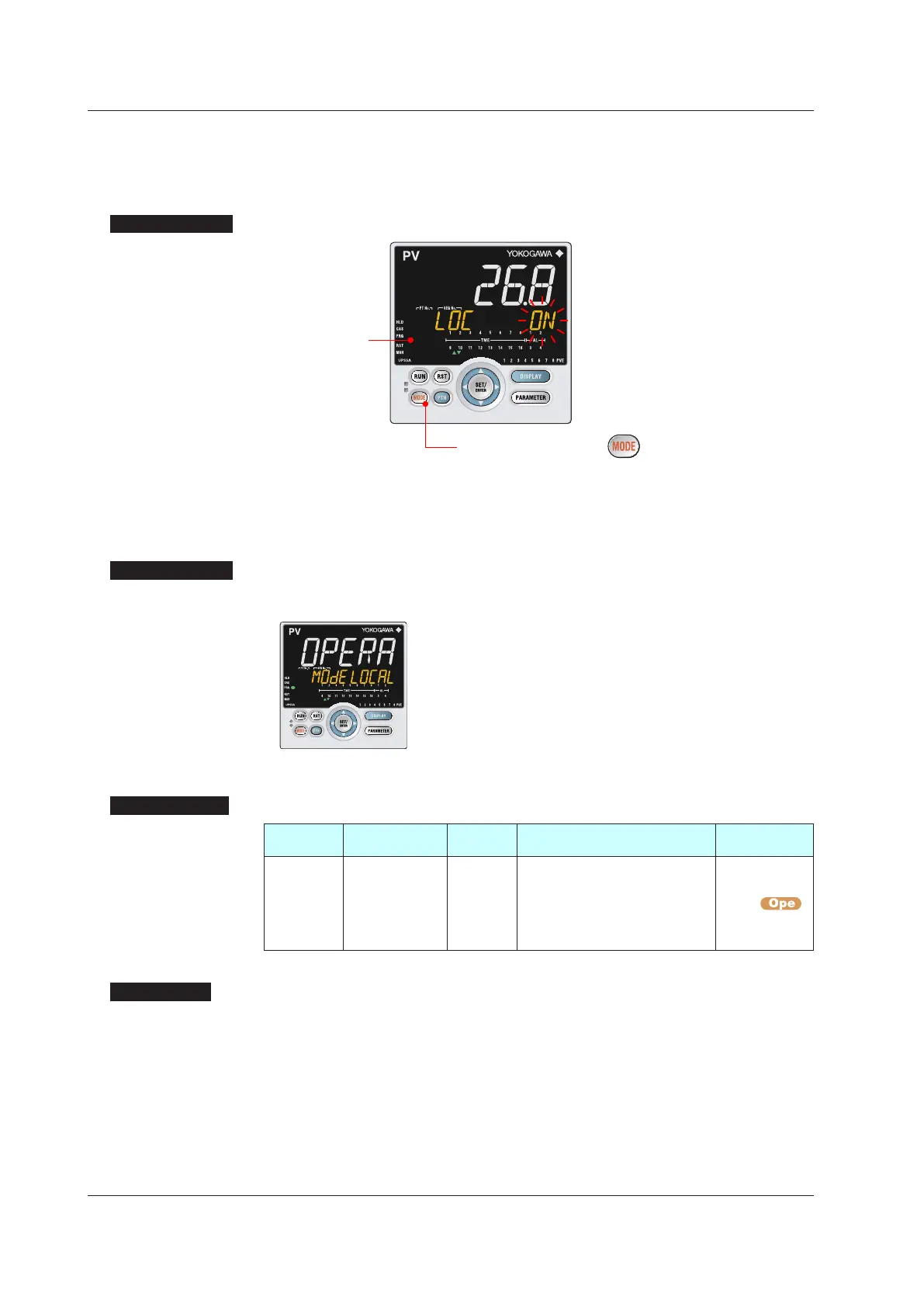

SelectingbyMODEKey
SettingDisplay
Each time you press the key,
Operation modes is switched.
Display MODE LOC (blinking), and press the SET/ENTER key.
HLD, CAS, PRG,
or RST lamp is
unlit in LOC
mode.
(The lamp is unlit
after the switching
operation is
completed.)
SelectingbyOperationModeParameter
SettingDisplay
Parameter Setting Display
Operation Display > PARAMETER key for 3 seconds (to
[MODE] Menu Display) > SET/ENTER key (The setting
parameter is displayed.) > Downarrow key (The setting
parameter is displayed.)
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
MODE Operation mode EASY
RESET: Stop of program operation
PROG: Start of program operation
LOCAL: Start of local-mode
operation
REM: Start of remote-mode
operation
MODE
Description
Local operation is controlled by the local target setpoint (LSP). The local event can be
enabled, while the time event is disabled.
Switching to Local can be performed by any of the following:
(1) MODE key
(2) Operation mode parameter
(3) Contact input
(4) Communication
After switching is performed by the above (1) or (2), the display is switched to SP Display.
► Switch by contact input: 12.1 Setting Contact Input Function
6.6SwitchingOperationModes
