YOKOGAWA UP55A User Manual

6-59
IM 05P02C41-01EN
Monitoring and Control of Regular Operations
6

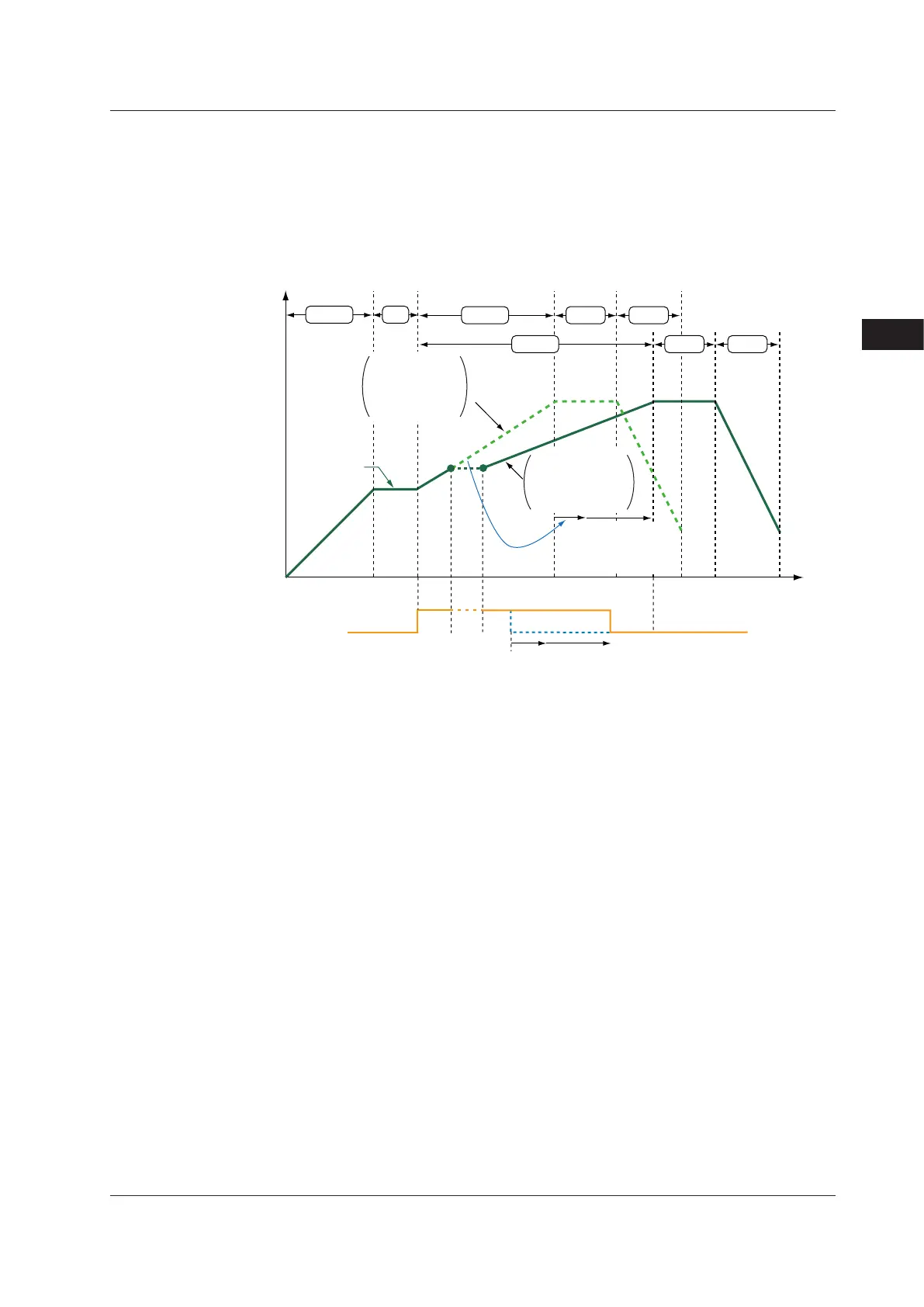

DecreasingSegment-timeinRampSegment
The remaining segment time from the time when the hold state is released can be
changed during the hold operation.
However, the ramp-rate for the changed program setpoint changes.
When the remaining segment time is changed in the ramp segment and the hold state is
released, the program pattern operation restarts from the changed segment time.
When the segment time is increased, the segment time and the time of the time event
are extended by the increased amount of time.
Seg.1
Seg.3 Seg.4
Seg.2
Seg.5
Seg.3 Seg.4 Seg.5
Increased
remaining
segment-time
Time-event increased by a
increment of segment time.
Seg：Segment
Setpoint
Time
Hold interval
（Timer stops）
Time event
TSP：Final target setpoint
On
Off
Time delayed by timer stops
Current
setpoint
Segment pattern
before the
segment time is
increased
Segment pattern
after the segment
time has been
increased
Before
After
IncreasingSegment-timeinRampSegment
The remaining segment time from the time when the hold state is released can be
changed during the hold operation.
However, the ramp-rate for the changed program setpoint changes.
When the remaining segment time is changed in the ramp segment and the hold state is
released, the program pattern operation restarts from the changed segment time.
When the segment time is decreased, the segment time and the time of the time event
are shortened by the decreased amount of time.
6.9ChangingSP,TSP,orRemainingSegment-time(R.TIM)inHOLD-mode
