13.1.6 SettingBar-graphDisplayFunction
Description

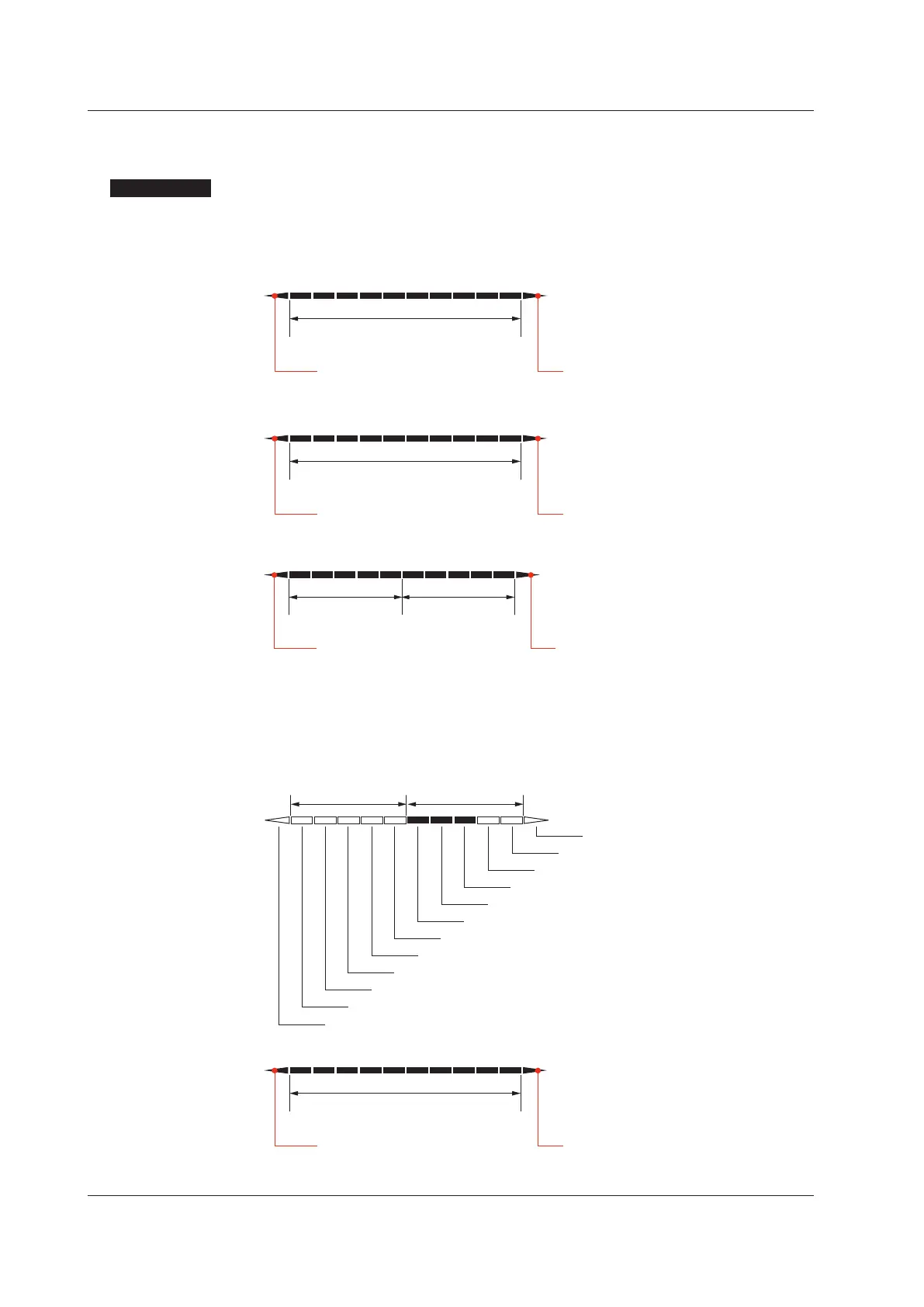

The upper and lower bar-graph displays are provided on the front of the controller.
PV or OUT can be displayed. Data which can be displayed on Bar-graph display are as
follows.
OUT,Output
Displayed by 10% increment of output
Less than 0%
0% 100%
More than 100%
For relay, OFF is equivalent to 0% and ON is equivalent to 100%.
PV,SP,andAnalogInput,TSP
Displayed by 10% increment of
analog input/PV input range
Less than 0%
0% 100%
More than 100%
Deviation
When the deviation display band (BDV) is 10%:
Deviation negative side Deviation positive side
Deviation negative side and deviation positive side are displayed by 10% increment of deviation.
Indication is unlit when SP
– (deviation display band (BDV)) ≤ PV ≤ SP + (deviation display band (BDV)).
Indication is unlit when TSP – (deviation display band (BDV)) ≤ PV ≤ TSP + (deviation display band (BDV)).
Deviation is more than -60%.
0% 100%
Deviation is more than +60%.
Deviation negative side Deviation positive side
IN = TC Type K -270.0 to 1370.0ºC
BDV = 82
ºC (5%), SP = 500.0ºC, PV = 800.0ºC
All indications are unlit when the deviation is 418 ≤ PV ≤ 582ºC.
992.1ºC or more
910.1 to 992.0ºC
828.1 to 910.0ºC
746.1 to 828.0ºC
664.1 to 746.0ºC
582.1 to 664.0ºC
356.0 to 417.9ºC
254.0 to 355.9ºC
172.0 to 253.9ºC
90.0 to 171.9ºC
8.0 to 89.9ºC
to 7.9ºC
ValveOpening
Displayed by 10% increment
of valve opening.
L side
0% 100%
H side
