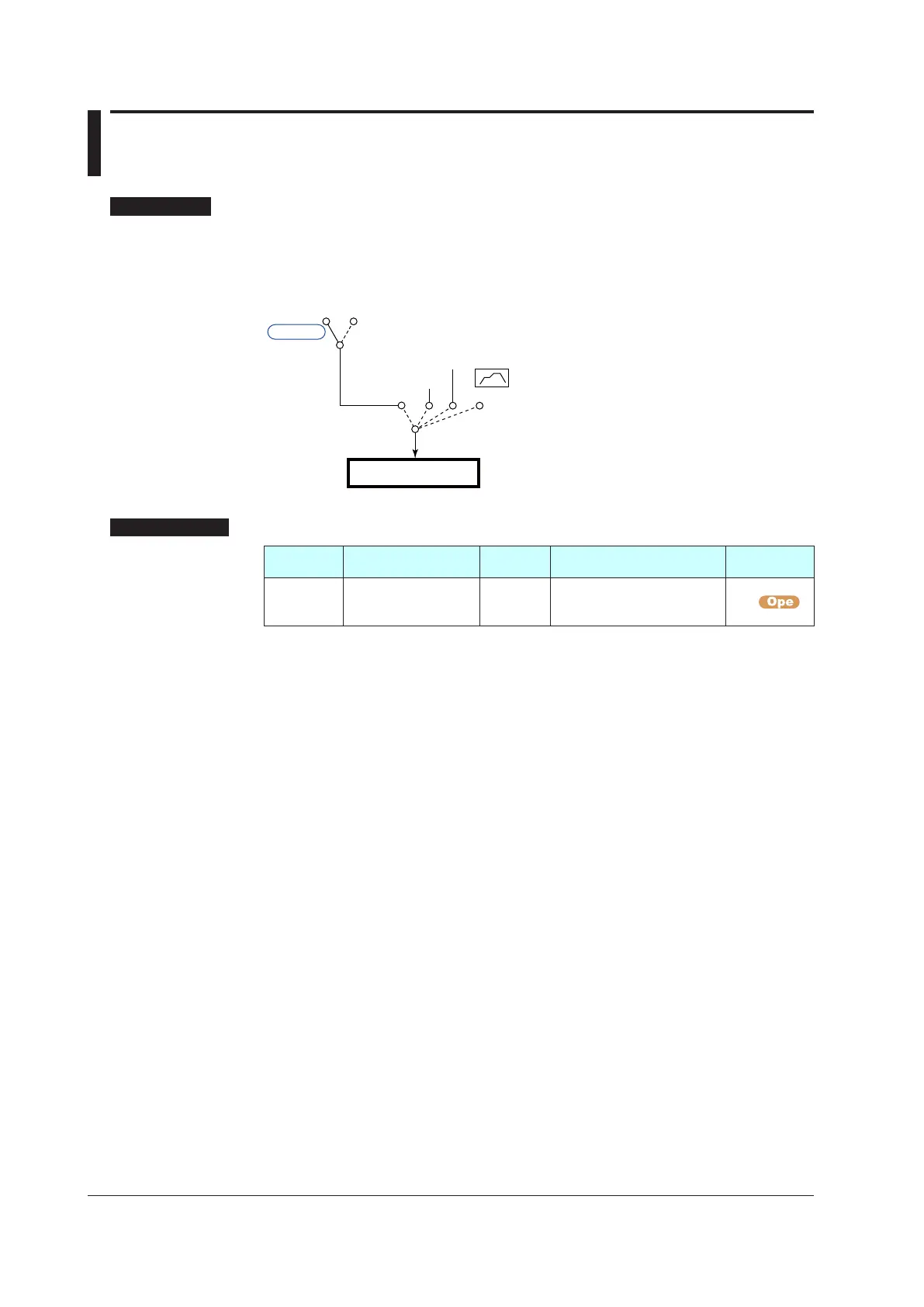

7.5 SettingRemoteInputMethod
Description
There are two methods for remote input: analog input and communication.
Decide which to use among two methods in advance.
Analog input: Remote setting using external analog signal (RSP terminal)
Communication: Remote setting via external communication.
COM
Analog input
LOCAL
RESET
PATTERN
REMOTE
Control computation
RMS
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
RMS Remote input method STD
RSP: Via remote (auxiliary
analog) input
COM: Via communication
SPS
Note1: In Cascade control, the LP2 lamp is lit while the Loop-2 parameter is displayed.
