YOKOGAWA UP55A User Manual

9-41
IM 05P02C41-01EN
Program Pattern Functions
9
9.9 SettingProgramPattern-2Retransmission
Description
The program pattern-2 retransmission function allows creating a program pattern other
than the program pattern used for control on the same timeline and retransmitting it.
With program pattern-2, the starting target setpoint (SSP) and the final target setpoint
(TSP) for each segment can be set and created in the same segment time as that for the
control program.
When coordinated operation is used, the program pattern can be retransmitted to the
slave controller.
The retransmission output types (RTS, O1RS, or O2RS) need to be set to SP2.
The program pattern-2 retransmission function cannot be used when the control mode is
set to cascade control.

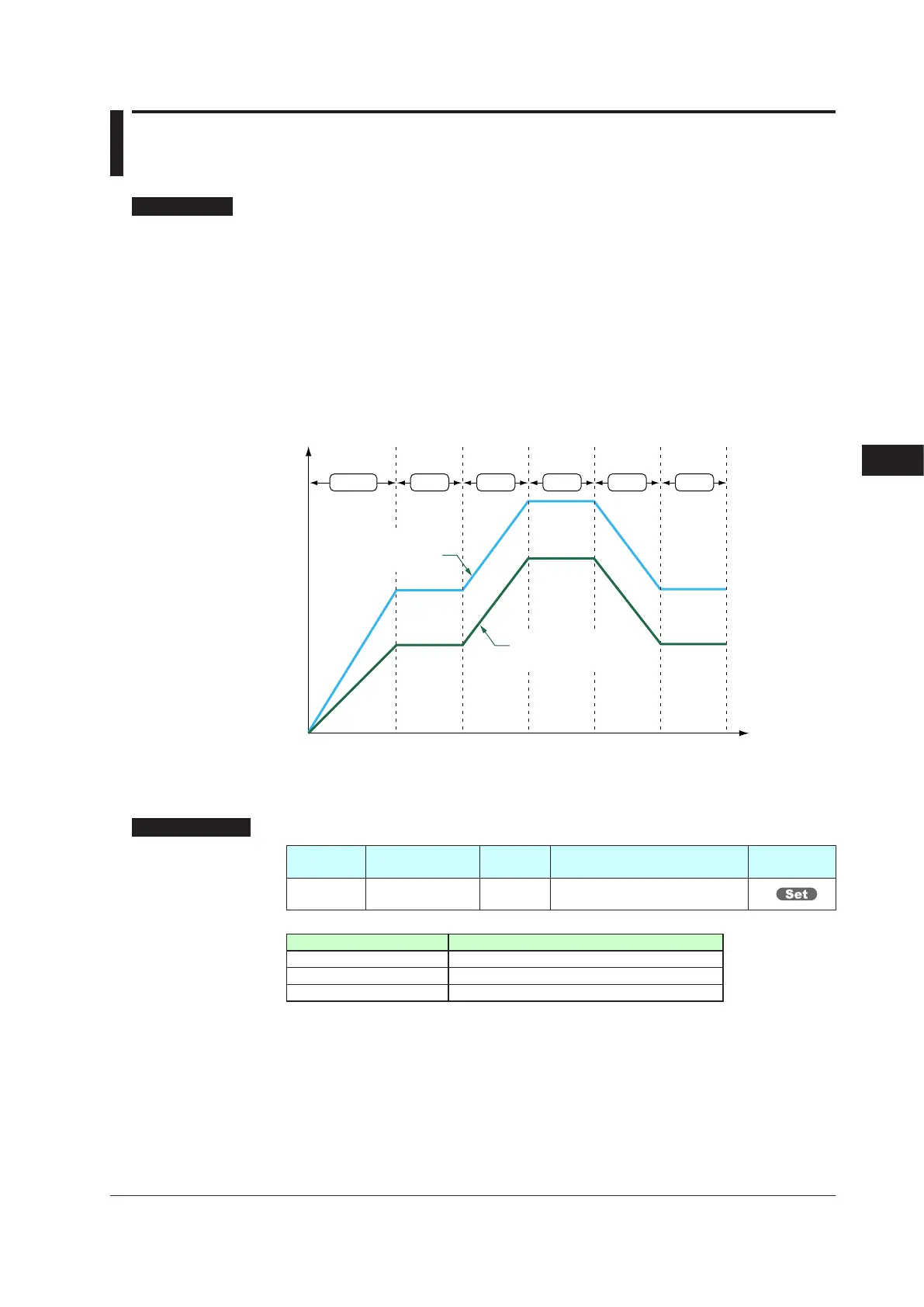

Setpoint
Time
Seg.: Segment
Program pattern for
control
Program pattern for
retransmission
Seg.1 Seg.2 Seg.4 Seg.5 Seg.6Seg.3
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
PT2.G
Program pattern-2
retransmission
STD
OFF: Not used.
ON: used.
CTL
Using Terminal SettingParameter
RET terminals RTS, RTH, RTL
OUT terminals O1RS, O1RH, O1RL
OUT2 terminals O2RS, O2RH, O2RL
The retransmission output type should be set to SP2, irrespective to the terminal used.
► 10.11 Setting Retransmission Output Terminal, Type, and Scales
