13.1.3 RegisteringSELECTDisplay(Upto5Displays)
Description
Registering frequently changed-operation parameters in the SELECT Display of the
Operation Displays will allow you to change parameter settings easily. A maximum of five
Displays can be registered.
Set the D register number of the parameter you wish to register for the registration to the
SELECT Display.
However, the parameters in the following menu cannot be set:
CTL, PV, RSP, AIN2, AIN4, MPV, OUT, HBA, R485, ETHR, PROF, DNET, CC-L, KEY,
DISP, CSEL, KLOC, MLOC, DI.SL, DI.NU, DI.D, ALM, DO, I/O, SYS, INIT, VER, and
LVL.
When each parameter is displayed, the terminal area (E1 to E4) is displayed on Group
display according to the suffix code and optional suffix code.

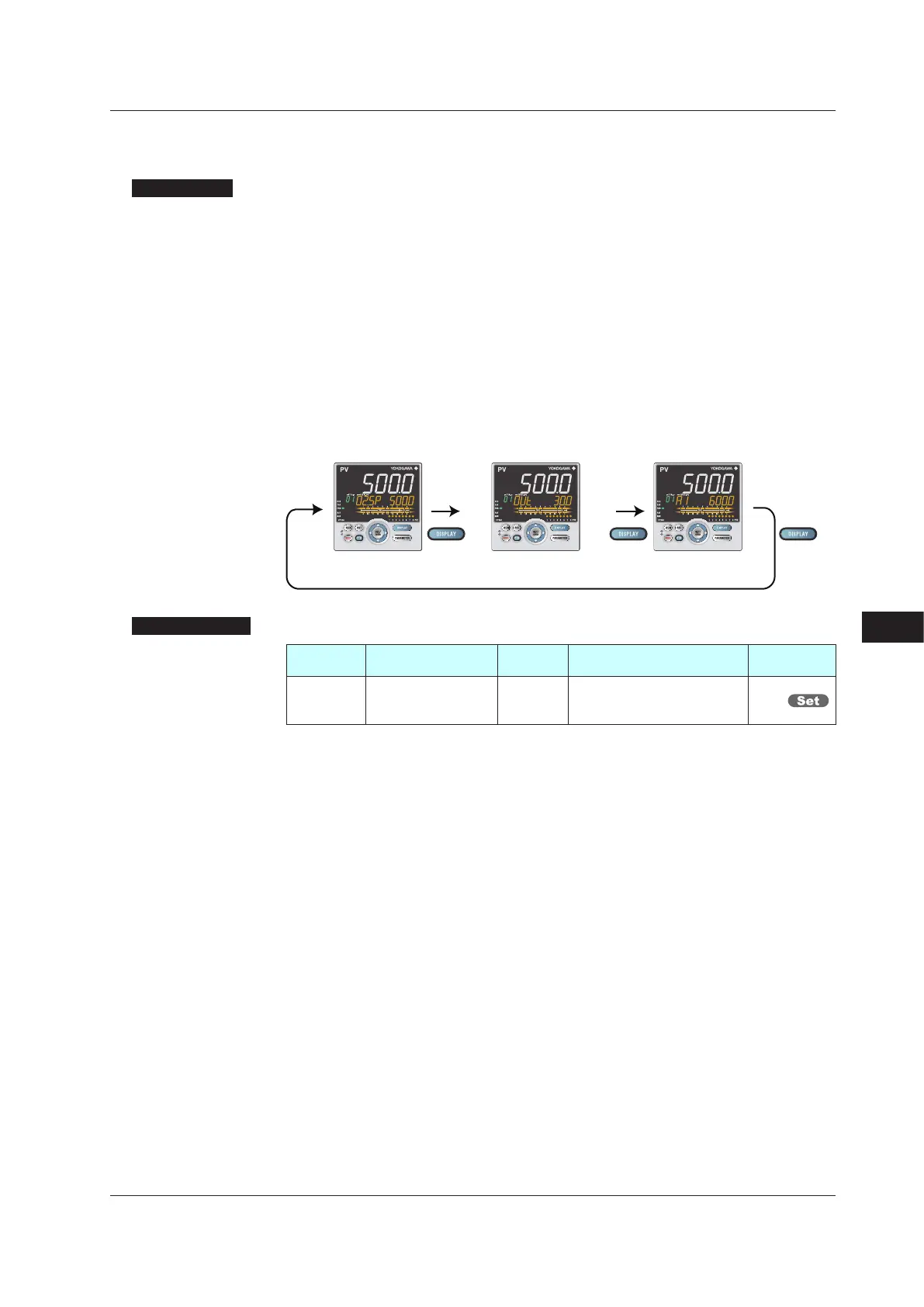

SP Display
• • • • • • • •
Ordinary Operation Displays
OUT Display
Example: Alarm Setpoint Setting Display
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
CS1toCS5
SELECT Display-1 to
-5 registration
STD
OFF: No registration D register
number (2201 to 5000) (6701
to 6710)
CSEL
For D register numbers, see the UTAdvanced Series Communication Interface User’s Manual.
