9-23
IM 05P02C41-01EN
Program Pattern Functions
9
9.6 OperationwithLinkedProgramPatterns
Description
The pattern-link function allows linking multiple patterns and running them as one
program pattern. The start code (STC) setting for the link destination applies to the
starting target setpoint (SST) for the link destination.
When the program starts at the link destination, the start-of-program segment number
(SST) becomes disabled.
Do not specify the nonexistent program pattern for the link. When pattern-link is set
for the segment in the middle of the program pattern, a link to the specified pattern is
established after the set segment.

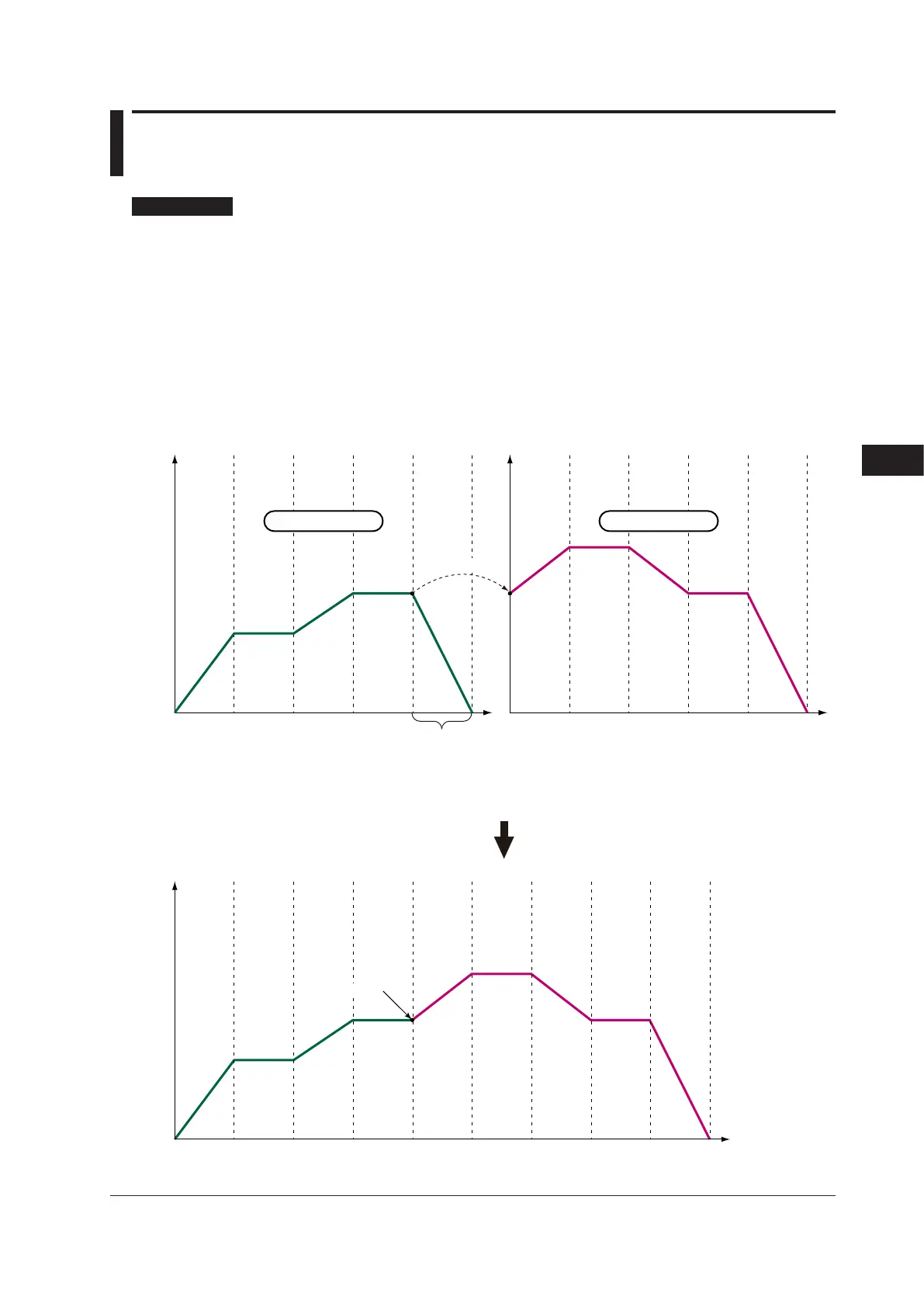

The following shows an example of linking the program patterns 2 and 5 (pattern-link).
However, the start code (STC) is set to SSP start.
Setpoint
Time Time
Seg.: Segment
Seg.1 Seg.2 Seg.3 Seg.4 Seg.5 Seg.1 Seg.2 Seg.3 Seg.4 Seg.5
Pattern-link
Program pattern 1 Program pattern 2
(A) and (B)
Link
(A)
(B)
* Linking the point (A) to the point (B) like the above
example disables the operation for Seg. 5 of the
program pattern 1.
Link the point (A) of the program pattern 1 to the point (B) of the program pattern 2 (pattern-link).
To Next Page
