Control Functions
8.10 SettingSPLimiter
Description

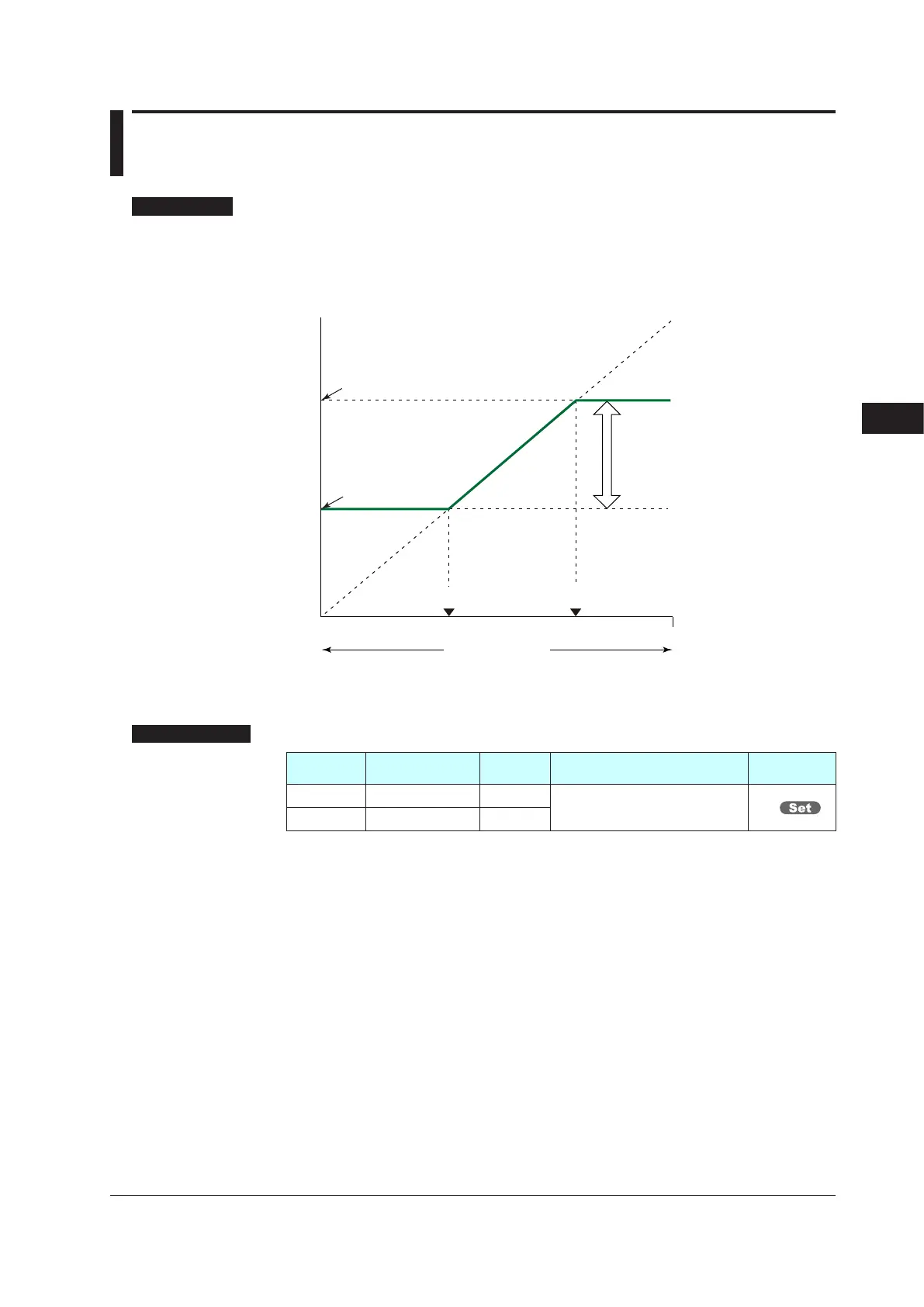

The SP high and low limits can be set to restrict the SP to the operating range between
those limits whether in PROG (program), LOC (local), or REM (remote) mode. They
works to the SP of all SP groups.
In Cascade control, the SP high and low limits can be set for both Loop1 and Loop 2.
This does not work when a program pattern is being created.
0.0
100.0(%)
SPH
Actual SP
SPL
Operating range of actual SP
Setting range
0.0
0.0
High limit of SP
Low limit of SP
â–º SP group: 6.2 Setting Target Setpoint
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
SPH SP high limit STD
0.0 to 100.0% of PV input range
(EU), (SPL<SPH)
MPV
SPL SP low limit STD
Note1: In Cascade control, the LP2 lamp is lit while the Loop-2 parameter is displayed.
